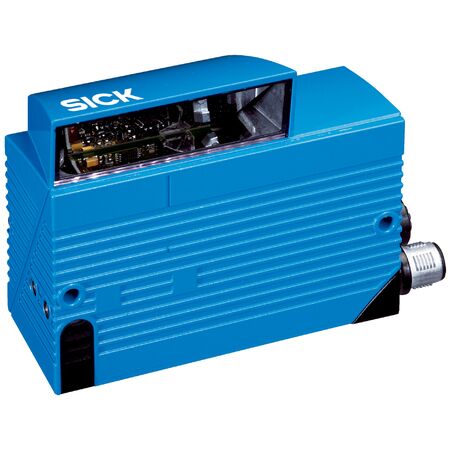

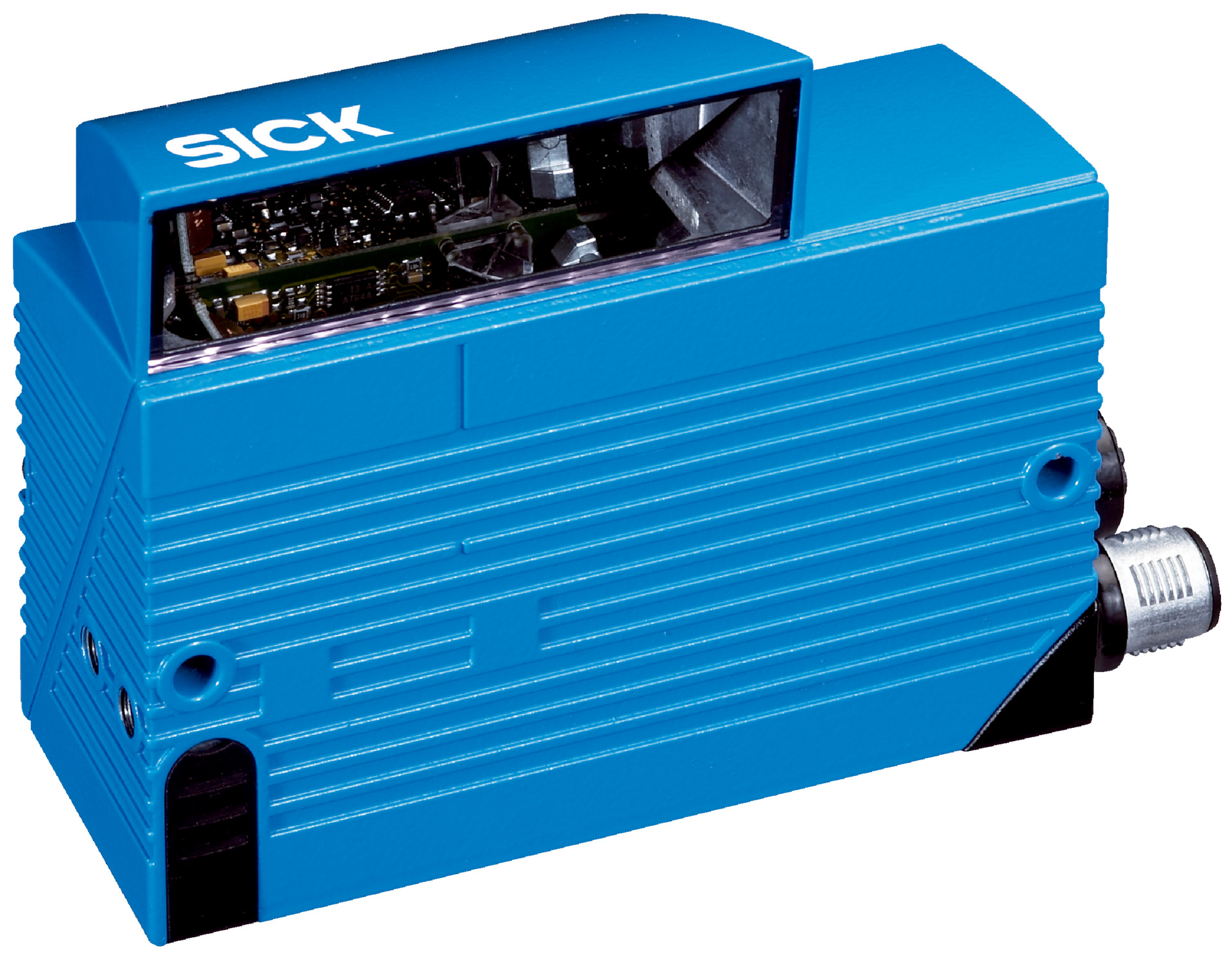

SICK CLV632 Short Range Ethernet Line Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV632 Short Range Ethernet Line Scanner is designed for efficient industrial barcode reading, featuring a high scanning frequency of 400 to 1200 Hz and an IP65 rated aluminum housing for durability. Ideal for logistics, manufacturing, and quality control applications, this scanner reads 1D barcodes with precision, ensuring reliable code verification and traceability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Side 105°
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 256 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 270 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Short range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.2 mm to 0.5 mm)
- High scanning frequency from 400 Hz to 1200 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and up to 5000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 5 W power consumption reduces operational costs
- Durable IP65 housing extends product life and reduces waste
- Supports digital communication reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV632-2831 Short Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
