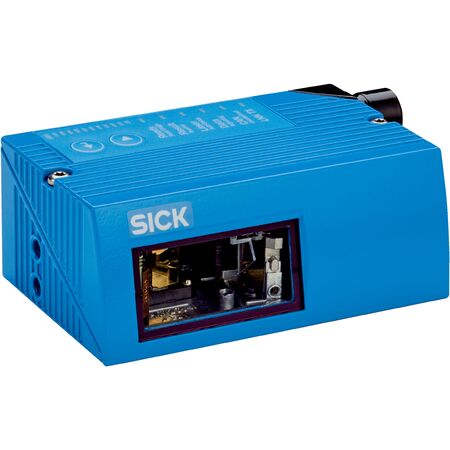

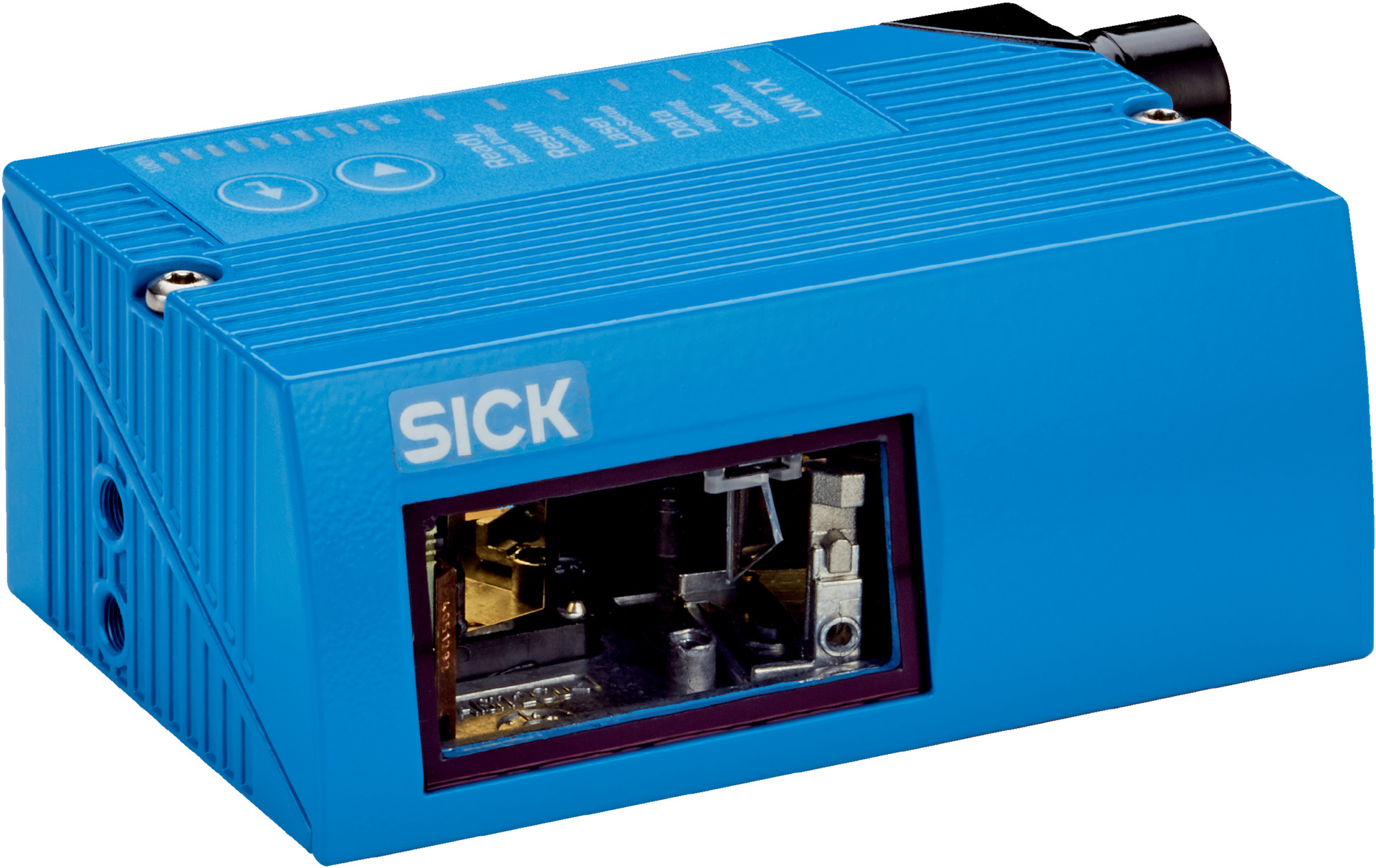

SICK CLV640-0120 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV640-0120 Barcode Scanner is designed for industrial automation, featuring a standard density version with dynamic focus control and an IP65-rated robust aluminum housing. Ideal for logistics and manufacturing process control, it reads 1D barcodes with high resolution from 0.2 mm to 1 mm, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-0120 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1042015
Alternatively Known As: SICK CLV640 Barcode Scanner, SICK Ethernet Line Scanner, Industrial Barcode Reader, SICK CLV640-0120 Laser Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 840 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Standard Density version with dynamic focus control
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution from 0.2 mm to 1 mm
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and up to 5,000 characters
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with electromagnetic compatibility standards to minimize interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV640-0120 line scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high reliability and connectivity.
