SICK CLV640-1000 Raster Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | 60-840 mm Reading Distance | by SICK

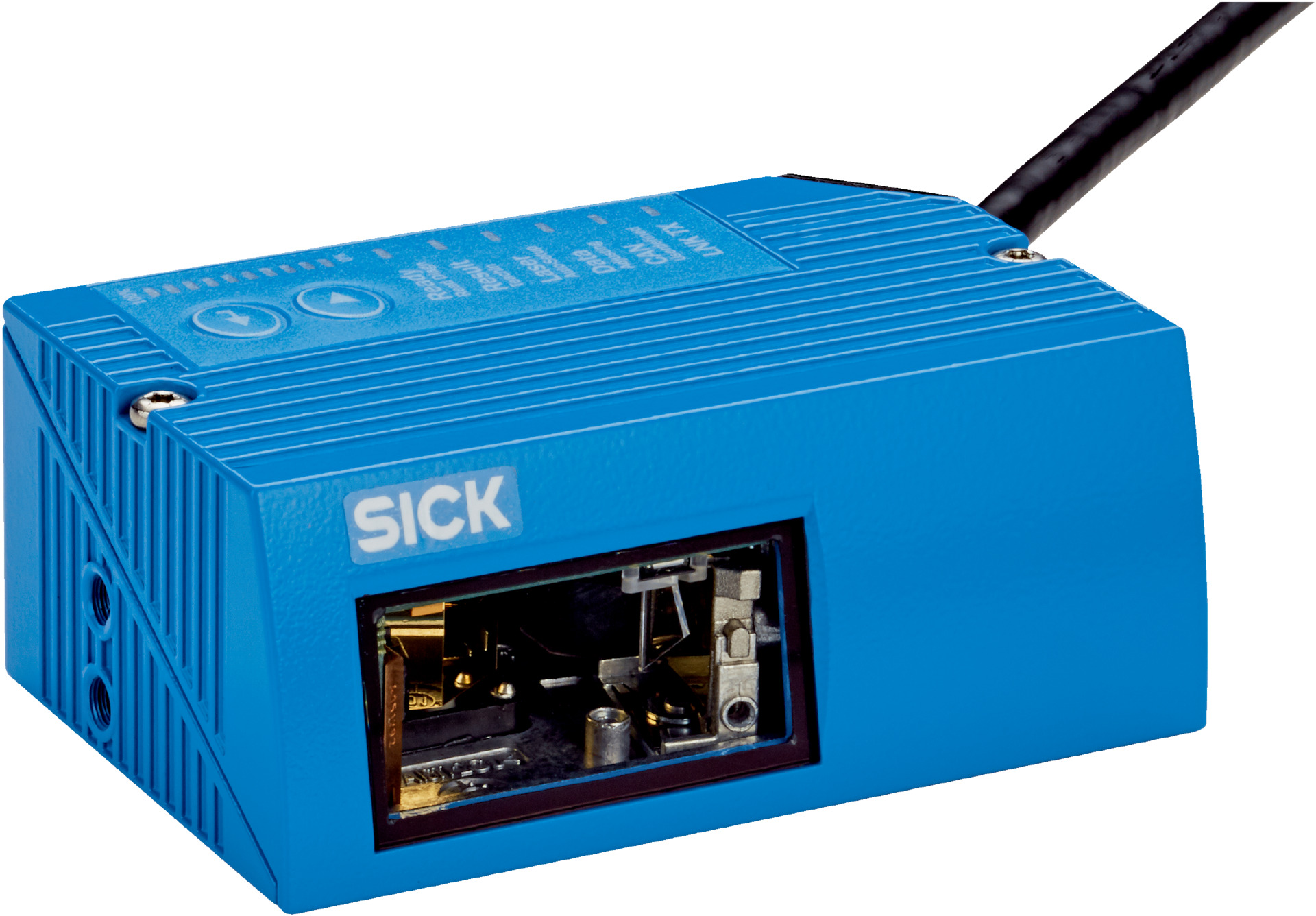

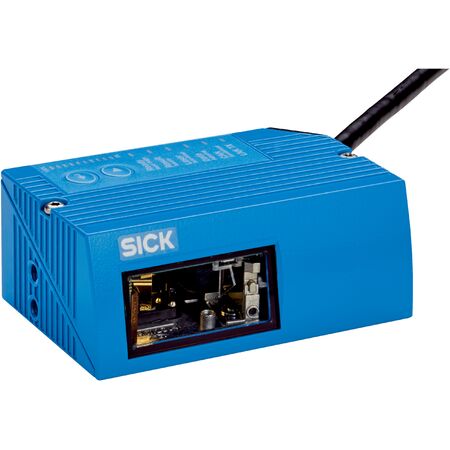

The SICK CLV640-1000 Raster Scanner is designed for efficient industrial barcode scanning, featuring a reading distance of 60 mm to 840 mm and a high scanning frequency of 400 Hz to 1,200 Hz. With its robust aluminum housing and IP65 rating, this scanner is perfect for automated production lines, logistics, and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-1000 Raster Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | 60-840 mm Reading Distance | by SICK
Brand: SICK
SKU: 1042016
Alternatively Known As: SICK CLV640 Raster Scanner, SICK Barcode Scanner, Industrial Barcode Reader, SICK CLV640-1000 Laser Scanner
Technical Specifications
- Sensor type: Raster scanner
- Light source: Visible red laser, 655 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 840 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable codes: All current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Connection: 1 x 15-pin D-Sub HD male connector (0.9 m cable)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (EN 61140)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.32 kg
Key Features
- Standard Density version with dynamic focus control
- Visible red laser light spot at 655 nm
- Reading distance from 60 mm to 840 mm
- High scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light blue housing color (RAL 5012)
- 6 LED optical indicators and acoustic beeper
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 5.5 W reduces energy usage
- Durable aluminum housing extends product lifespan
- Complies with laser safety standards to minimize environmental hazards
Warranty Information
Warranty details available upon request from SICK, typically 1-3 years depending on region and application.
Available Now
The SICK CLV640-1000 Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications in manufacturing and logistics.
