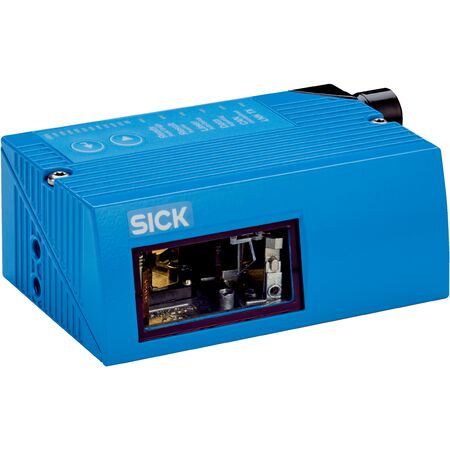

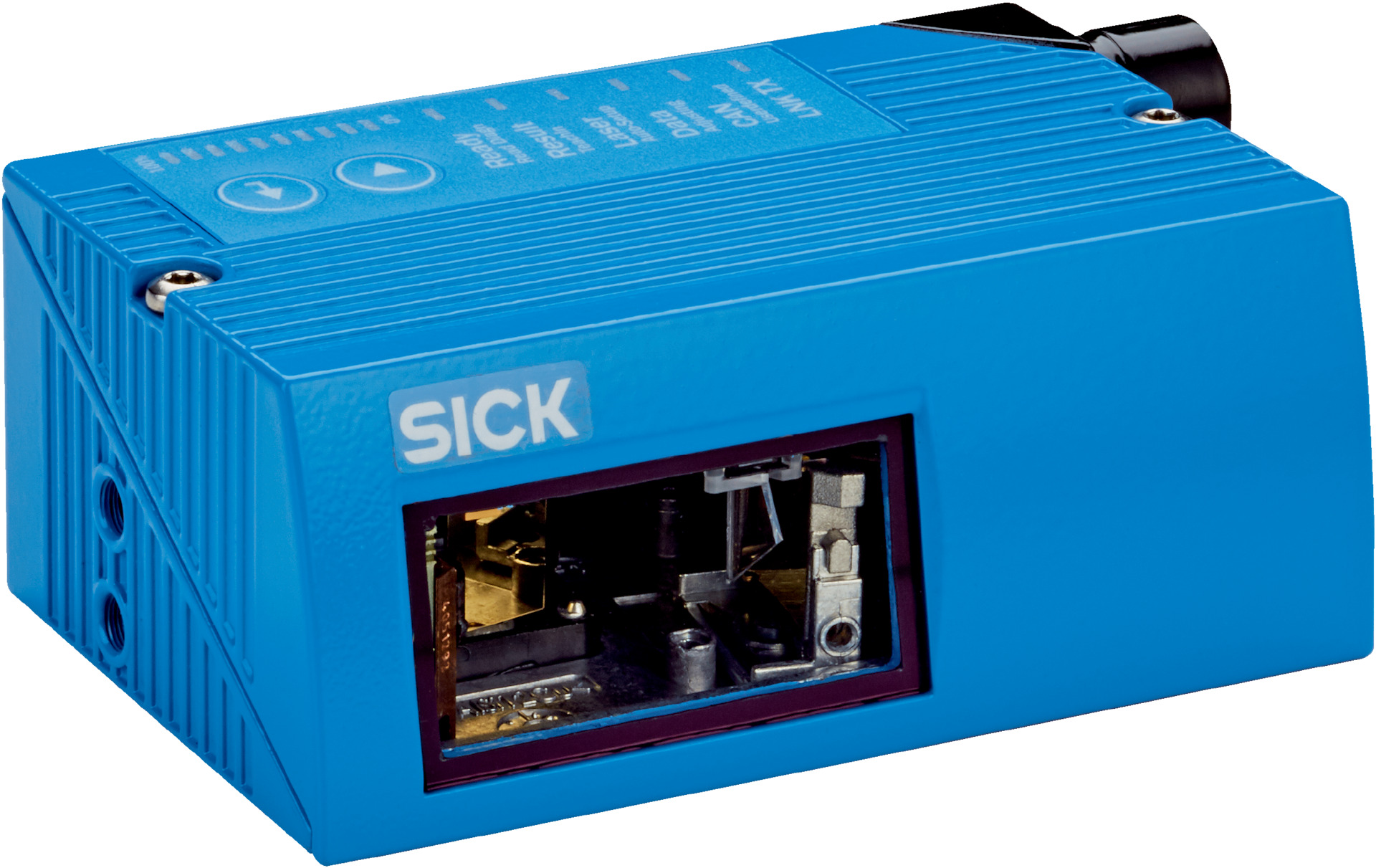

SICK CLV640-1120 Raster Scanner | Ethernet Connection | IP65 Rated | Dynamic Focus Control | by SICK
The SICK CLV640-1120 raster scanner is designed for industrial barcode scanning, featuring a high scanning frequency of 400 Hz to 1200 Hz and dynamic optical focus control. With an IP65 rating and robust aluminum housing, it's perfect for logistics, manufacturing, and automation applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-1120 Raster Scanner | Ethernet Connection | IP65 Rated | Dynamic Focus Control | by SICK
Brand: SICK
SKU: 1042017
Alternatively Known As: SICK CLV640 Raster Scanner, SICK Ethernet Barcode Scanner, SICK 1D Code Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Laser class: Class 2 (EN 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 840 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 1 mm
- Raster height: 15 mm at 8 lines, 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and more
- Number of codes per scan: 1 to 20 (Standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and beeper/buzzer
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Standard density raster scanner with dynamic optical focus control
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution from 0.2 mm to 1 mm
- Laser class 2 with visible red light spot at 655 nm wavelength
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports microSD memory card for configuration
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation barcode scanning
- Logistics and warehouse code reading
- Manufacturing line code verification
- Label and package code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable IP65 housing extends product life and reduces waste
- Supports digital communication reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV640-1120 raster scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
