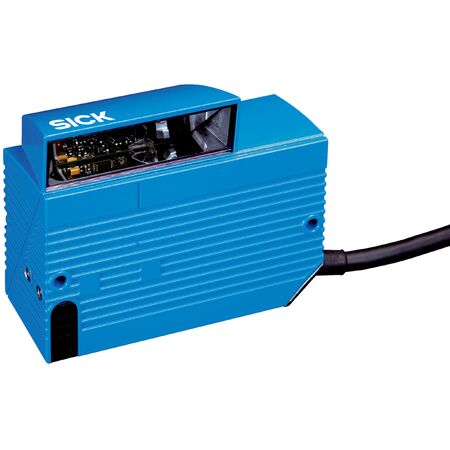

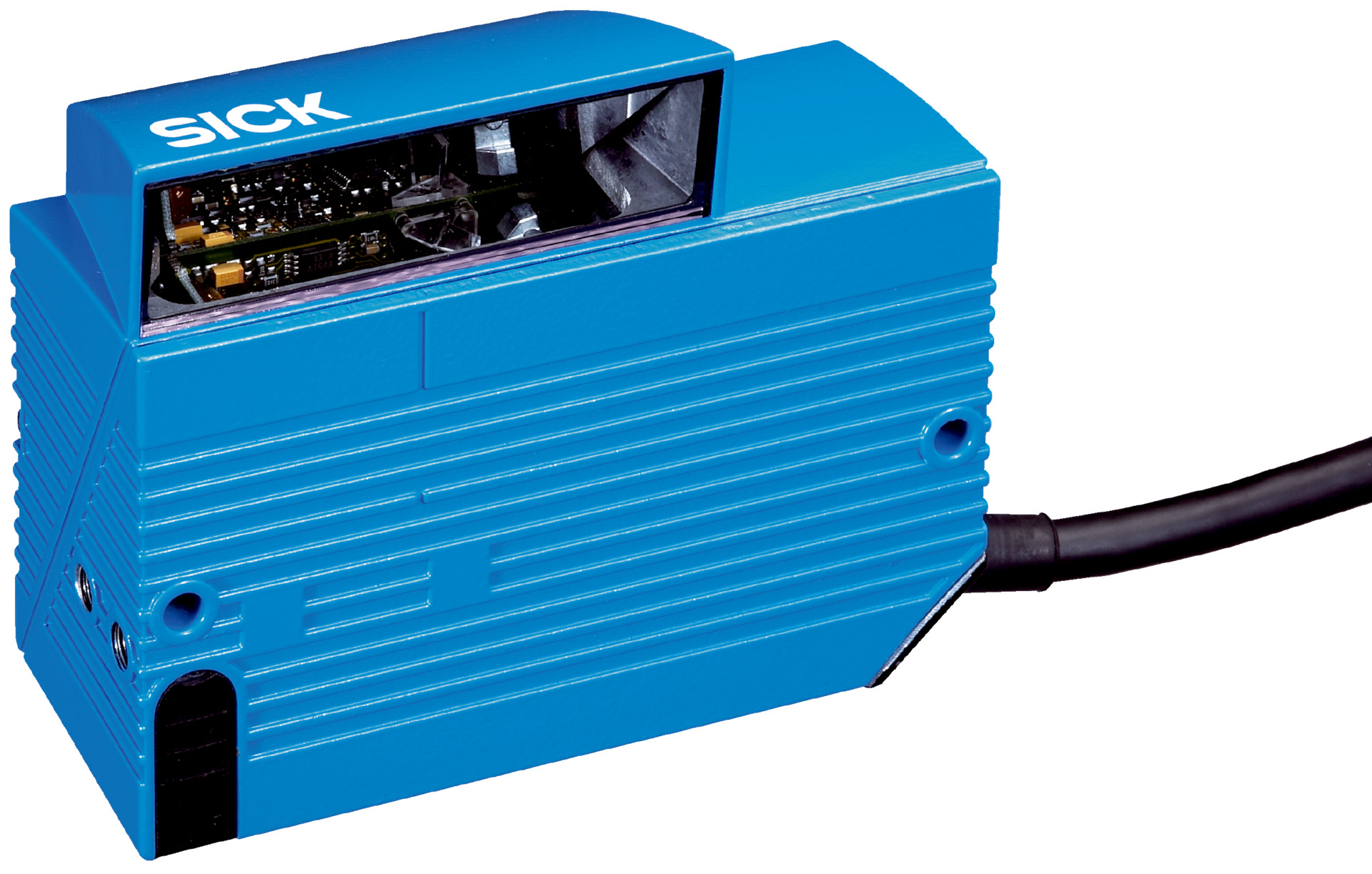

SICK CLV640-2000 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV640-2000 Barcode Scanner is designed for industrial barcode scanning with a standard density version and dynamic focus control. Ideal for automated production lines and logistics, it features a side reading field of 105° and supports all current 1D barcode types. With an IP65 rated aluminum housing, this scanner ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-2000 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1042018
Alternatively Known As: SICK CLV640-2000 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, SICK CLV640
Technical Specifications
- Version: Standard Density
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 738 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Standard Density version with dynamic focus control
- Side reading field of 105°
- Visible red laser light source at 655 nm
- Circular light spot with laser class 2 compliance
- Reading distance from 44 mm to 738 mm
- Scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing
- 6 LED optical indicators and acoustic beeper
- Configuration via SOPAS ET software
- Optional MicroSD memory card support
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
Warranty Information
Warranty details available upon request from SICK; typically includes manufacturer’s standard warranty.
Available Now
The SICK CLV640-2000 Standard Density Line Scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
