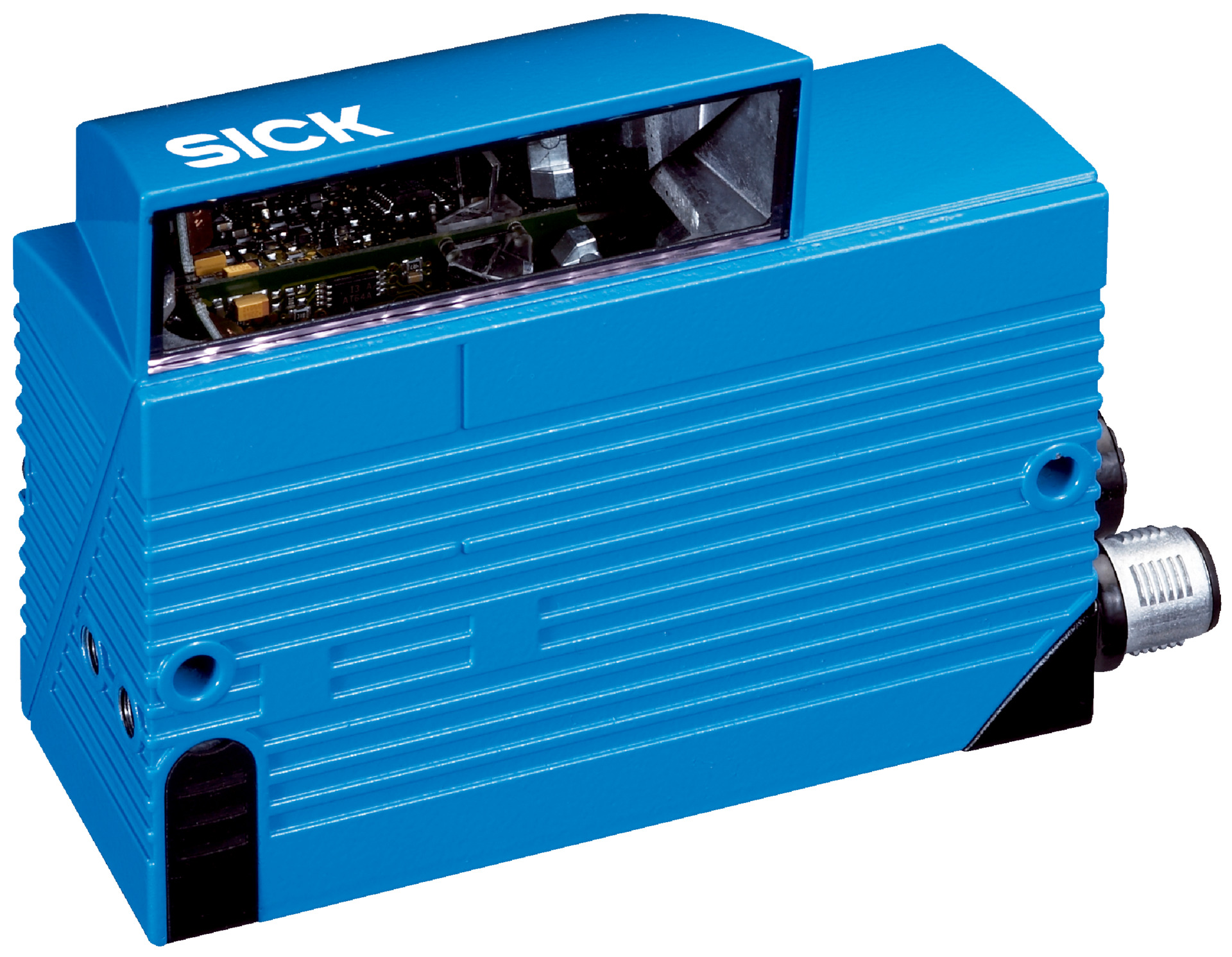

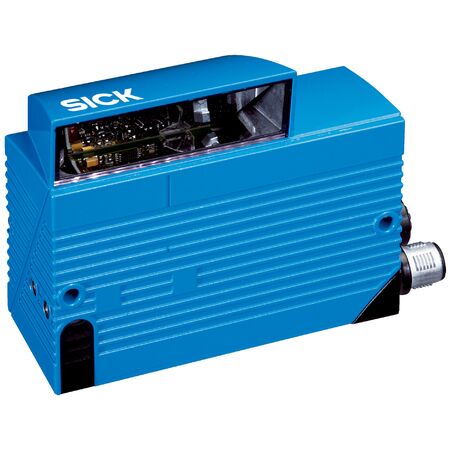

SICK CLV640-2120 Barcode Scanner | Standard Density | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV640-2120 Barcode Scanner is designed for industrial automation, featuring a standard density version with dynamic focus control and an Ethernet connection. Ideal for logistics and manufacturing, it reads all current 1D barcode types with high resolution and offers a robust aluminum housing with an IP65 rating for durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-2120 Barcode Scanner | Standard Density | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1042019
Alternatively Known As: SICK CLV640-2120 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Laser class: 2 (IEC 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 738 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 270 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Standard Density version with dynamic focus control
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Side reading field of 105° with circular laser spot
- Laser class 2 compliant with IEC 60825-1 standards
- High scanning frequency from 400 Hz to 1,200 Hz
- Reads all current 1D barcode types with high resolution from 0.2 mm to 1 mm
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- Supports microSD memory card for configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 5.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV640-2120 line scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high reliability and multiple interface options.
