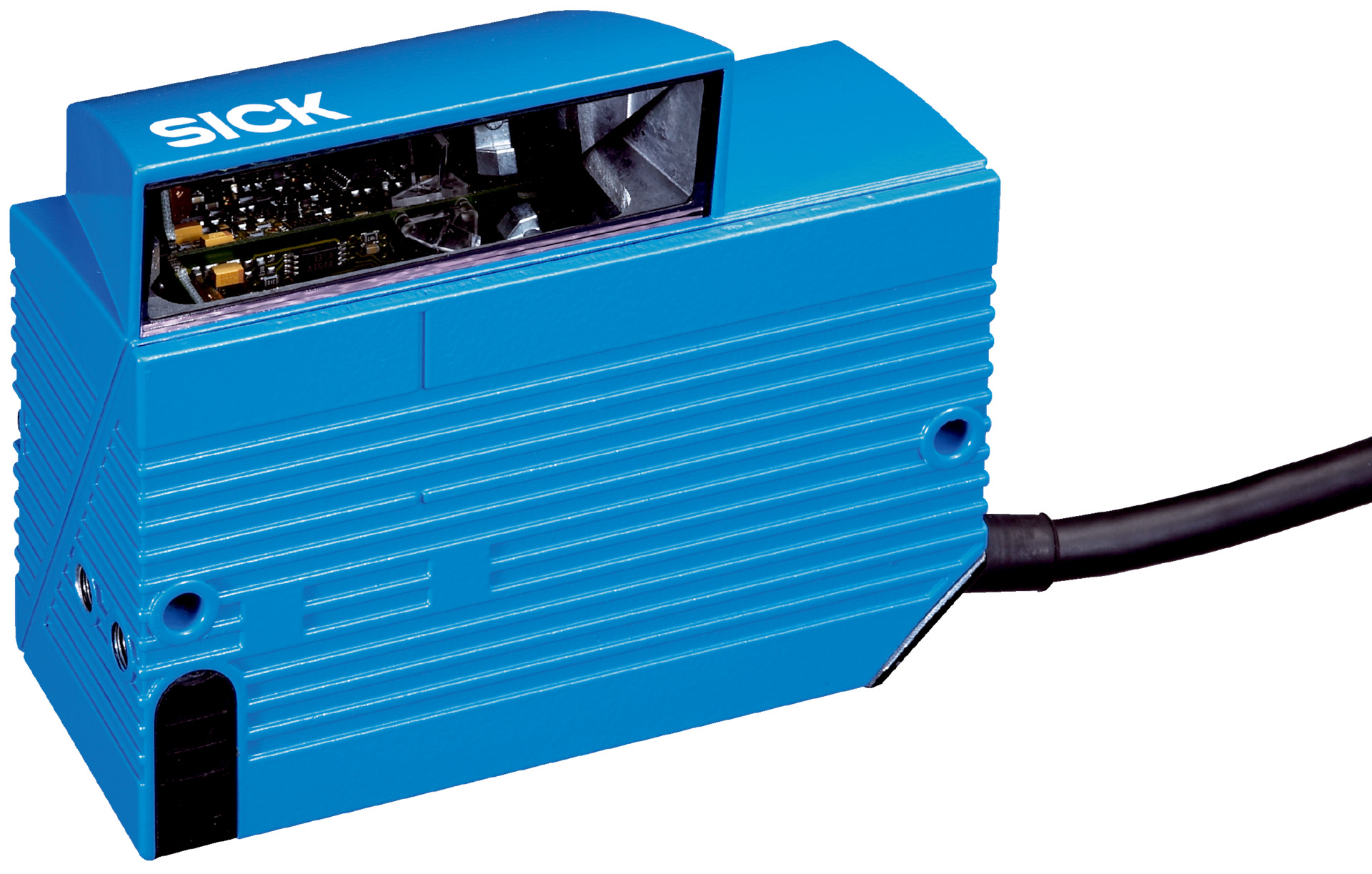

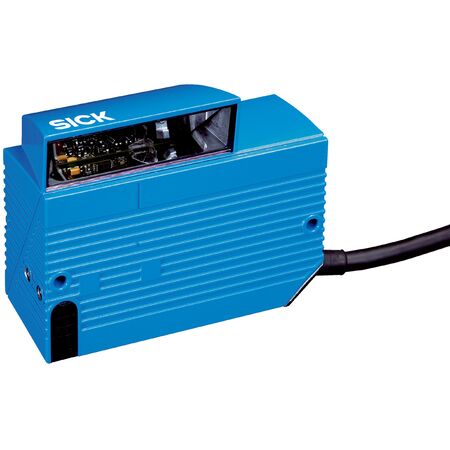

SICK CLV640-3000 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV640-3000 Barcode Scanner is designed for industrial barcode scanning with a standard density version and dynamic focus control. Ideal for automated production lines and logistics, it features a side reading field of 105° and supports all current 1D barcode types. With an IP65 rated aluminum housing, this scanner ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-3000 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1042020
Alternatively Known As: SICK CLV640-3000 Barcode Scanner, SICK Raster Scanner, Industrial Barcode Reader, SICK Laser Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 738 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Raster height and number of lines at distance: 15 mm, 8 lines at 185 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 340 g with connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Standard Density version with dynamic focus control
- Side reading field of 105°
- Visible red laser light spot at 655 nm
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021
- Reading distance from 44 mm to 738 mm
- Scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV640-3000 Standard Density Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
