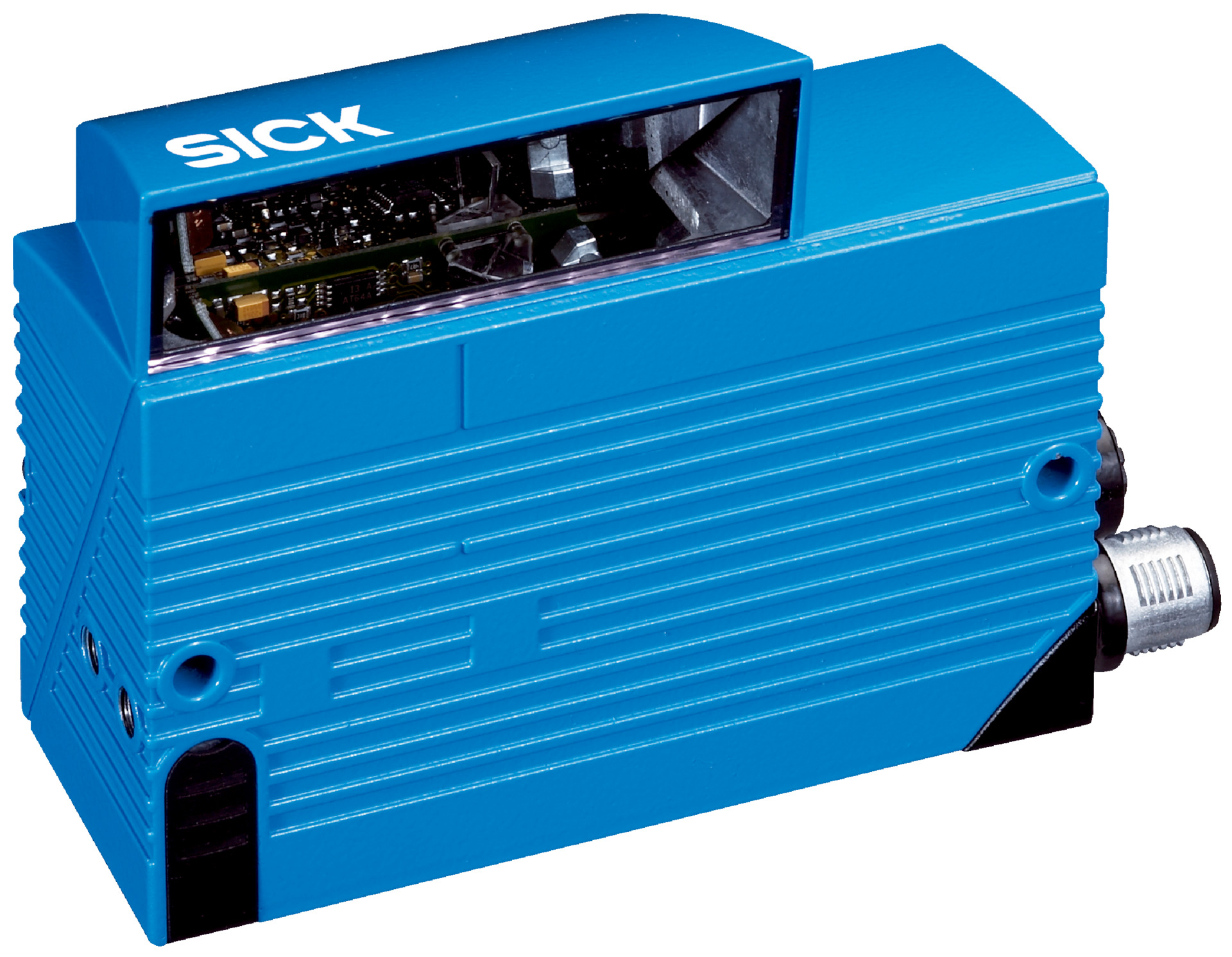

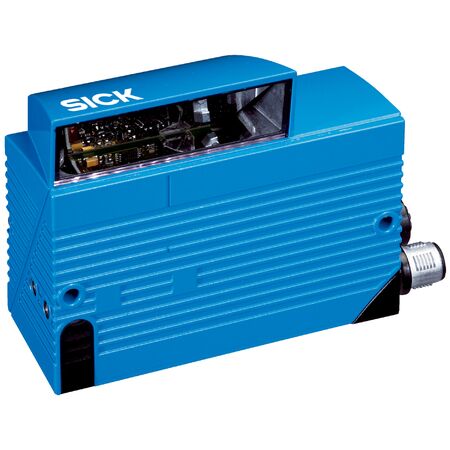

SICK CLV640-3120 Industrial Barcode Scanner | Ethernet Connection | IP65 Rated | Dynamic Focus Control | by SICK
The SICK CLV640-3120 industrial barcode scanner features a standard density version with dynamic focus control and an Ethernet connection for seamless integration. With a side reading field of 105° and a reading distance of 44 mm to 738 mm, it's perfect for industrial automation, logistics, and manufacturing process control. Built to last with an IP65 rated aluminum housing, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-3120 Industrial Barcode Scanner | Ethernet Connection | IP65 Rated | Dynamic Focus Control | by SICK
Brand: SICK
SKU: 1042021
Alternatively Known As: SICK Raster Scanner, CLV640 Barcode Reader, Industrial Barcode Scanner, Ethernet Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Laser class: 2 (EN 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 738 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Raster height and lines: 15 mm, 8 lines at 185 mm distance
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 270 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Standard Density version with dynamic focus control
- Ethernet connection with TCP/IP support
- Side reading field of 105°
- Visible red laser light source at 655 nm
- Circular light spot with laser class 2 compliance
- Reading distance from 44 mm to 738 mm
- Scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types
- Multiple interface options including PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Operating temperature range 0 °C to +40 °C
- EMC compliant with EN 61000-6-3 and EN 61000-6-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and network systems to ensure compliance with safety and operational standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 5.5 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK CLV640-3120 raster scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
