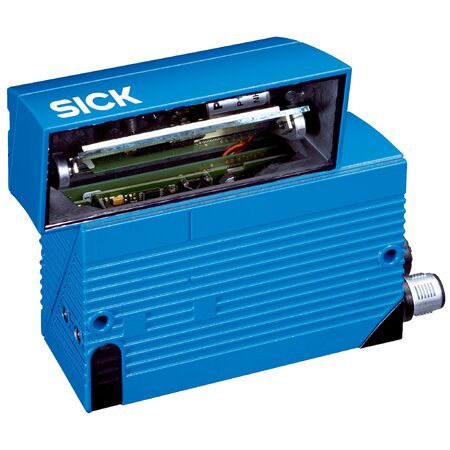

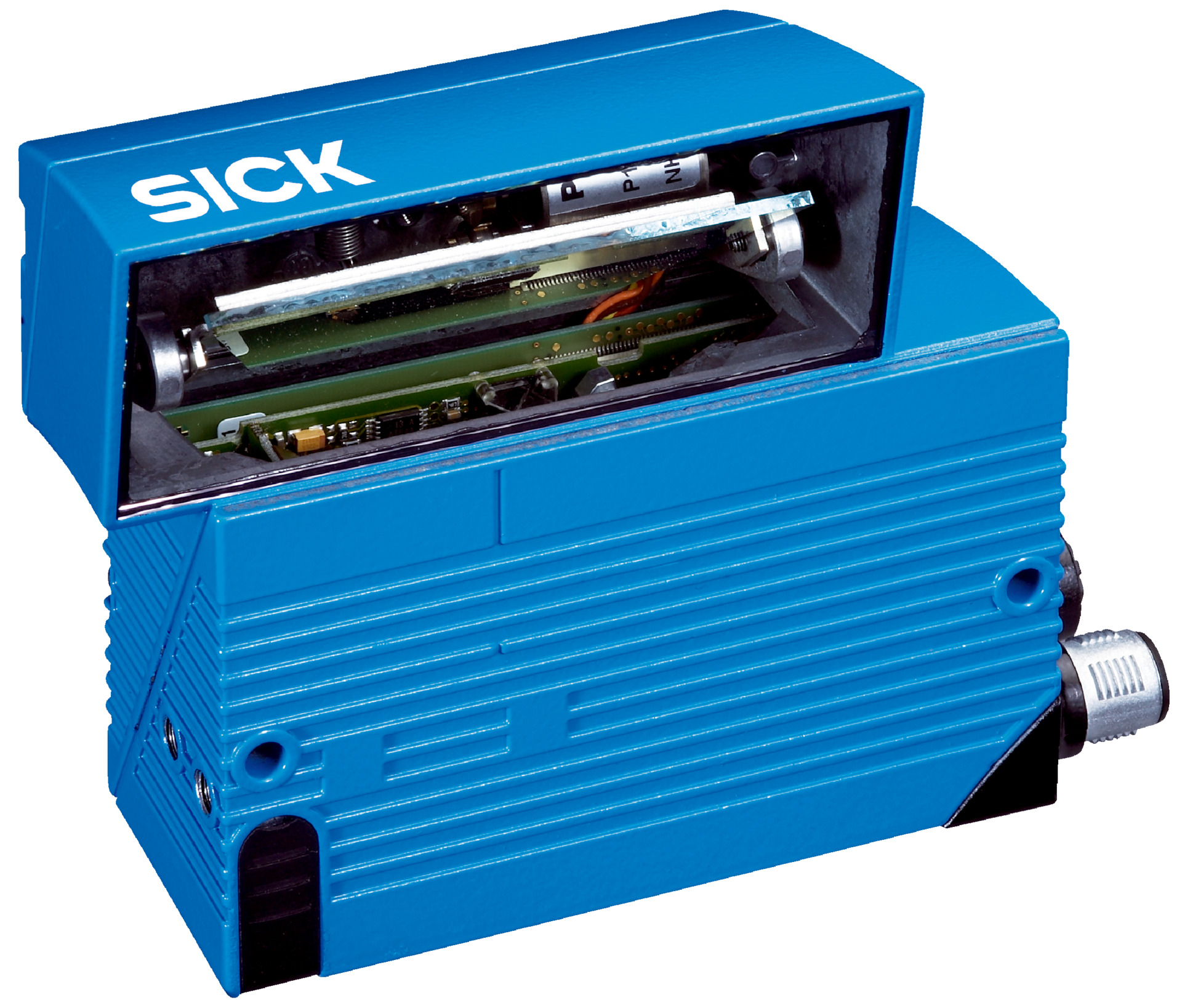

SICK CLV640-6120 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV640-6120 barcode scanner features a standard density version with dynamic focus control, making it ideal for industrial automation and logistics applications. With an oscillating mirror sensor and a reading distance of 45 mm to 755 mm, it supports all current 1D barcode types, ensuring efficient scanning in manufacturing and quality control processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640-6120 Barcode Scanner | Standard Density | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1042023
Alternatively Known As: SICK CLV640 Barcode Scanner, Oscillating Mirror Barcode Reader, Industrial Barcode Scanner, Ethernet Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet and multiple industrial interfaces
- Reading field: Oscillating mirror with dynamic focus control
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 755 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 1 mm
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, Pharmacode, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Standard density version with dynamic focus control
- Oscillating mirror sensor type with adjustable oscillation frequency and angle
- Visible red laser light source (655 nm) with circular light spot
- Reading distance from 45 mm to 755 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types including GS1 DataBar and Pharmacode
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0 °C to +40 °C
- Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV640-6120 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
