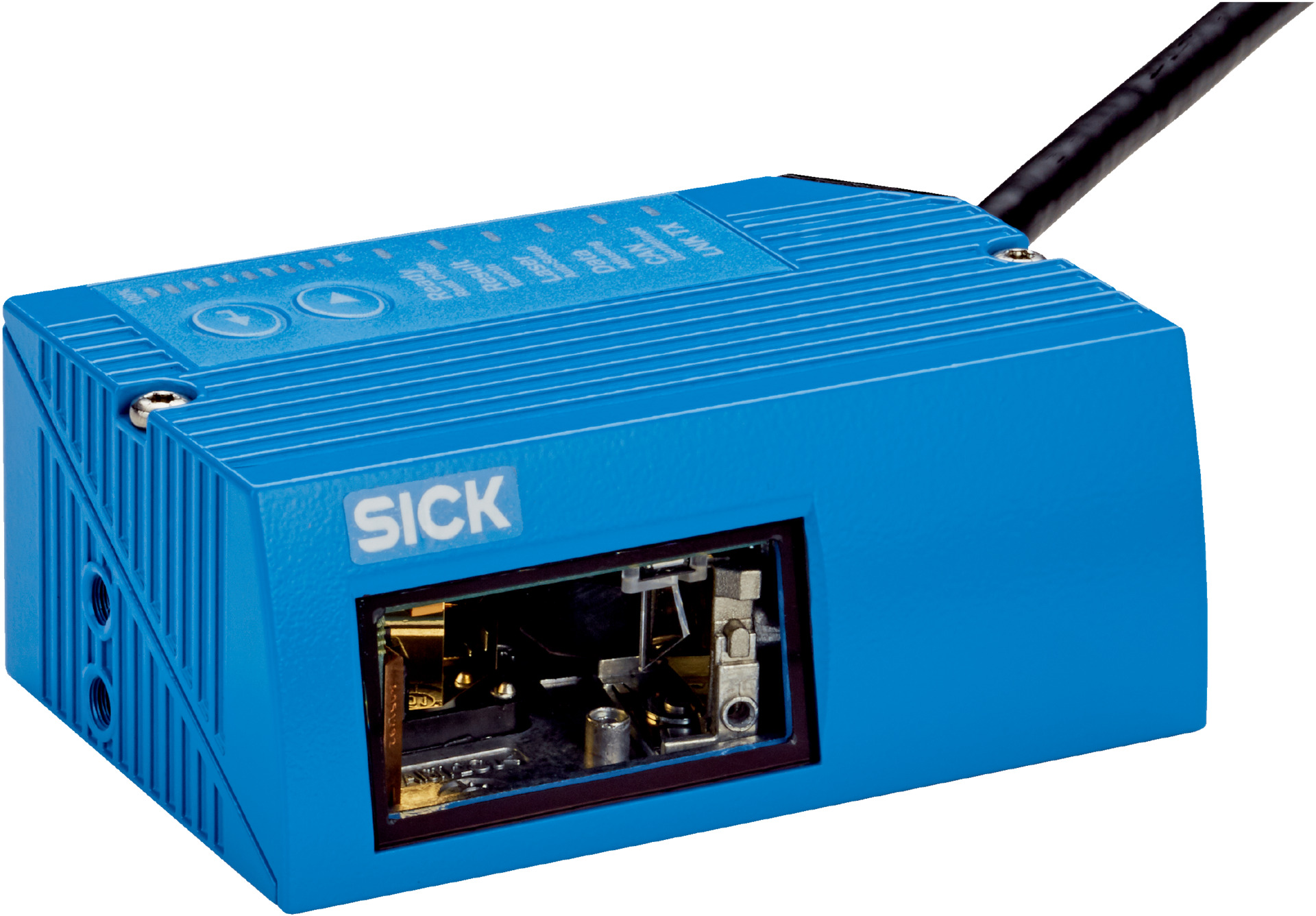

SICK CLV640 Barcode Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | 60-840 mm Reading Distance | by SICK
The SICK CLV640 Barcode Scanner is designed for industrial barcode scanning, featuring an IP65 rated aluminum housing and a high scanning frequency of 400 to 1200 Hz. With a reading distance of 60 mm to 840 mm, it's perfect for automated production lines, logistics, and quality control applications. This scanner supports all current 1D barcode types, ensuring versatility and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV640 Barcode Scanner | IP65 Rated | 400-1200 Hz Scanning Frequency | 60-840 mm Reading Distance | by SICK
Brand: SICK
SKU: 1042014
Alternatively Known As: SICK CLV640 Barcode Scanner, SICK Line Scanner CLV640, Industrial Barcode Reader CLV640
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Laser class: Class 2, compliant with IEC 60825-1:2014 and FDA 21 CFR 1040.10
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 840 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.32 kg
Key Features
- Standard Density version with dynamic focus control
- Visible red laser light spot at 655 nm, circular shape
- Reading distance from 60 mm to 840 mm
- High scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- 6 LED optical indicators and acoustic beeper for status feedback
- MicroSD memory card support for configuration
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient laser scanning technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

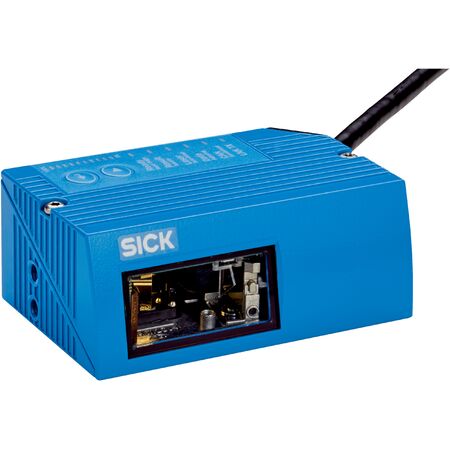

The SICK CLV640-0000 Standard Density Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
