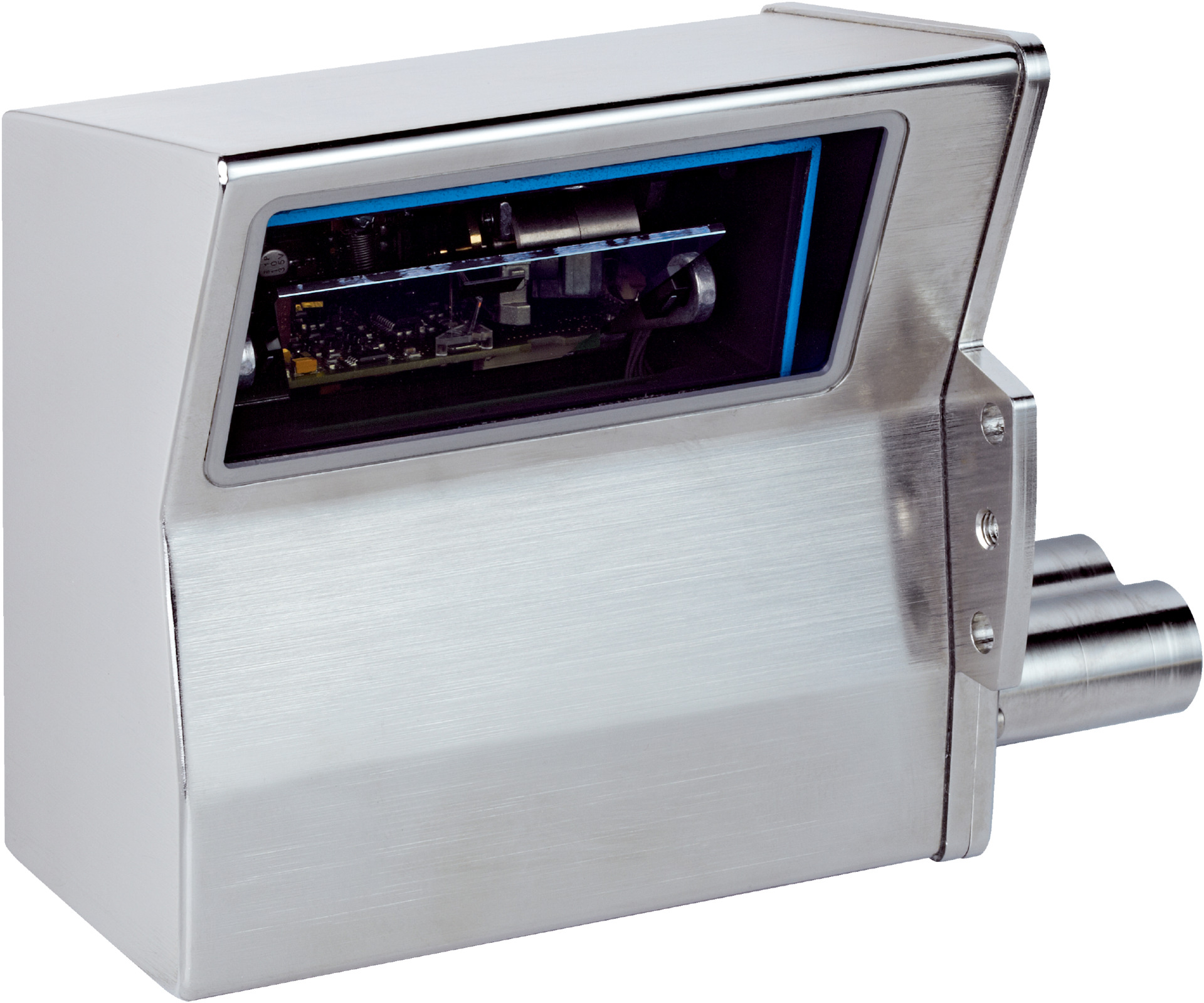

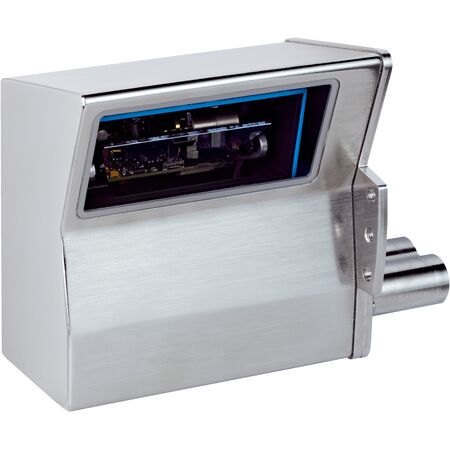

SICK CLV640 Barcode Scanner | IP69K Rated | Dynamic Focus Control | 400-1200 Hz Scanning | by SICK
The SICK CLV640 Barcode Scanner is designed for industrial automation, featuring an IP69K rating and dynamic focus control with a visible red laser light spot. With a reading distance of 47 mm to 798 mm and a scanning frequency of 400 Hz to 1,200 Hz, it's perfect for logistics, warehouse management, and manufacturing process control, ensuring reliable and precise barcode reading in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Ethernet, 2 x M12 cylindrical connectors (17-pin male, 4-pin female)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6.5 W
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Reading distance: 47 mm to 798 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Enclosure rating: IP69K (DIN 40 050, part 9)
- Protection class: III (EN 61140)
- Weight: 1,230 g without connecting cable
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 84mm x 121mm x 164mm
- Weight: 1.23 kg
Key Features
- Standard Density version with oscillating mirror sensor type
- Dynamic focus control with visible red laser light spot (655 nm)
- Reading distance from 47 mm to 798 mm
- Scanning frequency between 400 Hz and 1,200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- High protection rating IP69K with stainless steel housing
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021 standards
- Robust mechanical design with stainless steel housing and plastic window
- Low power consumption of 6.5 W
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption reduces environmental impact
- Durable stainless steel housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV640-0831S01 barcode scanner is available for immediate purchase, ideal for industrial and logistics applications requiring reliable and precise barcode reading.
