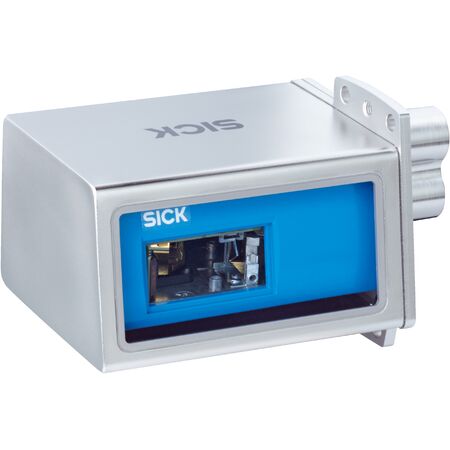

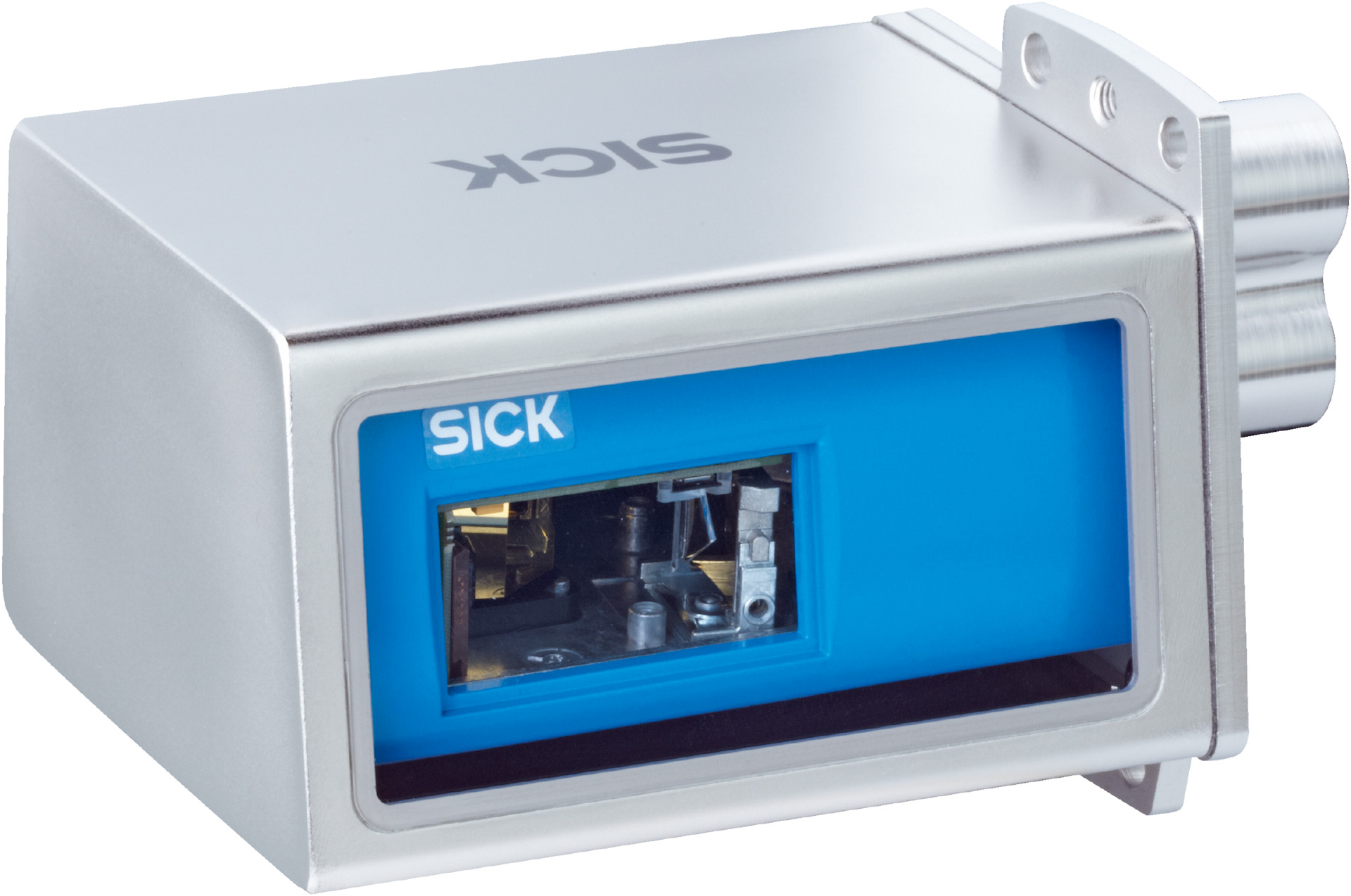

SICK CLV640 Barcode Scanner | Standard Density | Dynamic Focus Control | IP69K Rated | by SICK
The SICK CLV640 Barcode Scanner is designed for industrial automation, featuring a standard density version with dynamic focus control and robust IP69K-rated stainless steel housing. Ideal for logistics and manufacturing process control, it reads 1D barcodes with high resolution from 0.2 mm to 1 mm, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors (17-pin male, 4-pin female)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 63 mm to 717 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III (EN 61140)
- Weight: 890 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 84mm x 85mm x 154mm
- Weight: 0.89 kg
Key Features
- Standard Density version with dynamic focus control
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution from 0.2 mm to 1 mm
- Laser class 2 with visible red light spot at 655 nm
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust stainless steel housing with IP69K protection rating
- Multiple code reading capabilities with up to 50 codes per reading interval
- Supports digital inputs and outputs for sensor integration
- Comprehensive electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing extends product lifespan reducing waste
- Energy-efficient operation with low power consumption of 5.5 W
- High reliability reduces downtime and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK CLV640-6831S01 line scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high reliability and multiple interface options.
