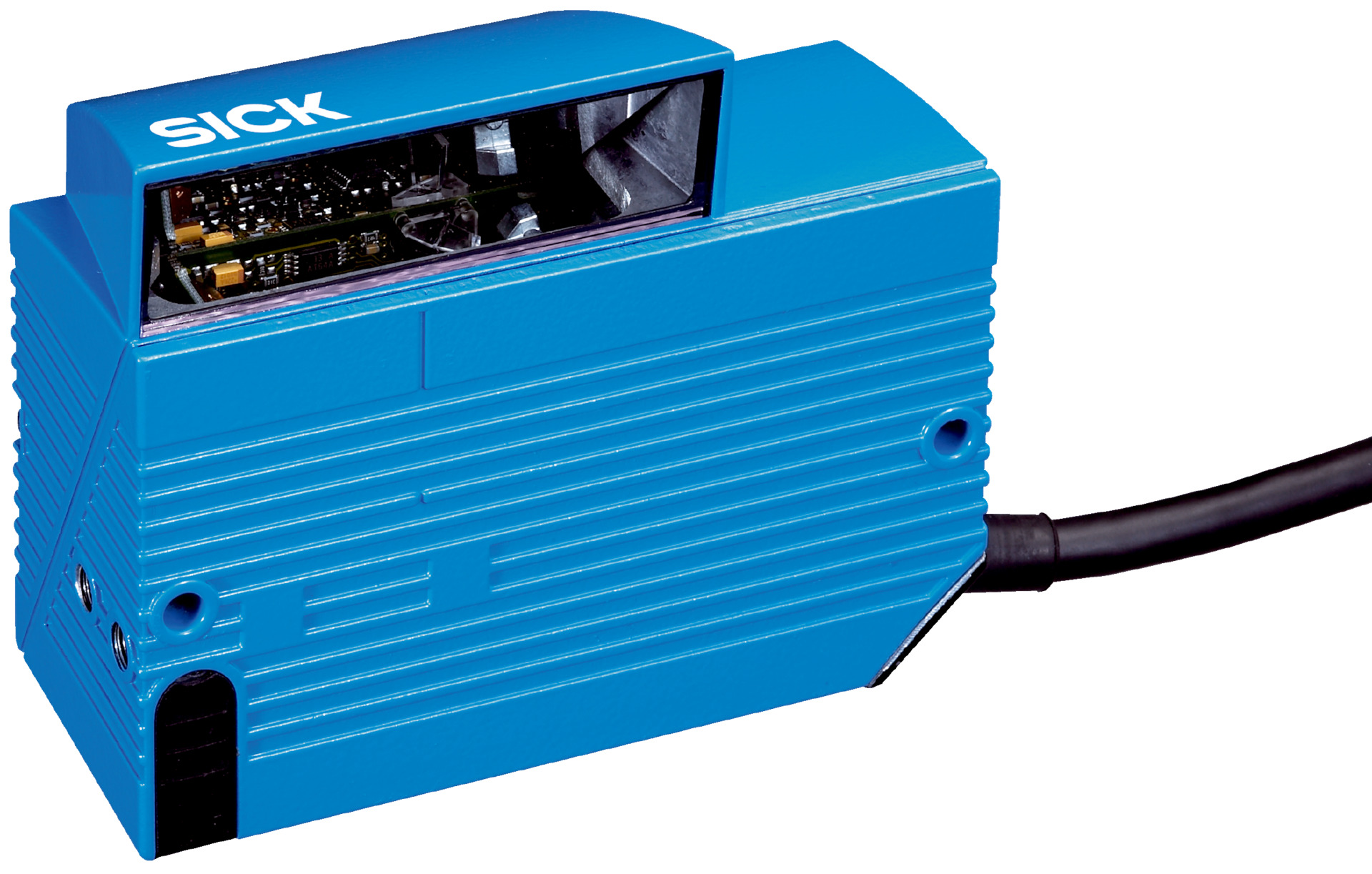

SICK CLV640 Raster Scanner | Dynamic Focus Control | IP65 Rated | 1D Barcode Support | by SICK
The SICK CLV640 Raster Scanner is designed for industrial automation, featuring dynamic focus control and robust IP65-rated aluminum housing. With a reading distance of 44 mm to 738 mm and support for all current 1D barcode types, it's perfect for logistics, manufacturing process control, and quality assurance applications. Its high scanning frequency of 400 Hz to 1200 Hz ensures efficient barcode reading in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 340 g including connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and more
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Reading distance: 44 mm to 738 mm
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Laser class: 2 compliant with IEC 60825-1
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Standard Density version with dynamic focus control
- Side reading field of 105° with oval light spot
- Laser class 2 compliant with IEC 60825-1 standards
- Reading distance from 44 mm to 738 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types including GS1 DataBar and Pharmacode
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from 0 °C to +40 °C
- Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper integration and safety compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Low power consumption of 5.5 W supports energy efficiency
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

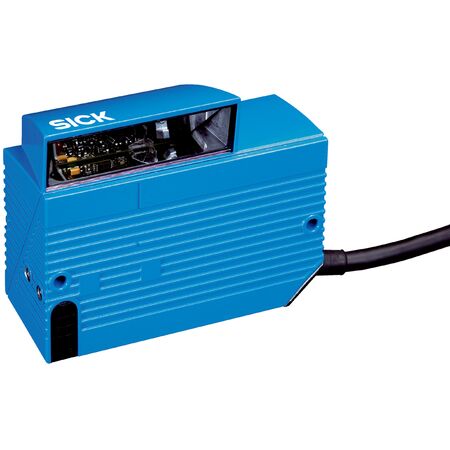

The SICK CLV640-3000S01 Standard Density Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
