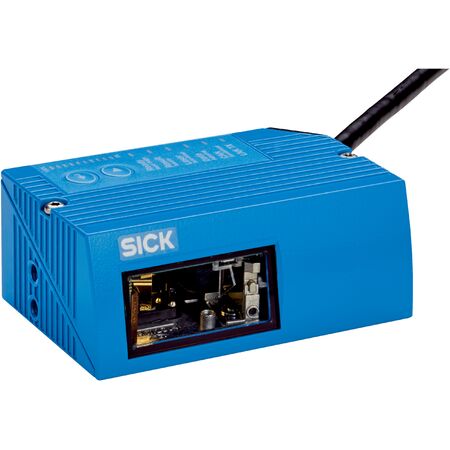

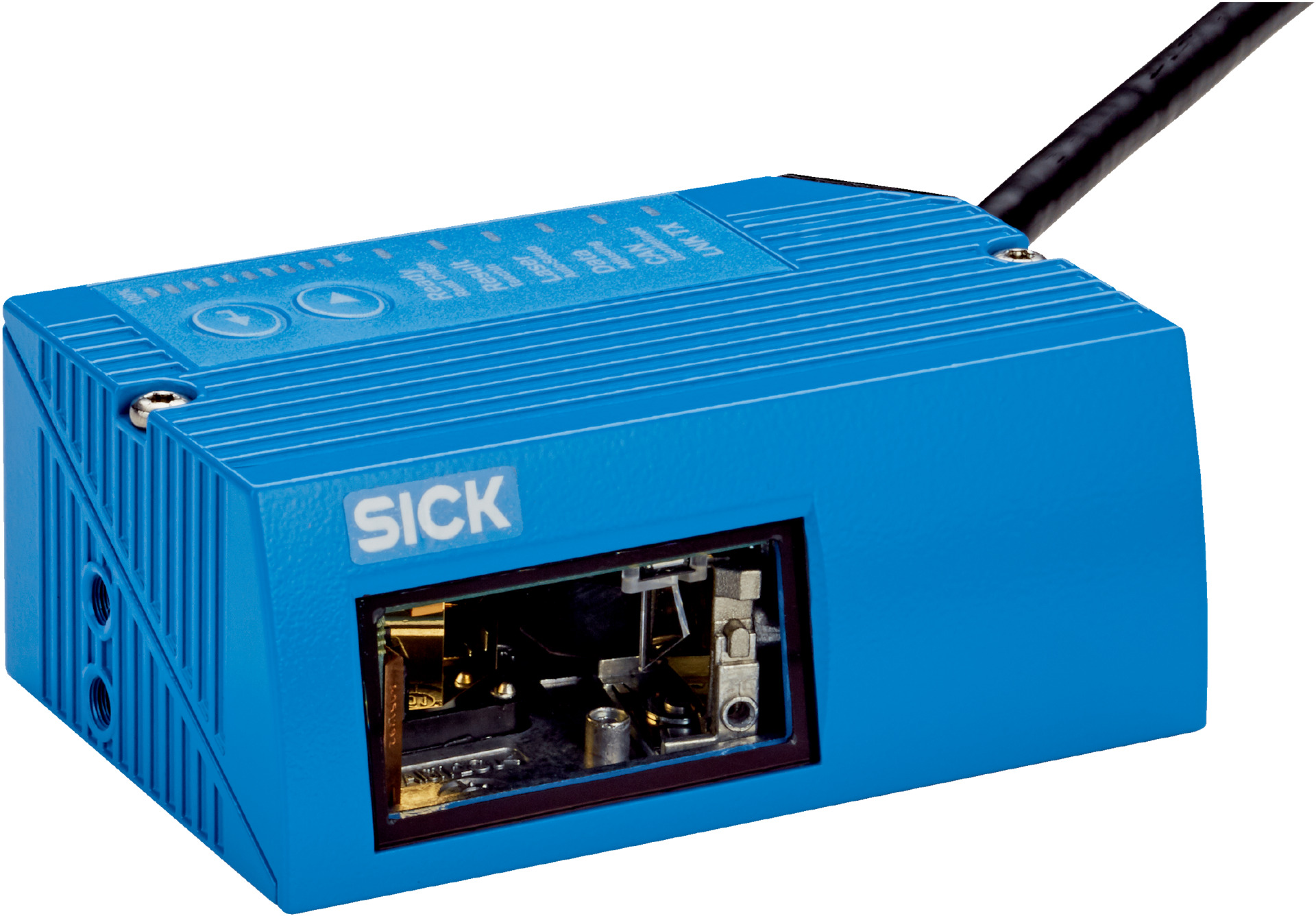

SICK CLV642 High Density Line Scanner | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV642 High Density Line Scanner is designed for industrial barcode scanning, featuring dynamic focus control and robust IP65-rated housing. With the ability to read various 1D barcodes at scanning frequencies from 400 Hz to 1,200 Hz, it's perfect for automated production lines and logistics management. This reliable scanner supports multiple interfaces and offers up to 50 codes per reading interval, making it an essential tool for quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV642 High Density Line Scanner | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1044873
Alternatively Known As: SICK CLV642 Barcode Scanner, SICK High Density Line Scanner, Industrial Barcode Reader, SICK Laser Scanner
Technical Specifications
- Version: High Density
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 30 mm to 345 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.25 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.32 kg
Key Features
- High density line scanner with dynamic focus control
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Laser class 2 with visible red light spot at 655 nm
- Scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 protection
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Supports up to 50 codes per reading interval and 5,000 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy-efficient laser technology minimizes power consumption
- Supports automated processes that reduce material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV642-0000 High Density Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
