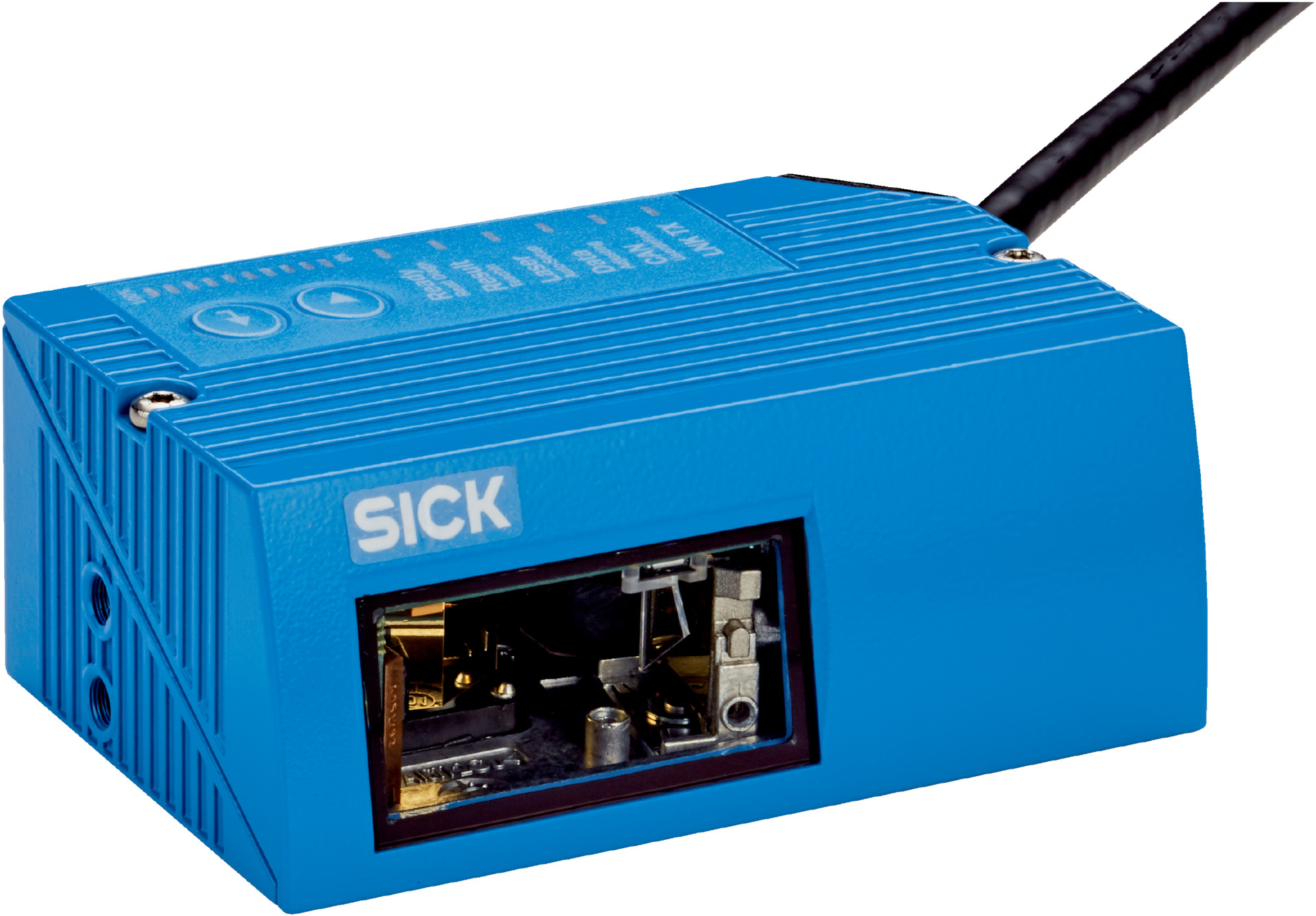

SICK CLV650-0000 Barcode Scanner | Auto Focus | IP65 Rated | 600-1000 Hz Scanning | by SICK
The SICK CLV650-0000 barcode scanner is designed for industrial applications, featuring an auto focus optical system and robust IP65-rated housing. With a high scanning frequency of 600 to 1000 Hz, it efficiently reads 1D barcodes including Code 39 and UPC, making it ideal for automated production lines and logistics management. Its multiple interface options ensure seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 140 mm to 1,625 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 8.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 320 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.32 kg
Key Features
- Standard Density version with auto focus optical system
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Laser class 2 with visible red light spot at 658 nm wavelength
- High scanning frequency from 600 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 protection
- Multiple interface options including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, and serial
- Digital inputs and outputs for sensor and result integration
- Configurable via SOPAS ET software and optional MicroSD memory card
- Equipped with optical and acoustic indicators for status feedback
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption at 8.5 W supports energy-efficient operation
Warranty Information
Warranty terms as provided by SICK, typically 1-2 years depending on region and purchase agreement.
Available Now
The SICK CLV650-0000 Standard Density Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
