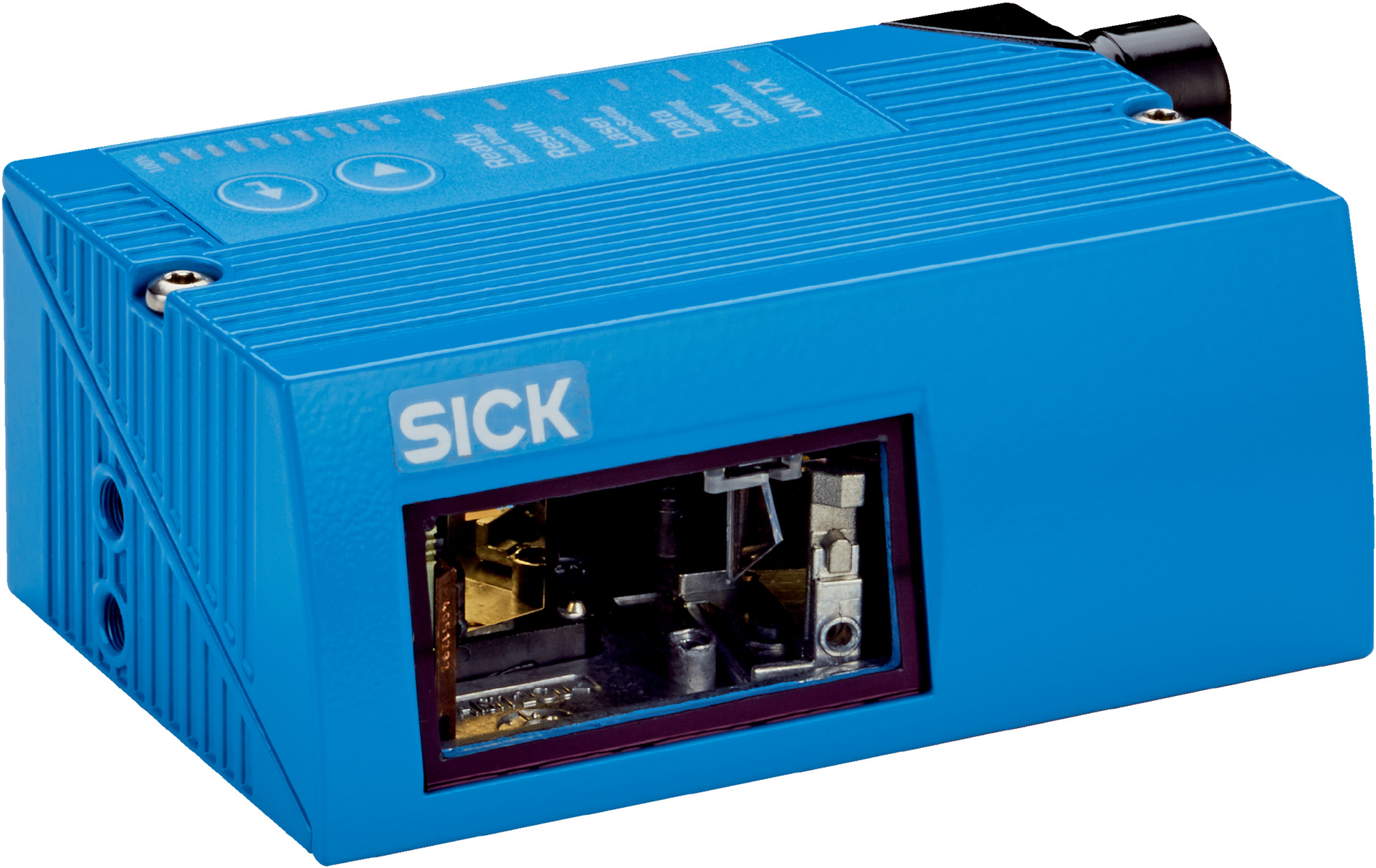

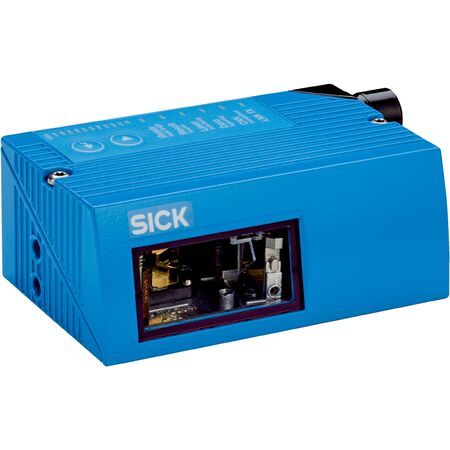

SICK CLV650-0120 Line Scanner | Standard Density | Ethernet Connection | IP65 Rated | by SICK
The SICK CLV650-0120 line scanner excels in industrial automation with its standard density scanning and Ethernet connectivity. Designed for logistics and manufacturing, it reads 1D barcodes at high frequencies up to 1000 Hz, ensuring quick and accurate data capture. Its robust aluminum housing and IP65 rating make it ideal for demanding environments, while the auto-focus optical system enhances performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV650-0120 Line Scanner | Standard Density | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1042121
Alternatively Known As: SICK CLV650 Barcode Scanner, SICK Line Scanner CLV650, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Light spot, laser, Visible, Red, 658 nm
- Laser class: 2, complies with 21 CFR 1040.10 except for conformance according to Laser Notice No. 56 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 50°
- Reading distance: 140 mm to 1,625 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Connection type: 2 x M12 cylindrical connectors (12-pin male, 4-pin female) on swivel connector
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 8.5 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 250 g without connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: All current code types including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Standard density line scanner with auto focus optical system
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- High scanning frequency from 600 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Light spot laser source, visible red 658 nm, laser class 2 compliant
- Multiple digital inputs and outputs with LED and acoustic indicators
- MicroSD memory card support for configuration
- Wide ambient operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 8.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV650-0120 line scanner is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
