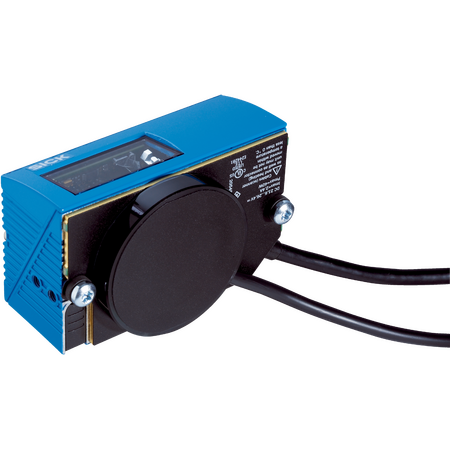

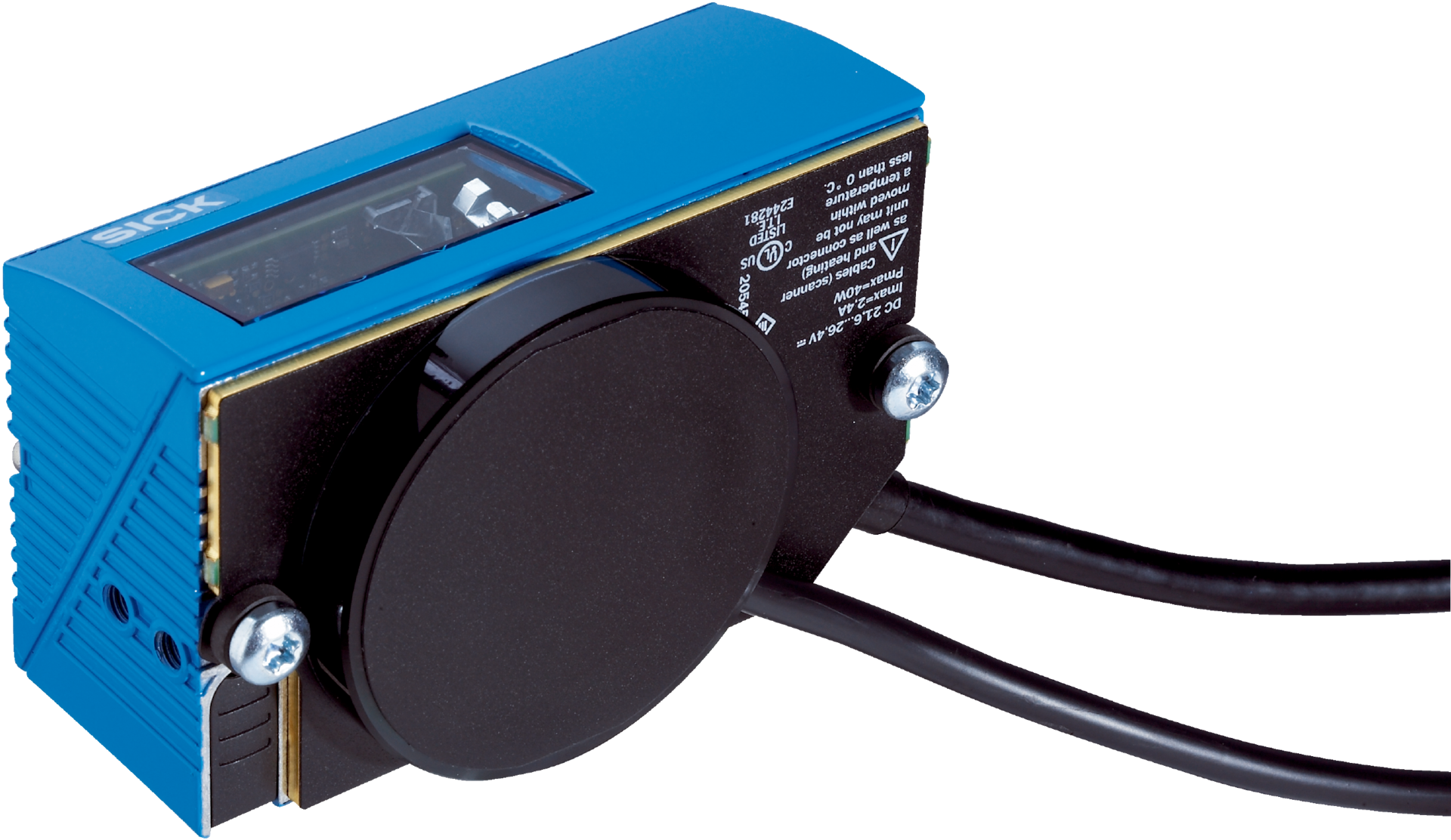

SICK CLV650-0120F0 Codereader | Standard Density Line Scanner | Auto Focus & Ethernet Connection | IP65 Rated | by SICK
The SICK CLV650-0120F0 Codereader is a standard density line scanner designed for industrial automation and logistics applications. With an auto focus feature and Ethernet connectivity, it supports a reading distance of 140 mm to 1625 mm and a high scanning frequency of 600 Hz to 1000 Hz. Its durable IP65 rated aluminum housing ensures reliable performance in various environments, making it ideal for barcode scanning in manufacturing and cold storage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SICK CLV650 Codereader, SICK Ethernet Barcode Scanner, SICK Line Scanner Barcode Reader
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 connectors, open-ended cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 140 mm to 1625 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.25 mm to 1 mm
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 450 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422/485, CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.45 kg
Key Features
- Standard density line scanner with auto focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Laser class 2 with visible red light spot (658 nm)
- Reading distance from 140 mm to 1625 mm
- High scanning frequency between 600 Hz and 1000 Hz
- Supports reading of all current 1D barcode types
- Heating for cold storage applications
- IP65 rated aluminum die cast housing with glass window
- Multiple digital inputs and outputs with LED and acoustic indicators
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Cold storage barcode scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient operation with low power consumption (40 W)
- Supports cold storage applications reducing need for multiple devices
Warranty Information
Warranty details available from SICK; typically includes manufacturer warranty against defects.
Available Now
The SICK CLV650-0120F0 Codereader is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
