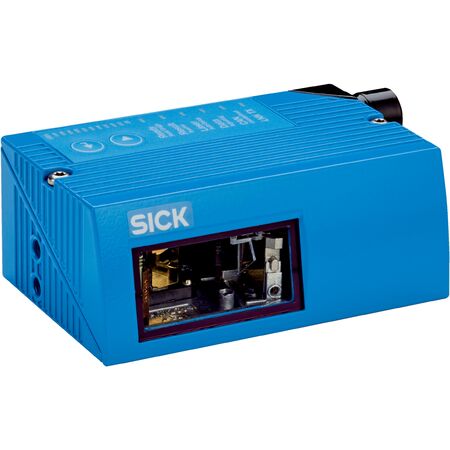

SICK CLV650-08300A Ethernet Line Scanner | Standard Density | Auto Focus | IP65 Rated | by SICK
The SICK CLV650-08300A Ethernet line scanner is designed for industrial barcode scanning, featuring a standard density line scanner with an auto focus optical system. Ideal for automated production lines and logistics, it reads 1D barcodes including Code 39 and UPC, ensuring high efficiency with a scanning frequency of 600 Hz to 1000 Hz. Its robust aluminum housing and IP65 rating make it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV650-08300A Ethernet Line Scanner | Standard Density | Auto Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1050845
Alternatively Known As: SICK CLV650 Barcode Scanner, SICK Ethernet Line Scanner, Industrial Barcode Reader, SICK CLV650-08300A Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser, 658 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 140 mm to 1,625 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 8.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g (without connecting cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Standard density line scanner with auto focus optical system
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Laser class 2 with visible red laser light (658 nm)
- High scanning frequency from 600 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs for sensor and result integration
- Configurable via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Object tracking and identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of 8.5 W supports energy-efficient operation
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK CLV650-08300A Ethernet line scanner is available for immediate purchase, ideal for industrial barcode scanning and automated production applications.
