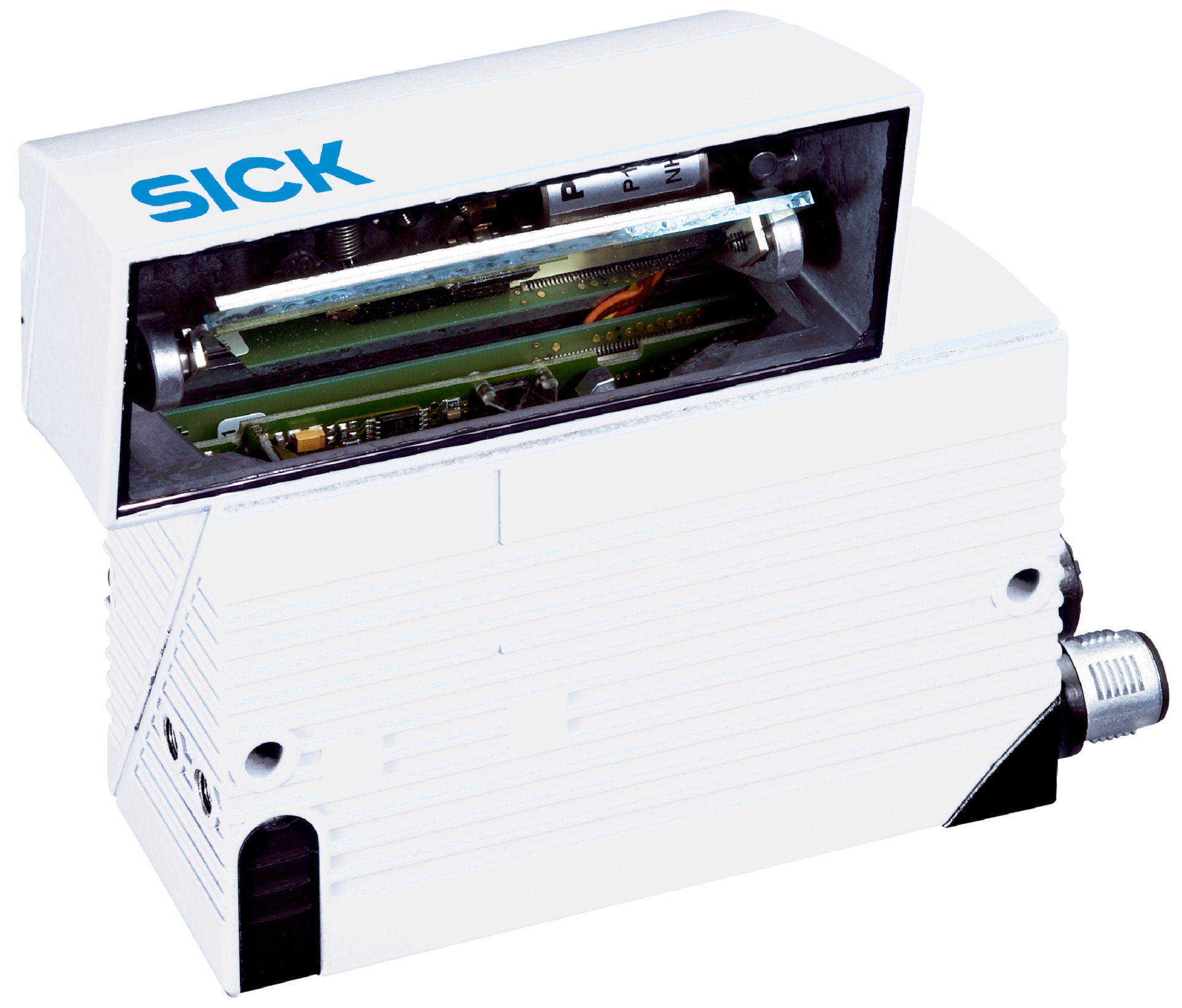

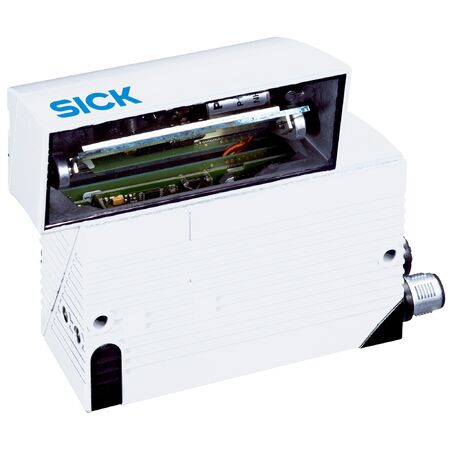

SICK CLV650-6120S52 Barcode Scanner | Ethernet Connection | Oscillating Mirror Sensor | IP65 Rated | by SICK
The SICK CLV650-6120S52 barcode scanner features an oscillating mirror sensor with auto focus, ensuring precise reading of 1D barcodes from 125 mm to 1,570 mm. With an Ethernet connection and robust IP65-rated aluminum housing, it's perfect for industrial automation, logistics, and manufacturing applications, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror with auto focus
- Light source: Visible red laser, 658 nm, Laser Class 2
- Aperture angle: ≤ 50°
- Reading distance: 125 mm to 1,570 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable/fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 9.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (Standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and beeper/buzzer
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.25 kg
Key Features
- Standard Density version with Ethernet connection
- Oscillating mirror sensor with auto focus optical system
- Visible red laser light source at 658 nm, Laser Class 2 compliant
- Reading distance from 125 mm to 1,570 mm
- Scanning frequency between 600 Hz and 1,000 Hz
- Supports reading of all current 1D barcode types
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0 °C to +40 °C
- Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP65 rated housing extends product lifespan, reducing waste
- Supports digital interfaces minimizing need for additional hardware
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK CLV650-6120S52 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
