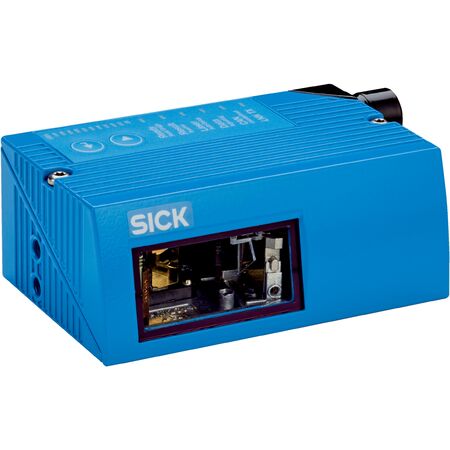

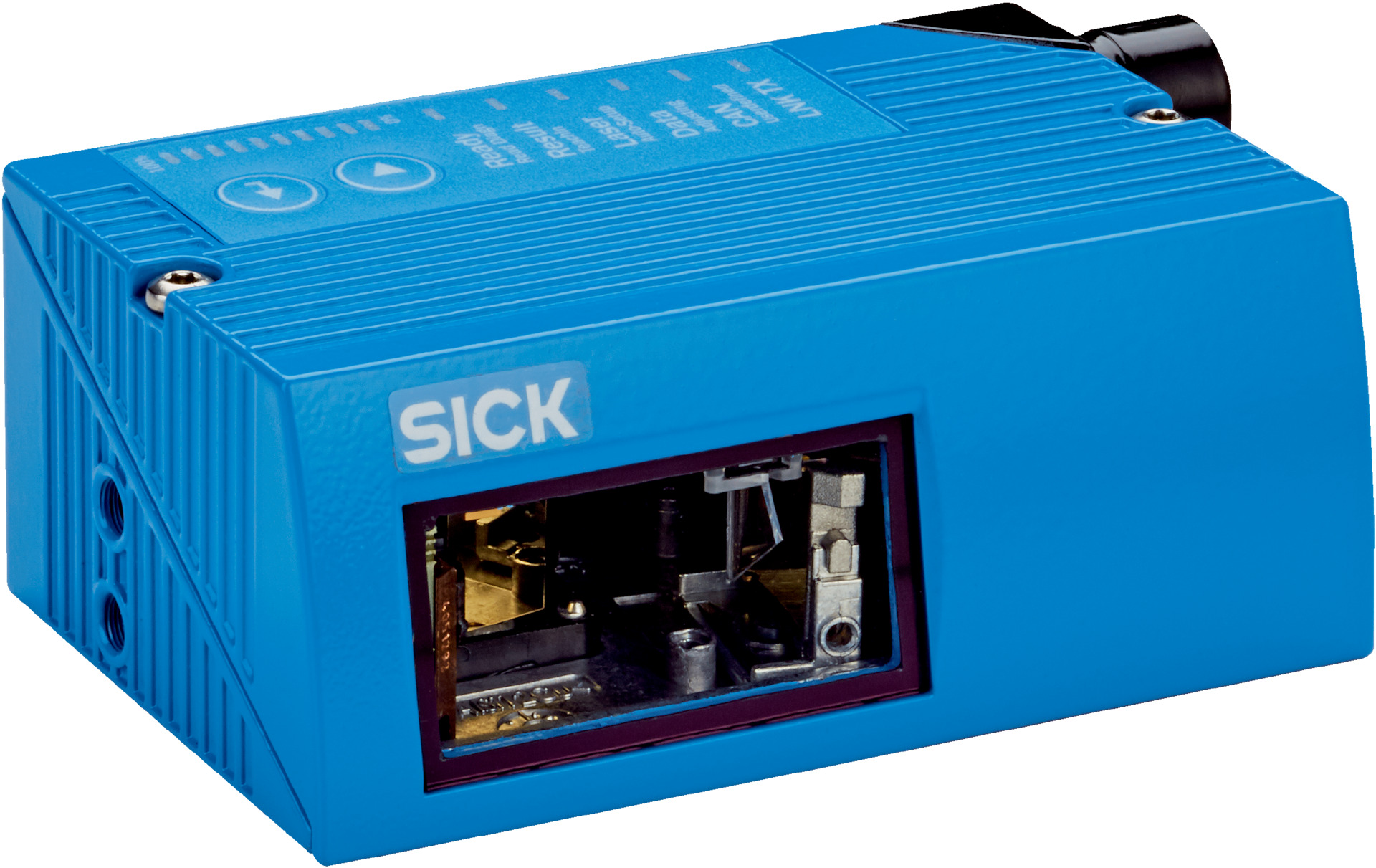

SICK CLV650 Barcode Scanner | Standard Density | Auto Focus & Ethernet Connection | IP65 Rated | by SICK
The SICK CLV650 Barcode Scanner is designed for industrial barcode scanning, featuring a standard density version with an auto focus optical system and Ethernet connectivity. Ideal for automated production lines and logistics, this robust scanner reads 1D barcodes with high resolution from 0.25 mm to 1 mm, ensuring accuracy and efficiency in quality control and traceability systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV650 Barcode Scanner | Standard Density | Auto Focus & Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1051957
Alternatively Known As: SICK CLV650 Barcode Scanner, SICK Line Scanner Ethernet, Industrial Barcode Reader, SICK CLV650-0120S01 Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Polarisation filters included
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 160 mm to 1400 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.25 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 8.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (Standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Standard Density version with auto focus optical system
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution from 0.25 mm to 1 mm
- Laser class 2 with visible red light spot at 658 nm wavelength
- High scanning frequency from 600 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 protection
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and up to 5000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 8.5 W supports energy efficiency
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV650-0120S01 line scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
