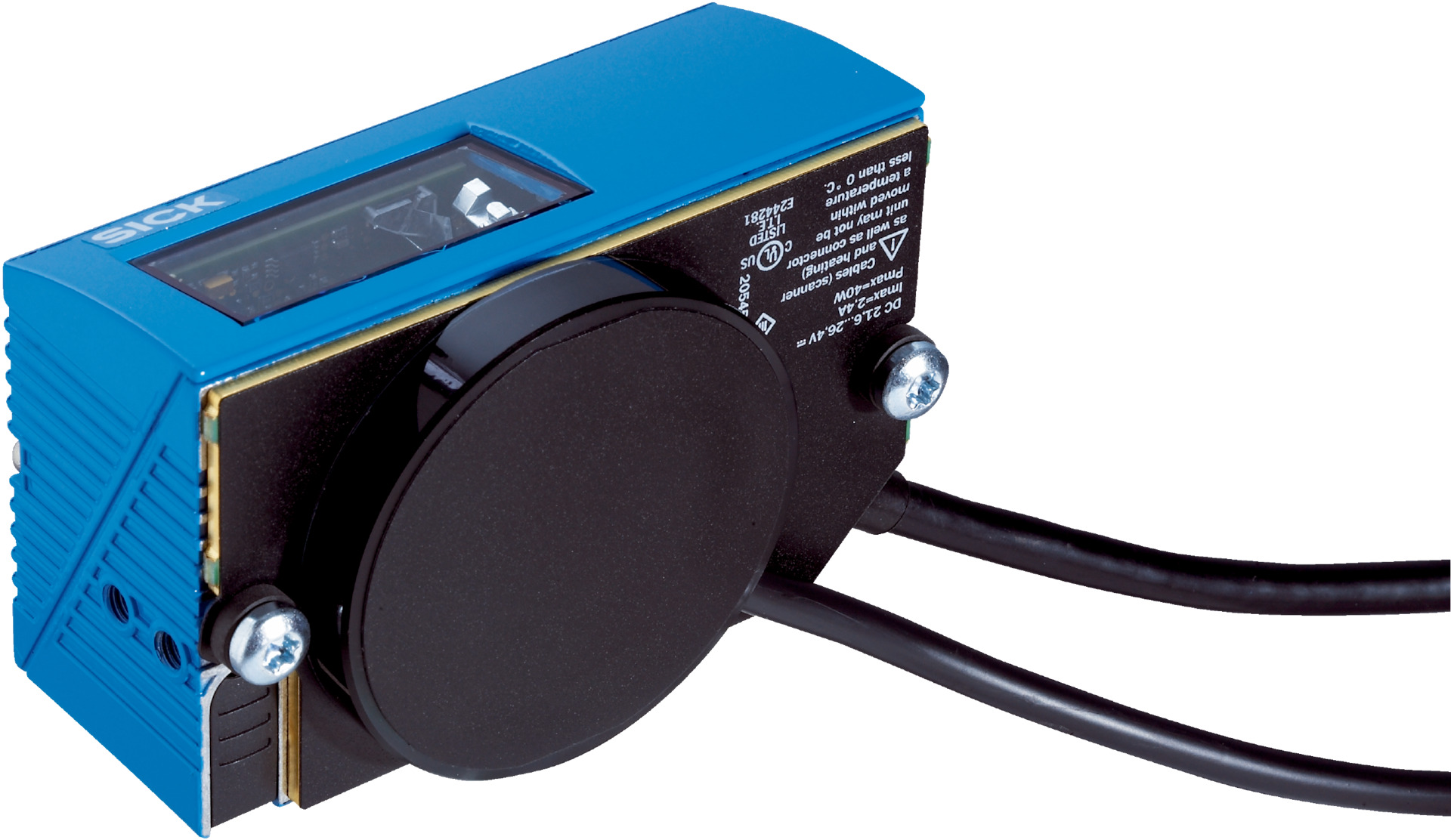

SICK CLV650 Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
The SICK CLV650 Barcode Scanner is designed for industrial barcode scanning, featuring a standard density version with an auto focus optical system. With a robust aluminum housing and IP65 protection, it's perfect for cold storage and harsh environments, ensuring reliable performance in automated production and logistics systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV650 Barcode Scanner | Standard Density | Auto Focus & IP65 Rated | by SICK
Brand: SICK
SKU: 1052180
Alternatively Known As: SICK CLV650 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, SICK CLV650 Laser Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Cable with 15-pin D-Sub HD male connector and open-ended cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: 2, compliant with IEC 60825-1:2014 and FDA 21 CFR 1040.10
- Aperture angle: ≤ 50°
- Reading distance: 140 mm to 1,625 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Heating: Included for cold storage applications
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 520 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.52 kg
Key Features
- Standard Density version with auto focus optical system
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Laser class 2 with visible red light spot at 658 nm wavelength
- High scanning frequency from 600 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 protection
- Supports multiple industrial communication interfaces including PROFINET, EtherCAT, CAN, and PROFIBUS DP
- Heating element for cold storage applications
- Multiple digital inputs and outputs with LED and acoustic indicators
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration of communication interfaces and compliance with laser safety standards.
Applications
- Industrial barcode scanning and reading
- Cold storage and harsh environment applications
- Automated production and logistics systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption of 40 W supports energy efficiency
- Supports cold storage use reducing need for additional heating equipment
Warranty Information
Warranty details available upon request from SICK, typically including coverage against manufacturing defects.
Available Now

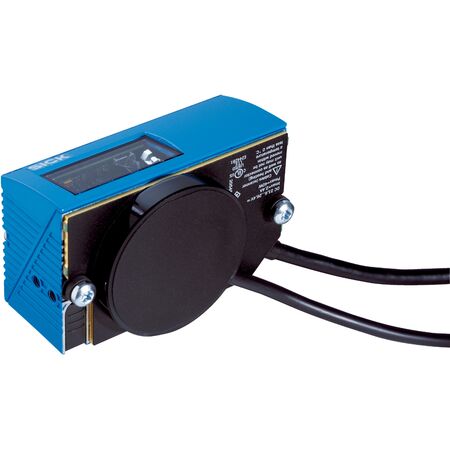

The SICK CLV650-0000F0 line scanner is available for immediate purchase, ideal for industrial barcode scanning applications including cold storage environments.
