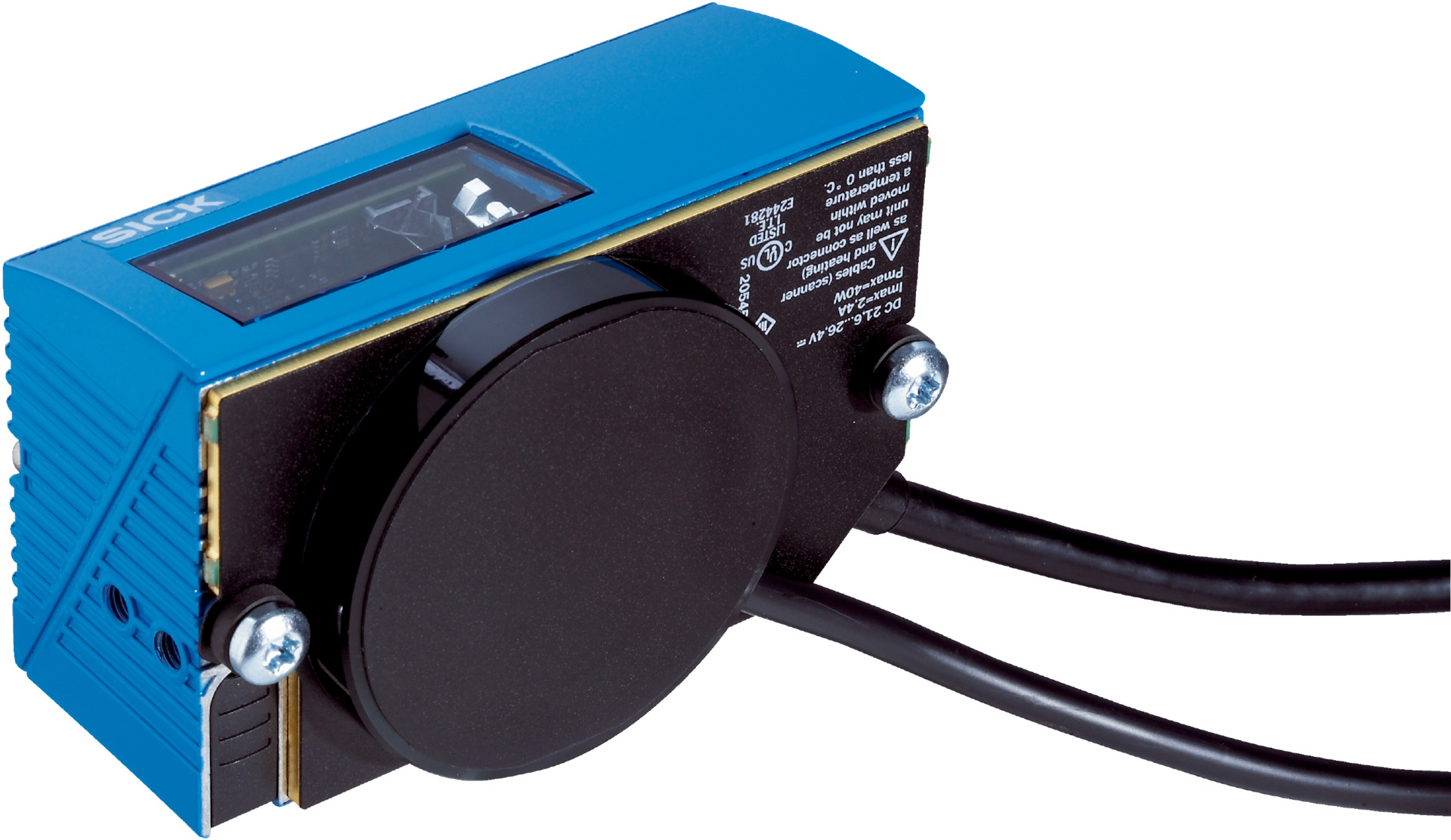

SICK CLV650 Barcode Scanner | Standard Density Line Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The SICK CLV650 Barcode Scanner is a standard density line scanner designed for industrial applications, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With an auto focus optical system and a reading distance of 140 mm to 1,625 mm, it's perfect for cold storage environments and automated production lines, ensuring reliable barcode scanning and reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors, 1 x open-ended cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 140 mm to 1,625 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 450 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, Pharmacode
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.45 kg
Key Features
- Standard density line scanner with auto focus optical system
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Laser class 2 with visible red light spot at 658 nm wavelength
- Reading distance from 140 mm to 1,625 mm with scanning frequency between 600 Hz and 1,000 Hz
- Supports all current 1D barcode types including GS1 DataBar and Pharmacode
- Heating element for cold storage applications
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with optical and acoustic indicators
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation and configuration by qualified personnel recommended to ensure compliance with safety and operational standards.
Applications
- Industrial barcode scanning and reading
- Cold storage environments
- Automated production lines
- Logistics and packaging code verification
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy efficient operation with low power consumption of 40 W
- Supports cold storage applications reducing need for additional heating devices
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now

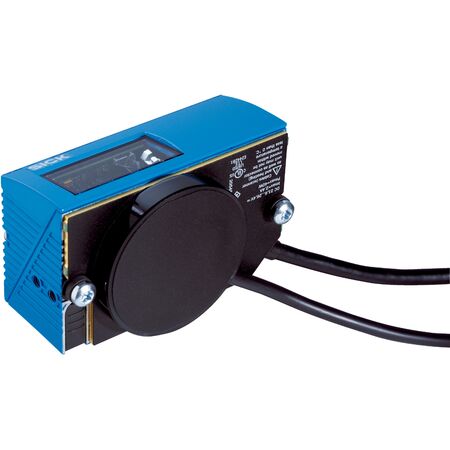

The SICK CLV650-0120F0 line scanner is available for immediate purchase, ideal for industrial barcode scanning and cold storage applications.
