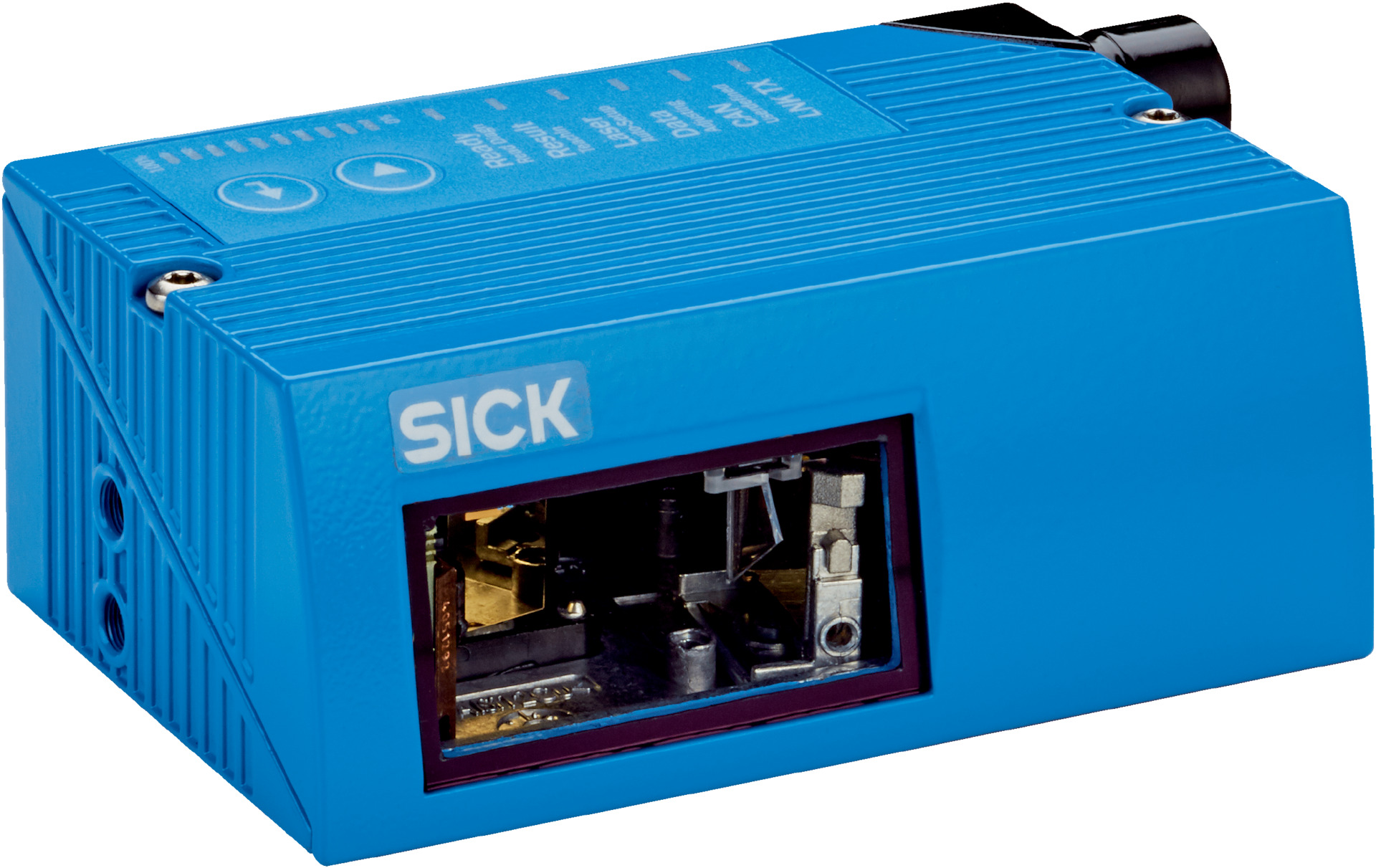

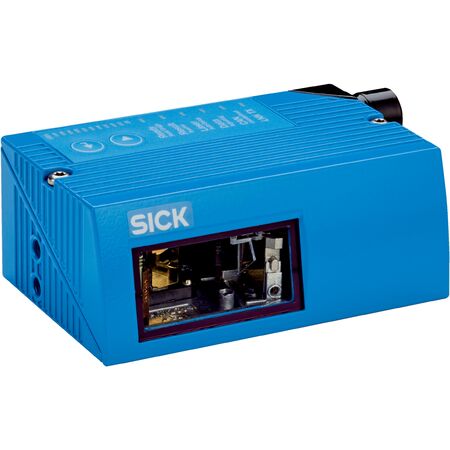

SICK CLV651 Low Density Ethernet Line Scanner | Auto Focus | IP65 Rated | 600 Hz Scanning Frequency | by SICK
The SICK CLV651 Low Density Ethernet Line Scanner is designed for efficient barcode reading in industrial automation. With an auto focus optical system and the ability to read various 1D barcodes, it excels in logistics and manufacturing applications. Its robust IP65 rated aluminum housing ensures durability, while multiple fieldbus options provide versatile connectivity for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV651 Low Density Ethernet Line Scanner | Auto Focus | IP65 Rated | 600 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1050847
Alternatively Known As: SICK CLV651 Barcode Scanner, SICK Ethernet Line Scanner, Industrial Barcode Reader, SICK Laser Scanner
Technical Specifications
- Version: Low Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: 2, compliant with IEC 60825-1
- Aperture angle: ≤ 50°
- Reading distance: 170 mm to 930 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 8.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Low density line scanner with auto focus optical system
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, and PROFIBUS DP
- High scanning frequency from 600 Hz to 1000 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 compliant with IEC 60825-1 standards
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports microSD memory card for configuration storage
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for package tracking
- Manufacturing for product identification and quality control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 8.5 W
- Supports digital communication reducing wiring and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK CLV651-08300A Low Density Ethernet Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
