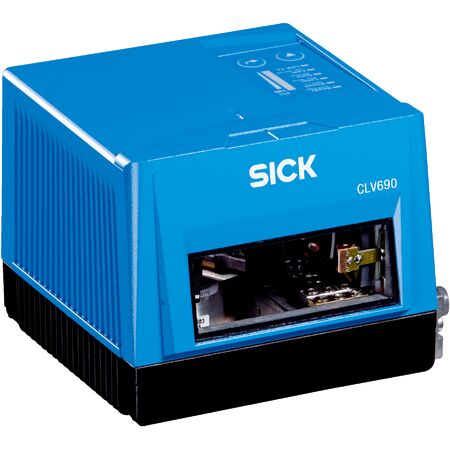

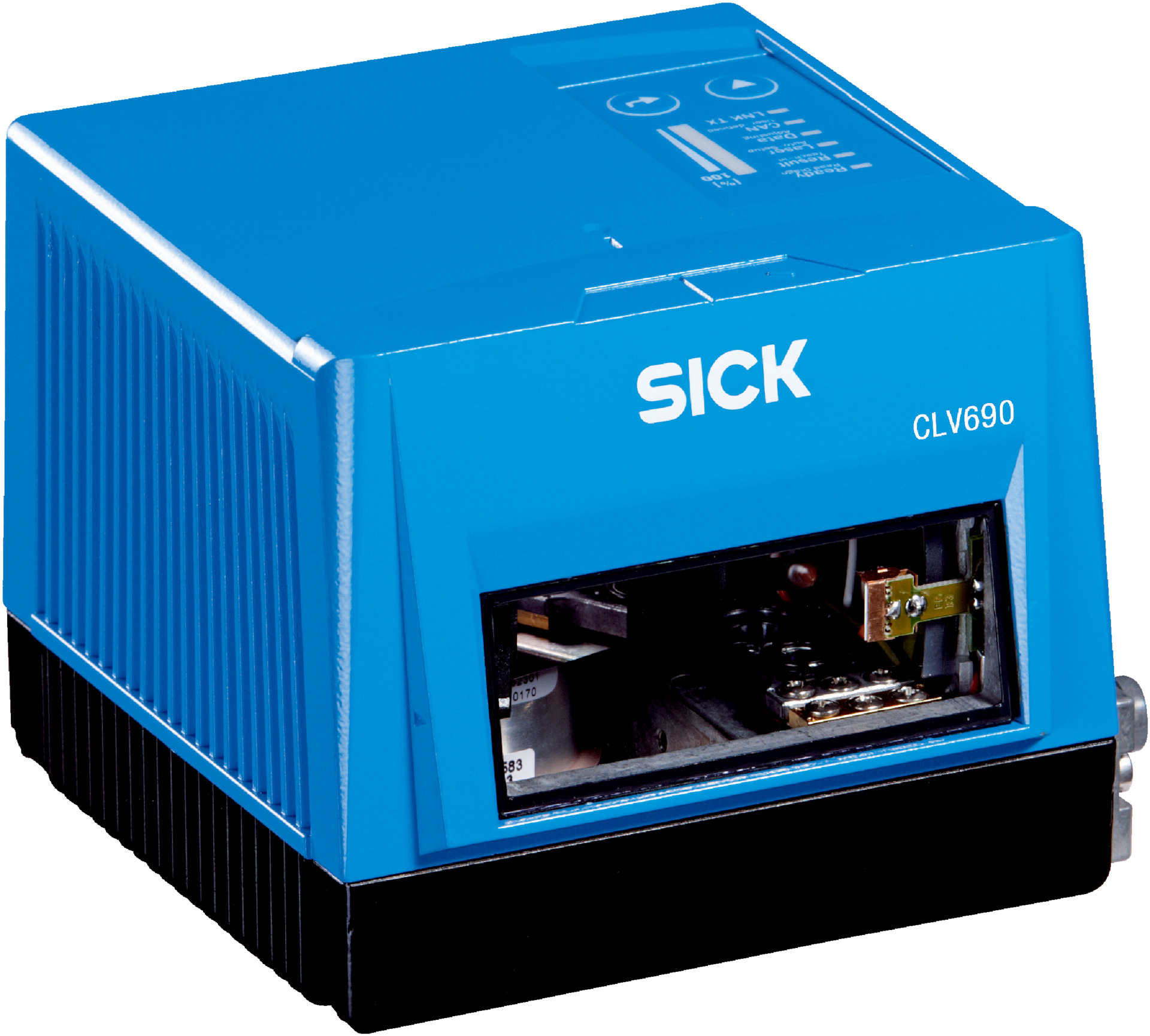

SICK CLV690-0000 Barcode Scanner | Standard Density | Auto Focus & Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV690-0000 Barcode Scanner is designed for industrial automation, featuring a standard density version with auto focus and dynamic focus control. With a reading distance of 500 mm to 2100 mm and the ability to read various 1D barcodes, this robust scanner is perfect for logistics, manufacturing, and quality control applications. Its IP65-rated aluminum housing ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV690-0000 Barcode Scanner | Standard Density | Auto Focus & Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056600
Alternatively Known As: SICK CLV690 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, SICK CLV690-0000 Laser Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Depending on the cloning plug used
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus (alternative: dynamic focus control)
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Visible red laser spot, 660 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 60°
- Reading distance: 500 mm to 2100 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.3 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 15 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Weight: 1.5 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- Standard Density version with auto focus and dynamic focus control options
- Reads 1D barcodes including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Reading distance from 500 mm to 2100 mm with scanning frequency between 400 Hz and 1200 Hz
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021 standards
- Robust aluminum die cast housing with IP65 protection rating
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Integrated parameter storage in cloning plug and configuration via SOPAS ET software
- High ambient light immunity up to 2000 lx on barcode
- 6 digital inputs and 4 digital outputs for flexible control
- Long MTBF of 100,000 hours and MTTF of 40,000 hours for laser diode
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 15 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV690-0000 Standard Density Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode reading applications.
