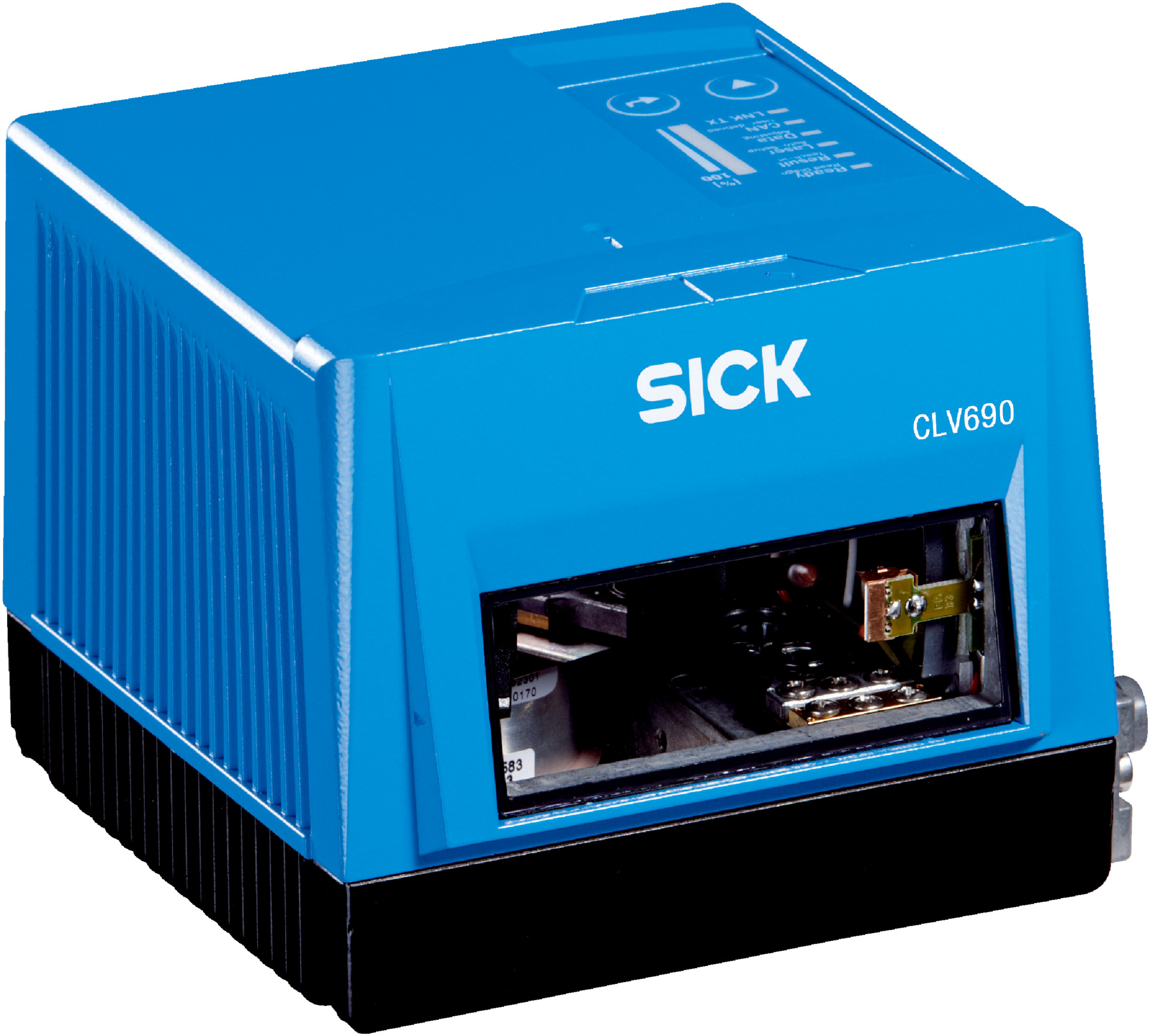

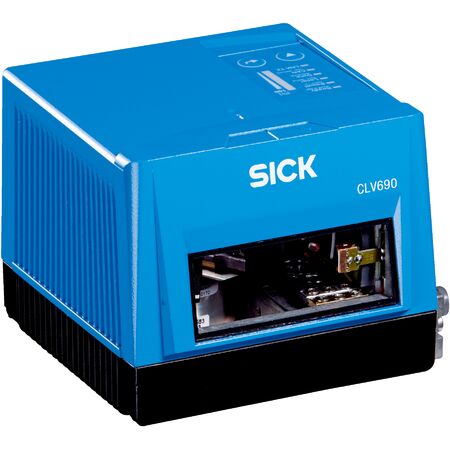

SICK CLV690-0010 Barcode Scanner | Standard Density Line Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
The SICK CLV690-0010 Barcode Scanner is a standard density line scanner designed for industrial applications, featuring auto focus and dynamic focus control for precise reading. With a reading distance of 500 mm to 2100 mm and the ability to read various 1D barcodes, it's perfect for logistics, quality control, and food industry barcode scanning. Its robust IP65 rated housing ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV690-0010 Barcode Scanner | Standard Density Line Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056614
Alternatively Known As: SICK CLV690 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, SICK CLV690-0010 Laser Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Depending on the cloning plug used
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus with dynamic focus control option
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Visible red laser spot, 660 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 60°
- Reading distance: 500 mm to 2100 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.3 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 15 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65 (EN 60529/A1 (2002-02))
- Weight: 1.5 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Reading pulse sources: Digital inputs, serial interface, auto pulse, CAN
- Optical indicators: 6 LEDs for status and reading rate
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- Standard density line scanner with auto focus and dynamic focus control options
- Reads 1D barcodes including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Reading distance from 500 mm to 2100 mm with scanning frequency between 400 Hz and 1200 Hz
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021 standards
- Robust aluminum die cast housing with IP65 rating for protection against dust and water
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, and PROFIBUS DP
- Integrated optical indicators and control buttons for easy operation
- High code resolution from 0.3 mm to 1 mm and up to 50 codes per reading interval
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial laser safety and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Food industry barcode reading
- Industrial automation and logistics
- Quality control and tracking in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV690-0010 Standard Density Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial and food industry barcode scanning applications.
