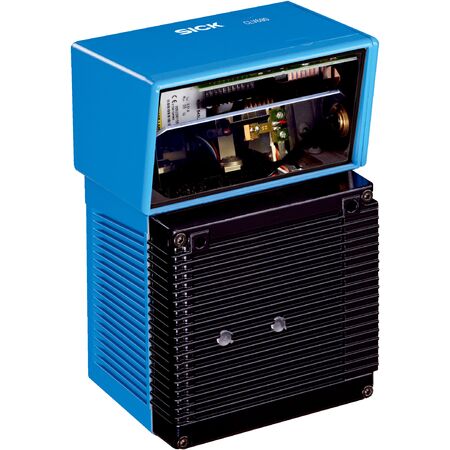

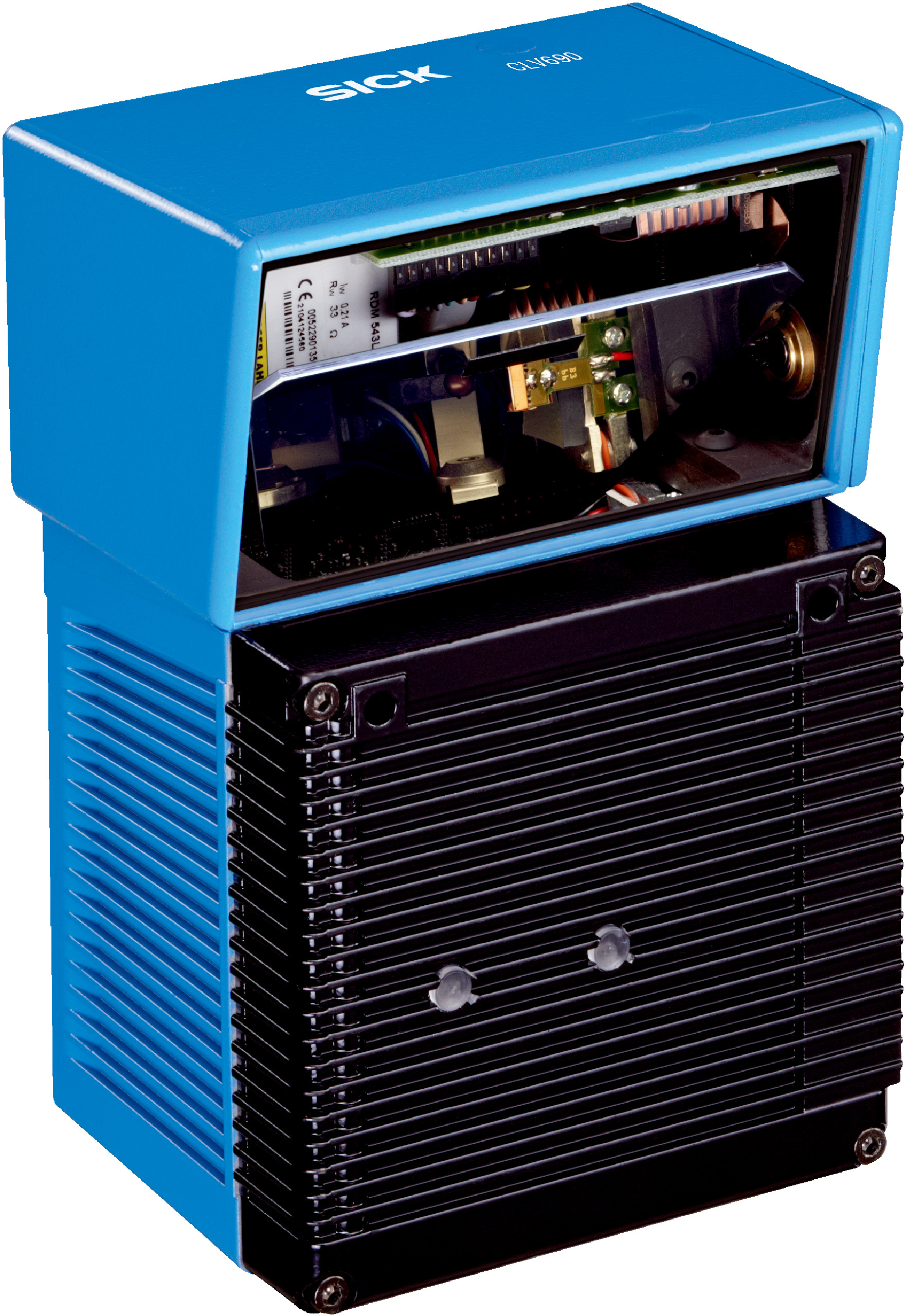

SICK CLV690-1000 Barcode Scanner | Oscillating Mirror Sensor | IP65 Rated | Auto Focus | by SICK
The SICK CLV690-1000 Barcode Scanner features an oscillating mirror sensor and auto focus, making it ideal for industrial automation and logistics applications. With a reading distance of 500 mm to 2,100 mm and support for various 1D barcode types, this scanner ensures efficient package identification and quality control. Its durable IP65 rated aluminum housing provides high ambient light immunity, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV690-1000 Barcode Scanner | Oscillating Mirror Sensor | IP65 Rated | Auto Focus | by SICK
Brand: SICK
SKU: 1056601
Alternatively Known As: SICK CLV690 Barcode Scanner, Oscillating Mirror Barcode Reader, Industrial Barcode Scanner, SICK CLV690-1000 Laser Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Depending on the cloning plug used
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus (alternative: dynamic focus control)
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Visible red laser spot, 660 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 500 mm to 2,100 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.3 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 4 Hz
- Angle of deflection: –20° to 20° (software adjustable)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 17 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529/A1 (2002-02))
- Weight: 2,200 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP™, Serial RS-232/422/485, CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- EMC: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 97mm x 182mm x 128mm
- Weight: 2.2 kg
Key Features
- Standard Density version with oscillating mirror sensor type
- Auto focus with alternative dynamic focus control
- Reading distance from 500 mm to 2,100 mm
- Scanning frequency between 400 Hz and 1,200 Hz
- Supports reading of 1D barcode types including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Oscillating mirror functions include fixed, oscillating with variable or fixed amplitude, and one shot
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021 standards
- Multiple interface options including Ethernet TCP/IP, PROFINET, EtherNet/IP™, Serial RS-232/422/485, CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Operating temperature range 0 °C to +40 °C with high ambient light immunity
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with industrial systems.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package and product identification
- Quality control and inspection systems
- Material handling and sorting systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient laser technology minimizes power consumption
- Long MTBF of 100,000 hours reduces electronic waste
Warranty Information
Warranty details available upon request from SICK, typically including manufacturer defects coverage.
Available Now
The SICK CLV690-1000 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
