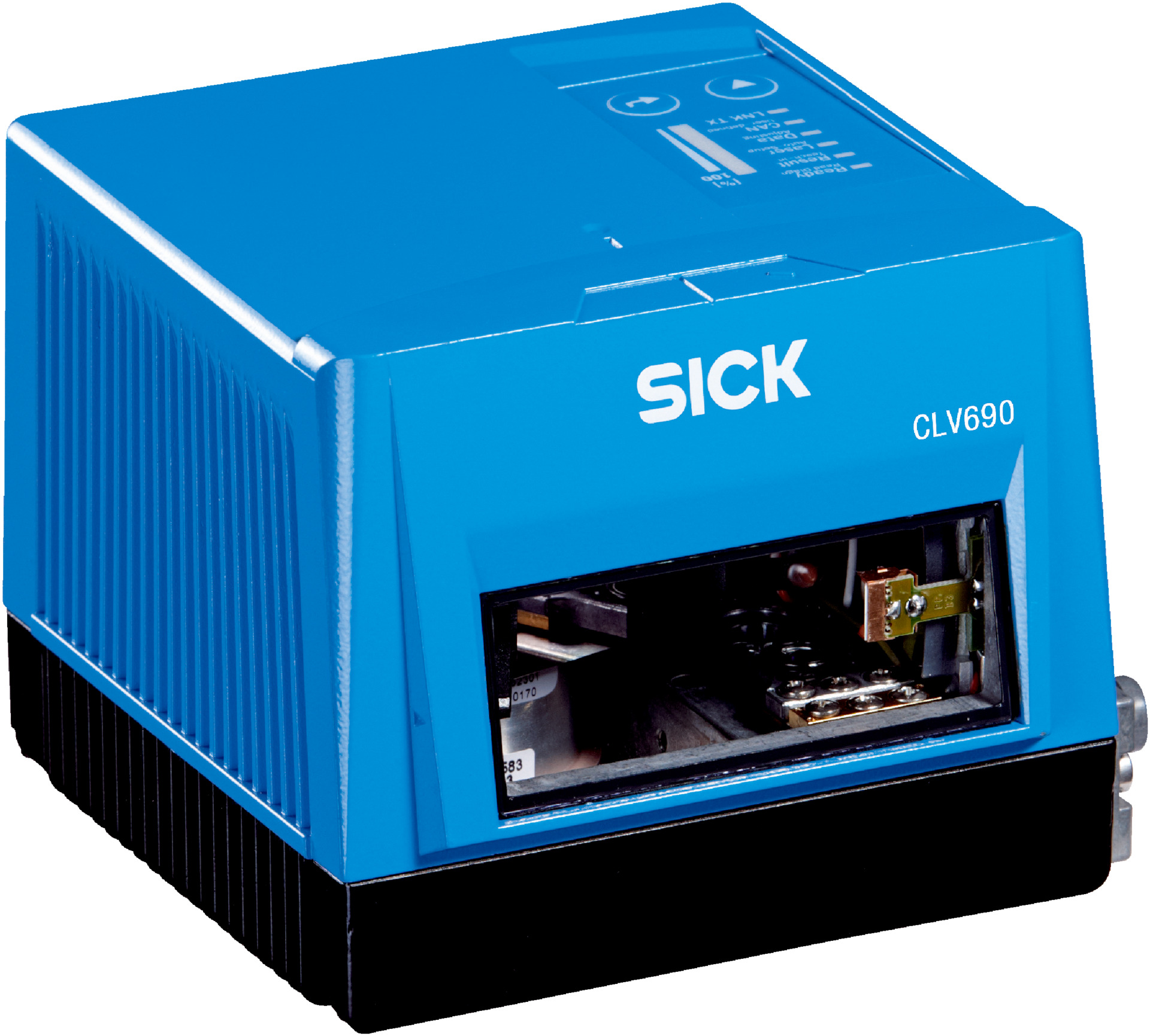

SICK CLV690 Barcode Scanner | Standard Density | Auto Focus & Dynamic Control | IP65 Rated | by SICK
The SICK CLV690 Barcode Scanner is designed for industrial barcode scanning, featuring a standard density version with auto focus and dynamic focus control. With a reading distance of 500 mm to 2,100 mm and a high scanning frequency of 400 Hz to 1,200 Hz, it's perfect for cold storage applications and automated production lines. Its durable IP65 rated aluminum housing ensures reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV690 Barcode Scanner | Standard Density | Auto Focus & Dynamic Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056602
Alternatively Known As: SICK CLV690 Barcode Scanner, SICK Line Scanner CLV690, Industrial Barcode Reader CLV690
Technical Specifications
- Version: Standard Density
- Connection type: Depending on the cloning plug used
- Sensor type: Line scanner
- Optical focus: Auto focus or dynamic focus control
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Laser, visible red 660 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 60°
- Reading distance: 500 mm to 2,100 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.3 mm to 1 mm
- Heating: Included
- Front screen heating: Included
- Cold storage applications: Supported
- Supply voltage: 21.6 V DC to 28.8 V DC
- Power consumption: 78 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Weight: 1,500 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: -35 °C to +35 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- Standard Density version with auto focus and dynamic focus control options
- Front reading field with laser light spot, visible red 660 nm
- Reading distance from 500 mm to 2,100 mm
- High scanning frequency between 400 Hz and 1,200 Hz
- Supports up to 8 distance configurations with focus adjustment time ≤ 20 ms
- Heating and front screen heating for cold storage applications
- Reads multiple 1D barcode types including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Supports up to 50 codes per reading interval and 5,000 characters per reading interval
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning equipment and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Cold storage barcode reading
- Automated production line code verification
- Logistics and warehouse code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient operation reduces power consumption
- Supports cold storage applications minimizing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

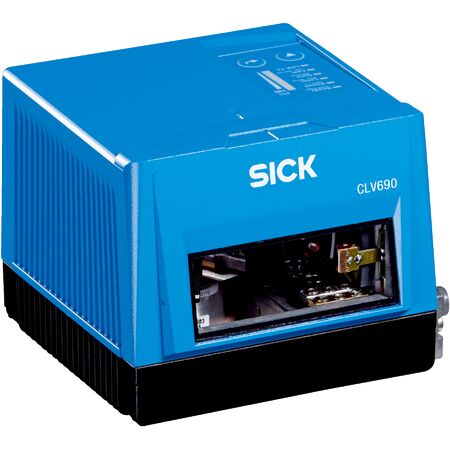

The SICK CLV690-0001 Standard Density Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications including cold storage environments.
