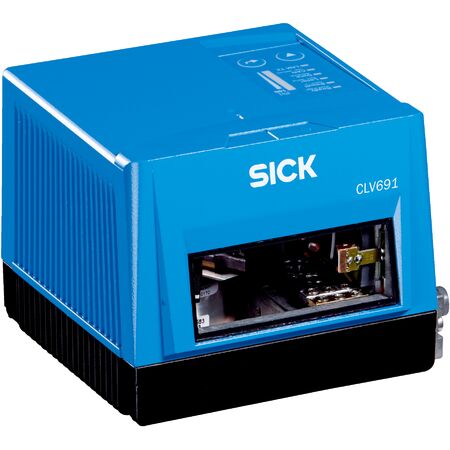

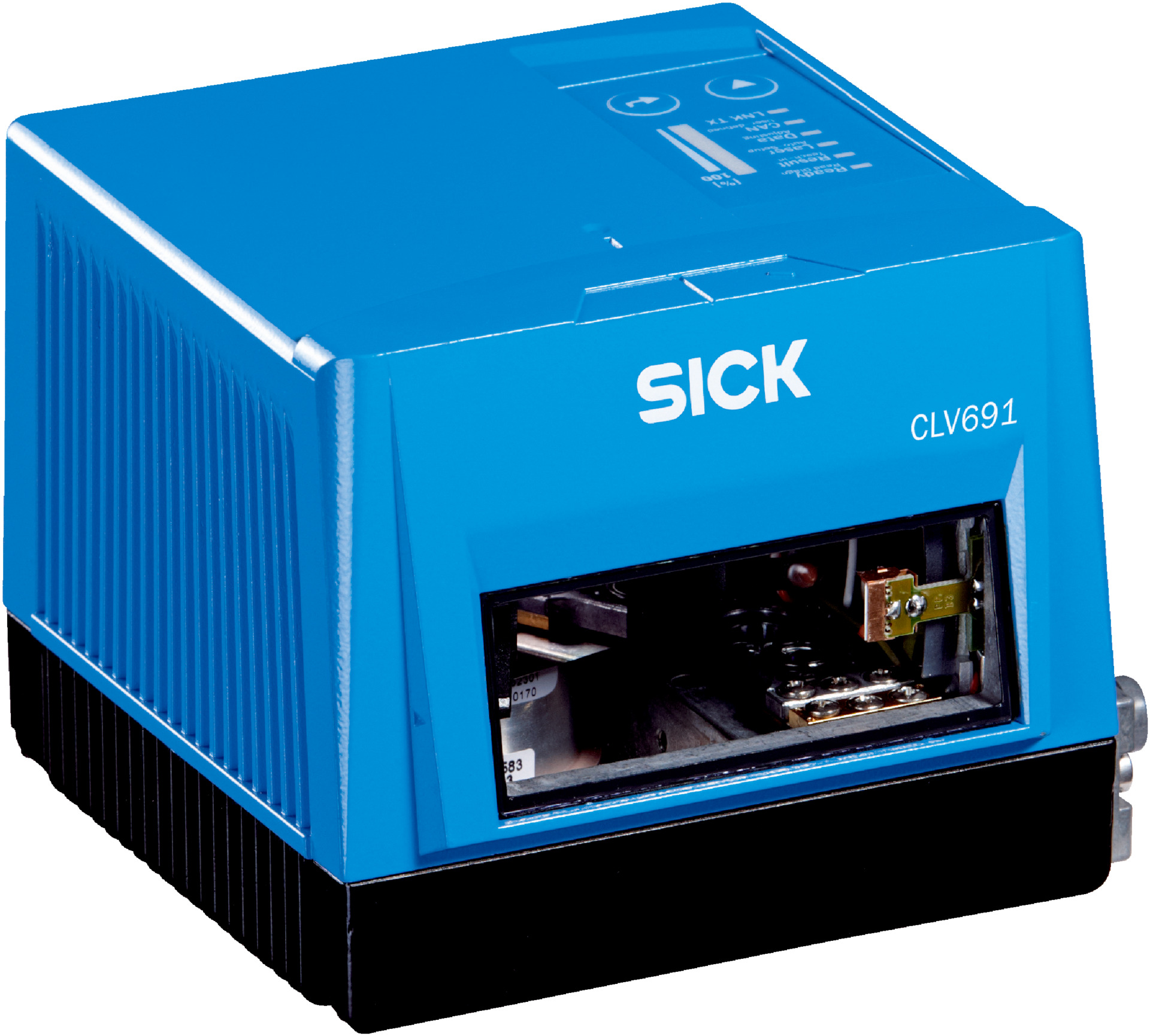

SICK CLV691-0000 Low Density Line Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
The SICK CLV691-0000 Low Density Line Scanner is designed for industrial automation, logistics, and quality control applications. With its auto focus and dynamic focus control, it reads 1D barcodes from 500 mm to 2200 mm, ensuring high reliability with a scanning frequency of 400 Hz to 1200 Hz. Built with a robust aluminum housing and IP65 rating, this scanner is perfect for harsh environments, making it a reliable choice for your barcode reading needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV691-0000 Low Density Line Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056604
Alternatively Known As: SICK CLV691 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, SICK CLV691-0000 Scanner
Technical Specifications
- Version: Low Density
- Connection type: Depending on the cloning plug used
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus with dynamic focus control option
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Visible red laser spot, 660 nm
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 60°
- Reading distance: 500 mm to 2200 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1.2 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 15 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (EN 60529/A1)
- Weight: Approximately 1.5 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Codes per reading interval: 1 to 50 (auto-discriminating)
- Characters per reading interval: 5,000
- Multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs for status and reading rate
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- Low density line scanner with auto focus and dynamic focus control
- Reads 1D barcodes including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Reading distance from 500 mm to 2200 mm with scanning frequency between 400 Hz and 1200 Hz
- Laser class 2 with visible red light spot at 660 nm wavelength
- Robust aluminum die cast housing with IP65 rating for harsh environments
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Integrated parameter storage in cloning plug and configuration via SOPAS ET software
- High reliability with MTBF of 100,000 hours and MTTF of 40,000 hours for laser diode
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning equipment and electrical safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for code scanning
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 15 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV691-0000 Low Density Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
