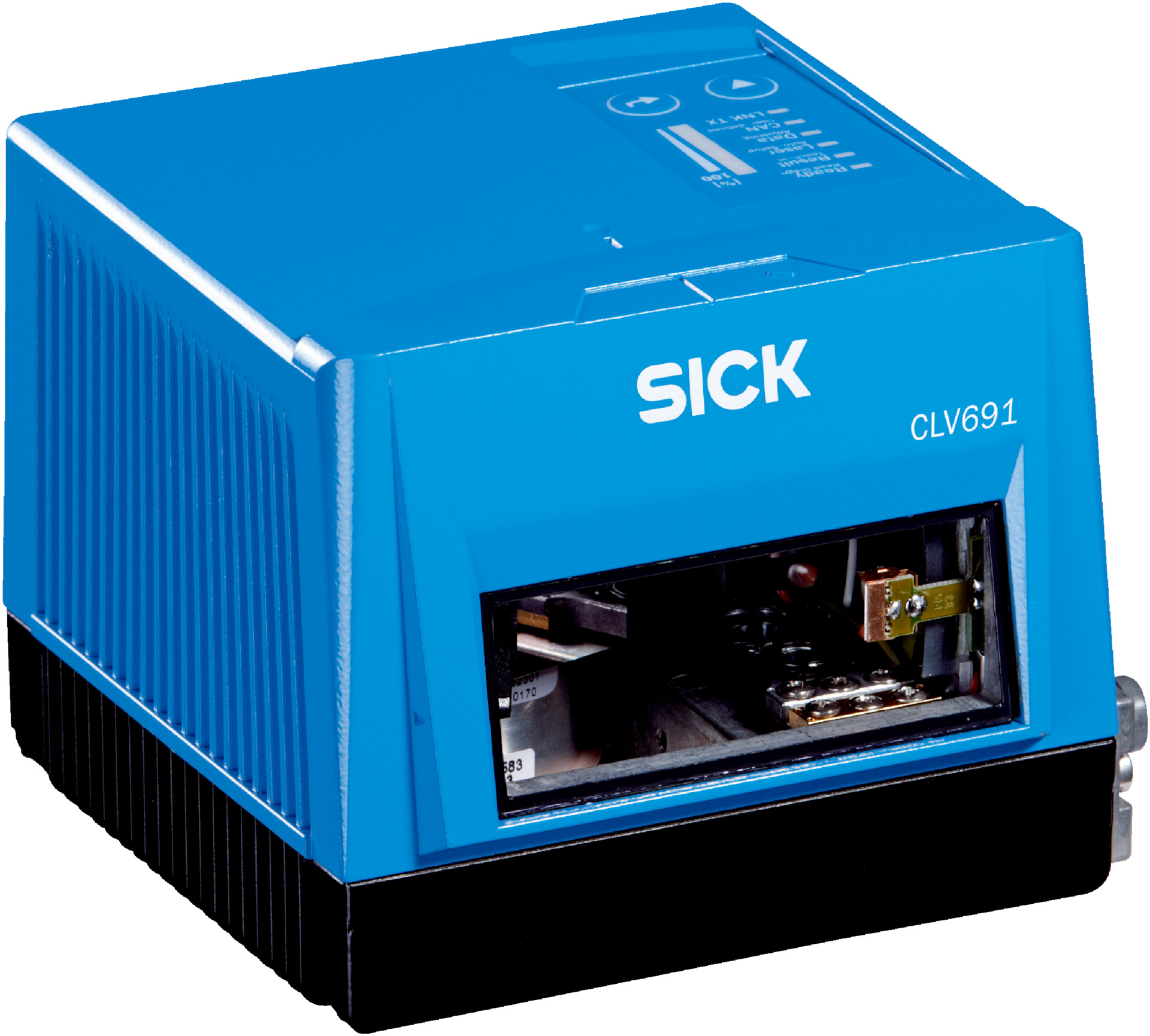

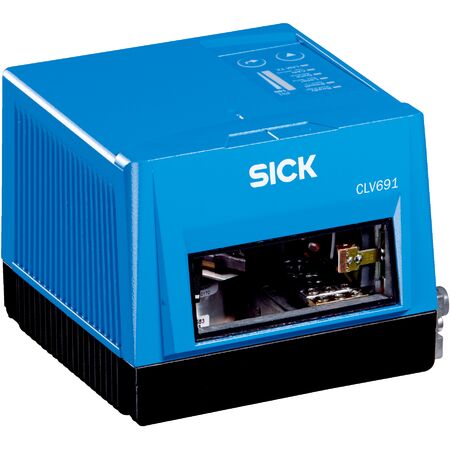

SICK CLV691-0001 Barcode Scanner | Auto Focus & IP65 Rated | 1D Code Reader | by SICK
The SICK CLV691-0001 Barcode Scanner is designed for industrial automation and cold storage applications, featuring auto focus and a robust IP65 rated housing. With a high scanning frequency of up to 1200 Hz and the ability to read various 1D barcode types, this scanner ensures efficient and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV691-0001 Barcode Scanner | Auto Focus & IP65 Rated | 1D Code Reader | by SICK
Brand: SICK
SKU: 1056606
Alternatively Known As: SICK CLV691 Barcode Scanner, SICK Line Scanner, Industrial Barcode Reader, Cold Storage Barcode Scanner
Technical Specifications
- Version: Low Density
- Connection type: Depending on the cloning plug used
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus (alternative: dynamic focus control)
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Light spot, laser, visible, red, 660 nm
- Laser class: 2, complies with 21 CFR 1040.10 except for conformance according to Laser Notice No. 56 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 60°
- Reading distance: 500 mm to 2,200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1.2 mm
- Heating: Yes
- Front screen heating: Yes
- Cold storage applications: Yes
- Supply voltage: 21.6 V DC to 28.8 V DC
- Power consumption: 78 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (EN 60529/A1 (2002-02))
- Weight: Approximately 1.5 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Code printing process: Label (printed codes)
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: -35 °C to +35 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- Auto focus with alternative dynamic focus control
- Front reading field with laser light spot (660 nm, red)
- Supports up to 8 distance configurations
- Heating and front screen heating for cold storage applications
- High scanning frequency from 400 Hz to 1200 Hz
- Reads 1D barcode types including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Integrated parameter storage in cloning plug
- Robust electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- Logistics and warehouse management
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption (78 W)
- Supports cold storage environments reducing need for additional protective equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV691-0001 Low Density Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and cold storage barcode scanning applications.
