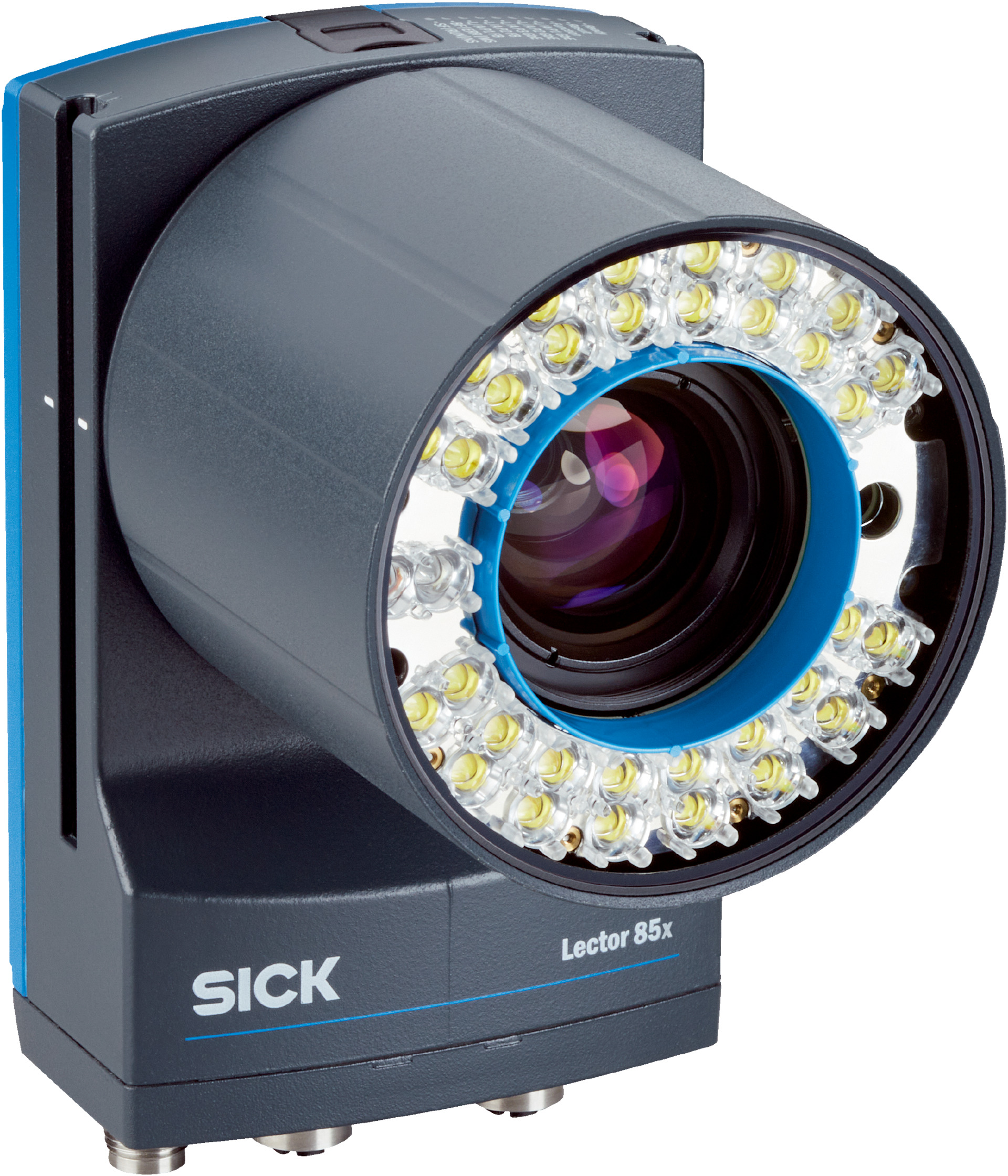

SICK CMOS Barcode Reader | 9MP Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK CMOS Barcode Reader is designed for high-performance barcode and 2D code reading in industrial automation. With a 9MP resolution and adjustable optical focus, it ensures precise scanning from 500 mm to 3000 mm. Built for durability with an IP65 rating and integrated LED illumination, this sensor is perfect for quality control and inspection systems in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 2176 px (9 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Optical focus: Adjustable manual
- Sensor type: CMOS monochrome
- Working range: 500 mm to 3000 mm
- Code resolution: ≥ 0.1 mm
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray (RAL 7016)
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Interfaces: Ethernet (10/100/1000 Mbit/s), EtherNet/IP™, CAN (500 kbit/s), Serial RS-232/422, USB 2.0, PROFINET
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Weight: 640 g without lens and cables
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 and laser class 1 safety compliant
- Supports reading of 1D, 2D, and stacked codes including QR, Data Matrix, PDF417
- Multiple industrial interfaces: Ethernet, EtherNet/IP™, CAN, Serial RS-232/422, USB, PROFINET
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Operating temperature range 0°C to +50°C
- High MTBF of 100,000 hours
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration of multiple industrial interfaces.
Applications
- Indoor area industrial automation
- Barcode and 2D code reading in manufacturing
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MCICXAF2SXXXX sensor is available for immediate purchase, ideal for indoor industrial automation and barcode reading applications.
