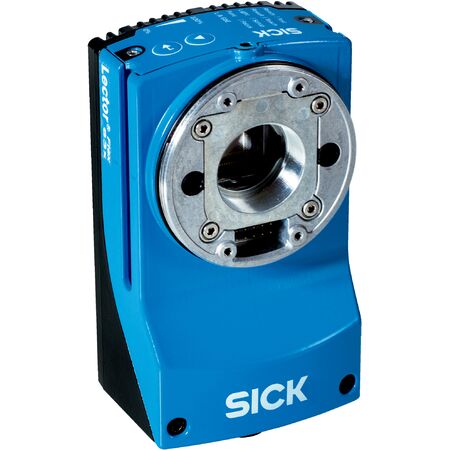

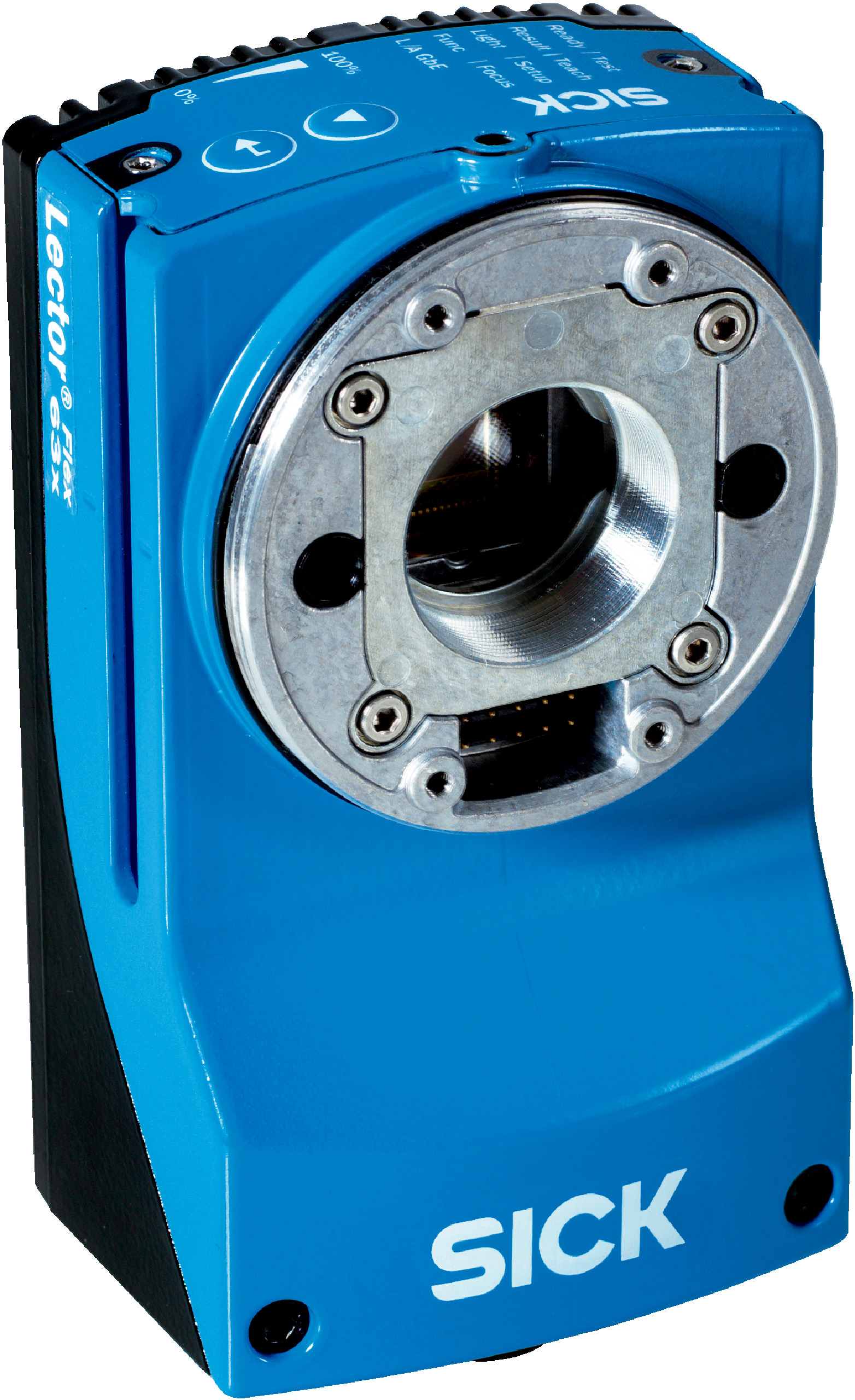

SICK CMOS Barcode Reader V2D631D | 1.3 Megapixel Resolution | Adjustable Optical Focus | IP67 Rated | by SICK
The SICK CMOS Barcode Reader V2D631D is designed for industrial automation, offering a 1.3 Megapixel resolution and adjustable optical focus for precise code reading. With a wide working range of 50 mm to 2200 mm and robust IP67-rated housing, it's perfect for logistics, manufacturing, and quality control applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 Megapixel)
- Optical focus: Adjustable manual
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, 2D, stacked, direct-marked codes
- Supported code types: GS1-128, UPC, EAN, Data Matrix ECC200, QR code, PDF417, and others
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4 configurable
- Digital outputs: 6 configurable
- Indicators: 11 LEDs, beeper
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- Wide working range from 50 mm to 2200 mm
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Robust aluminum die-cast housing with IP67 rating for harsh environments
- Supports reading of 1D, 2D, stacked, and direct-marked codes
- Configurable digital inputs and outputs with multiple feedback indicators
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and manufacturing for barcode and code reading
- Logistics and warehousing for package and product identification
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data transmission reducing paper and manual processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631D-MXCXB0 sensor is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
