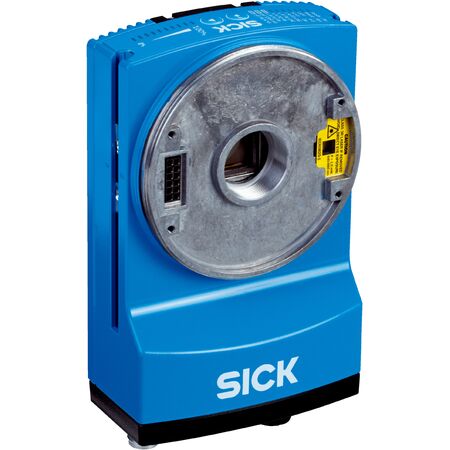

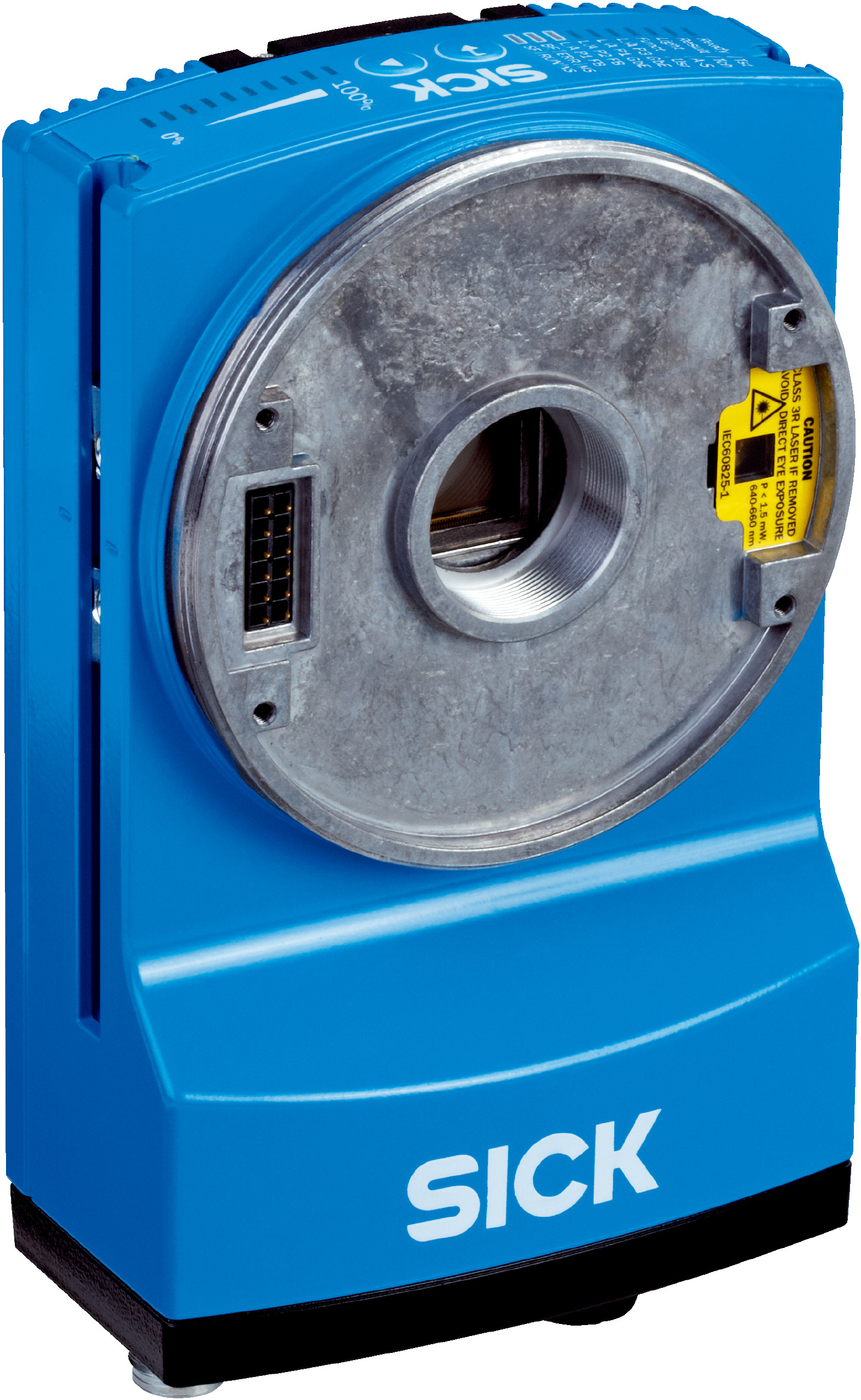

SICK CMOS Barcode Reader V2D642R-MCXXA6 | 1.7MP Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK CMOS Barcode Reader V2D642R-MCXXA6 features a 1.7MP monochrome sensor and adjustable optical focus, making it perfect for industrial automation and logistics applications. With a high scanning frequency of 40 Hz and support for various barcode types, this robust reader ensures reliable performance in quality control and inspection systems. Its IP65-rated aluminum housing guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 px x 1088 px (1.7 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630 nm to 680 nm, Class 1
- Lens: C-mount, 2/3" optical format
- Scanning frequency: 40 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: 1x M12 17-pin plug, 2x M12 8-pin sockets, 1x M8 4-pin socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- Weight: 635 g
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.7 Megapixel resolution (1600 x 1088 px)
- Laser alignment aid with Class 1 laser safety
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 40 Hz at full resolution
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Wide operating temperature range from 0°C to +50°C
- Internal image storage of 512 MB and optional microSD card support
- Comprehensive optical and acoustic indicators for status feedback
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure proper integration and safety compliance.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product tracking
- Quality control and inspection systems
- Material handling and sorting systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient 24 V DC power supply minimizes power consumption
- Long MTBF of 100,000 hours reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D642R-MCXXA6 sensor is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
