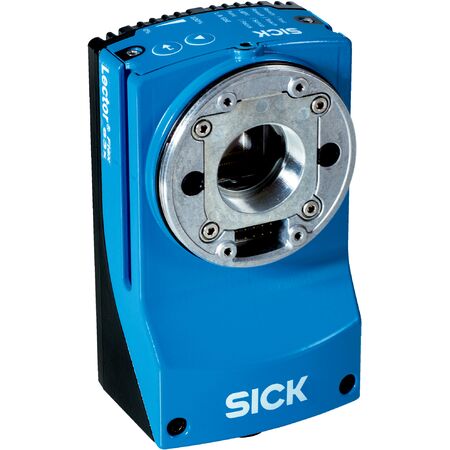

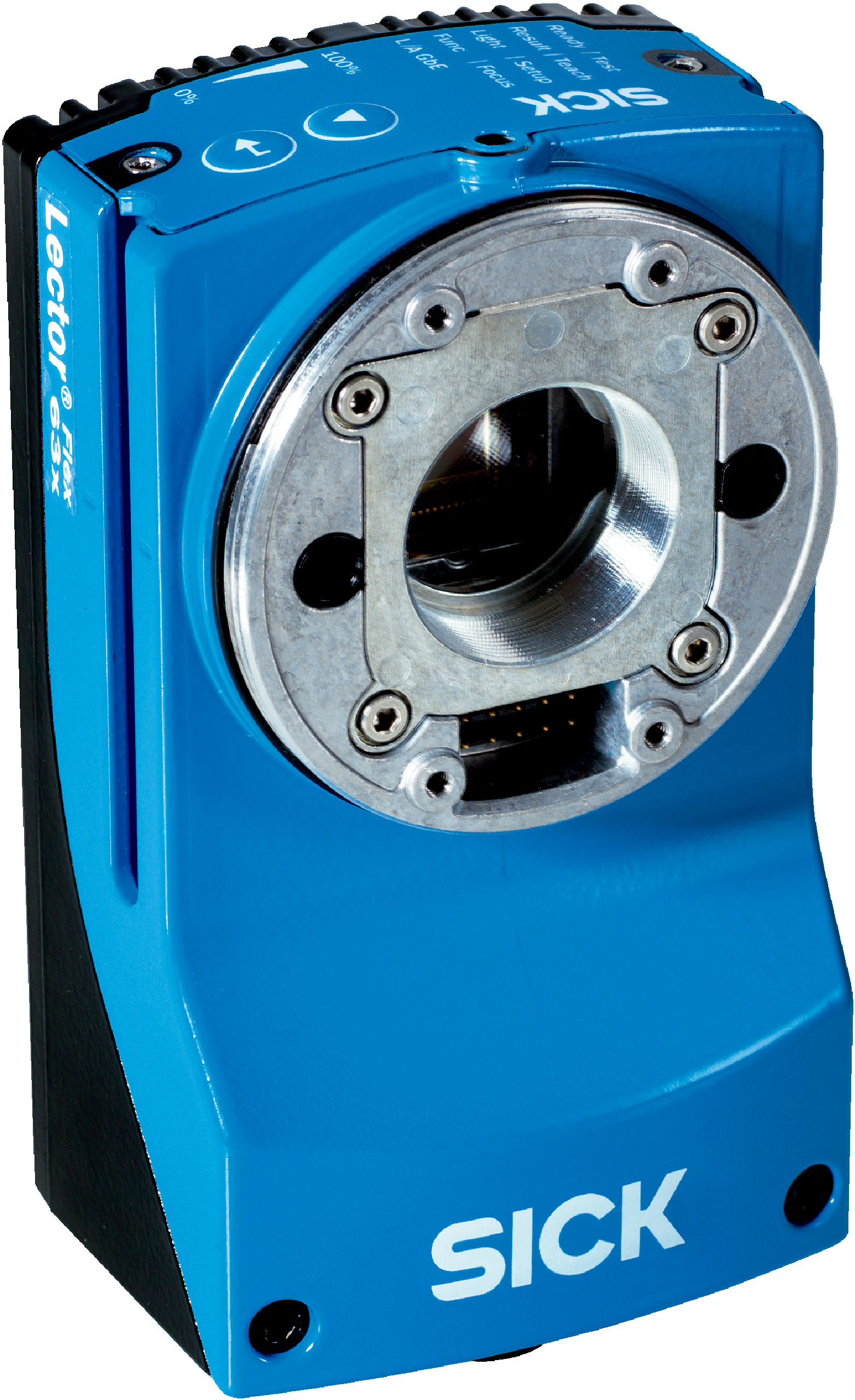

SICK CMOS Barcode Scanner | 1.9MP Resolution | Adjustable Optical Focus | IP67 Rated | by SICK
The SICK CMOS Barcode Scanner is designed for industrial automation, featuring a 1.9MP resolution and adjustable optical focus for precise code reading. With a robust IP67-rated aluminum housing, it operates effectively in challenging environments, making it ideal for logistics, quality control, and direct part marking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630-680 nm, Class 1
- Lens: C-mount (compact), optical format 1/1.8" (ordered separately)
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, 2D, stacked, direct-marked codes
- Supported code types: GS1-128, UPC, EAN, Data Matrix ECC200, QR code, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4 configurable
- Digital outputs: 6 configurable
- Indicators: 11 LEDs, beeper
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- High scanning frequency up to 50 Hz at full resolution
- Wide working range from 50 mm to 2200 mm
- Robust aluminum die-cast housing with IP67 protection
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Supports reading of 1D, 2D, and stacked codes including GS1, QR, Data Matrix, PDF417
- Configurable digital inputs and outputs with optical and acoustic indicators
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card for image and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehouse management
- Quality control and traceability in manufacturing
- Direct part marking and product identification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632D-MXCXB0 sensor is available for immediate purchase, ideal for industrial automation and barcode reading applications.
