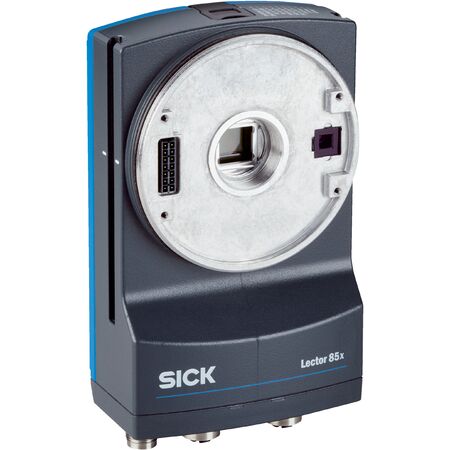

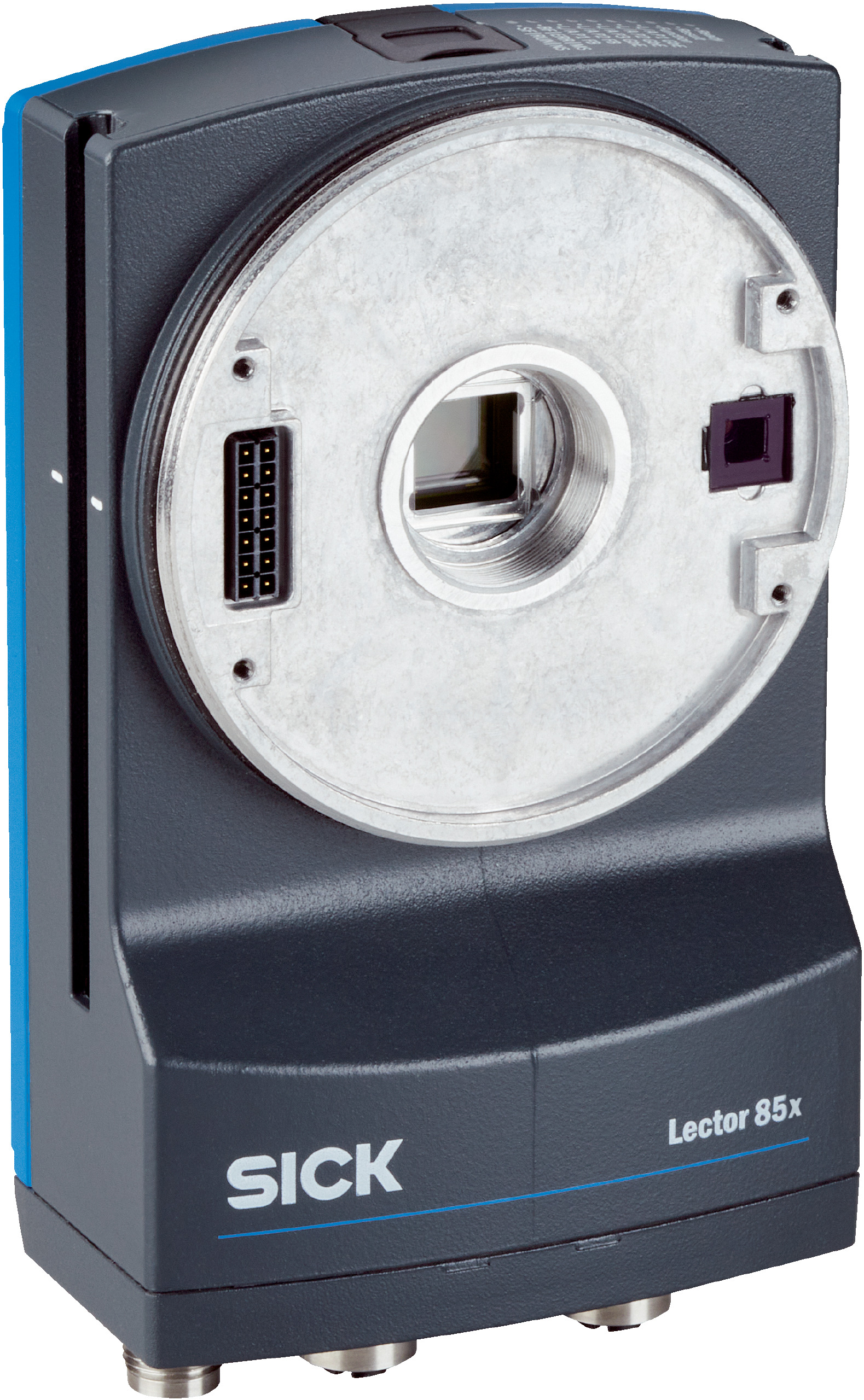

SICK CMOS Barcode Scanner V2D8512R | 12 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner V2D8512R is designed for high-resolution code reading with a 12 Megapixel sensor and adjustable optical focus. Ideal for indoor applications, this robust scanner supports various barcode types and features multiple interfaces for seamless integration. With an IP65 rating and high vibration resistance, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Optical focus: Adjustable manual
- Focal length options: 12 mm, 16 mm, 25 mm (lenses ordered separately)
- Working range: 500 mm to 3000 mm
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- Interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/Os
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Supports 1D, 2D, and stacked barcode types including QR code, Data Matrix ECC200, PDF417
- Laser alignment aid with Class 1 laser safety
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet, CAN, Serial (RS-232, RS-422), and USB 2.0
- High vibration and shock resistance
- Wide ambient operating temperature range from 0°C to +50°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and scanning
Standards & Compliance
- Complies with AS/NZS 61010.1 Electrical Equipment Safety Standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with typical power consumption of 24 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MCXXXAL0SXXXX sensor is available for immediate purchase, ideal for industrial indoor barcode scanning and automated inspection applications.
