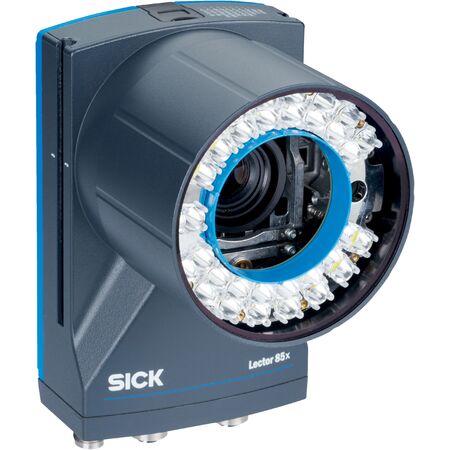

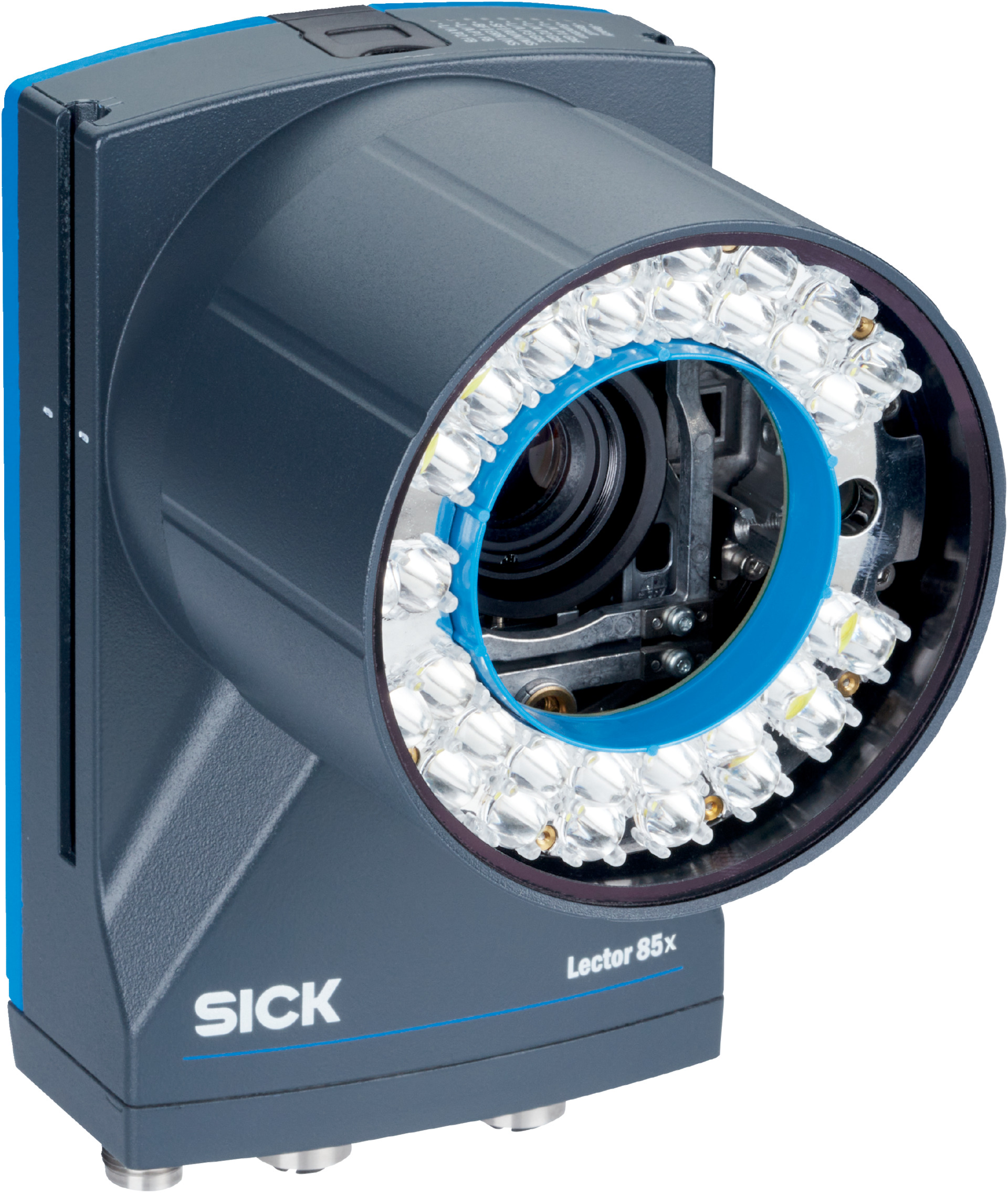

SICK CMOS Barcode Scanner | 12 Megapixel Sensor | Integrated Red LED | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner features a dynamic 12 megapixel monochrome sensor and integrated red LED illumination, making it perfect for indoor industrial automation and logistics. With a robust aluminum housing and IP65 rating, this scanner ensures durability and reliability in quality control and traceability applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 px x 3008 px (12 Megapixel)
- Illumination: Integrated red LED, 32 LEDs, 47° aperture angle
- Laser class: Class 1 laser, compliant with EN 60825-1:2014+A11:2021
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 15 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: 1x M12 17-pin male, 1x M12 5-pin male, 3x M12 8-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, color anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with 12 megapixel CMOS monochrome sensor
- Integrated red LED illumination with 32 LEDs and 47° aperture angle
- Supports 1D, 2D, and stacked code types including QR, Data Matrix, and PDF417
- Multiple interfaces including Ethernet, CAN, Serial (RS-232, RS-422), and USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Laser alignment aid with Class 1 laser safety compliance
- High scanning frequency of 15 Hz with code resolution ≥ 0.1 mm
- Wide working range from 500 mm to 2,400 mm
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Operating temperature range 0 °C to +50 °C with vibration and shock resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode and code scanning
- Industrial automation and logistics
- Quality control and traceability in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with RoHS and China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MEMEXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial and automation applications.
