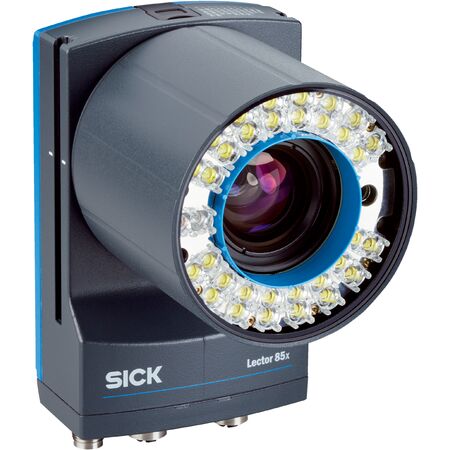

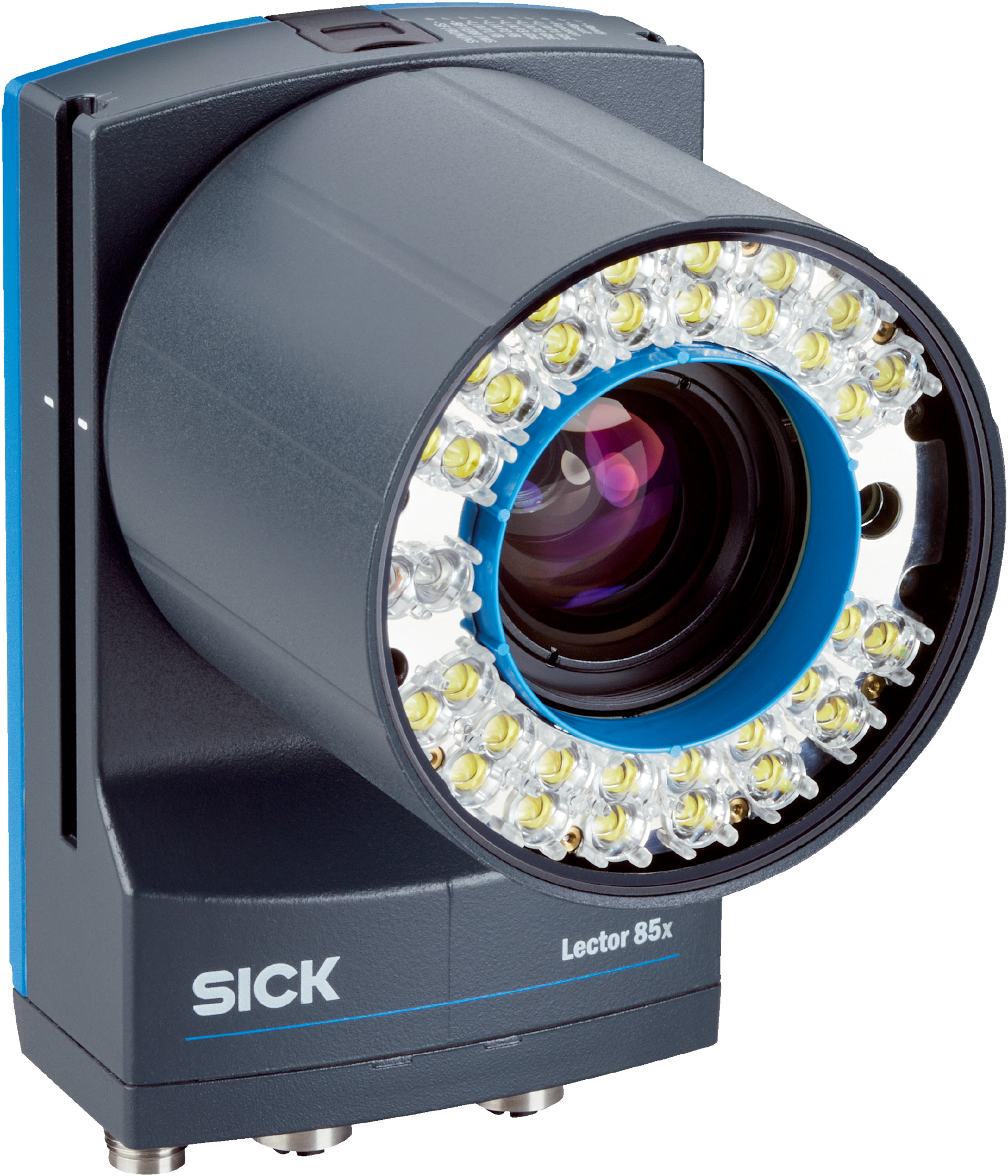

SICK CMOS Barcode Scanner | 12MP Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner features a high-resolution 12MP sensor with adjustable optical focus, making it perfect for indoor barcode scanning in industrial automation and logistics. With integrated white LED illumination and robust aluminum housing, this scanner ensures reliable performance and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 x 3008 px (12 MPixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Laser class: Class 1 compliant with IEC 60825-1:2014+A11:2021
- Focal length: 25 mm, Aperture: 1.8 to 22, C-mount lens
- Scanning frequency: 15 Hz at 12 MP resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: M12 connectors for power, CAN, serial, Ethernet
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W, Max current 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- Interfaces: Ethernet (10/100/1000 Mbit/s), CAN (500 kbit/s), Serial RS-232/422, USB 2.0
- Digital inputs: 2 insulated inputs, 13 configurable digital I/Os
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: ≤ 90% non-condensing
- EMC: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED and laser classes compliant with EC and EN standards
- Supports 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- Multiple interfaces: Ethernet, CAN, Serial RS-232/422, USB 2.0
- Robust aluminum die cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Operating temperature range 0°C to +50°C
- High MTBF of 100,000 hours
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
- Industrial automation and quality control
- Logistics and warehouse management
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MCKEXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial and logistics applications.
