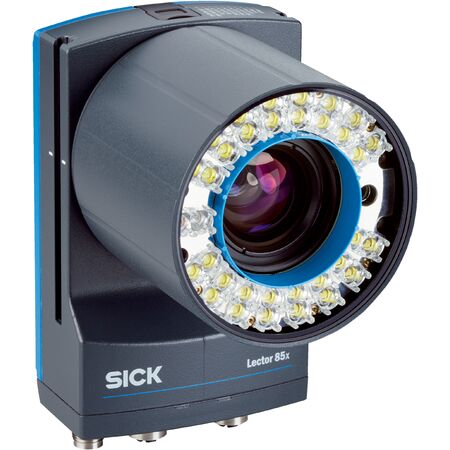

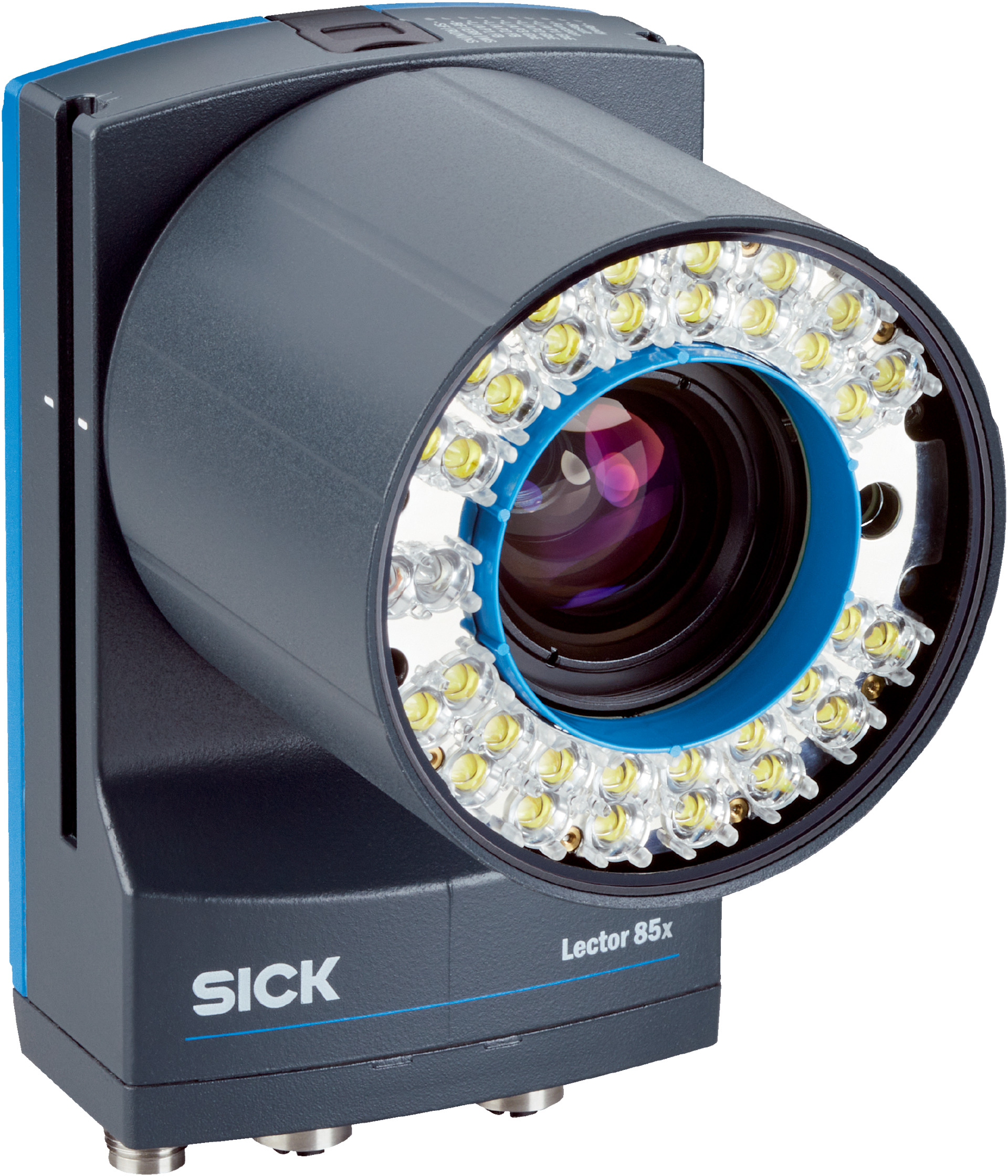

SICK CMOS Barcode Scanner | 12 MP Resolution | Integrated LED Illumination | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner is designed for high-performance indoor barcode scanning, featuring a 12 MP monochrome sensor with a resolution of 4096 x 3008 px and integrated white LED illumination. Ideal for industrial automation and logistics, this scanner offers a robust aluminum housing with an IP65 rating, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 x 3008 px (12 MP)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Lens: C-mount, 1" optical format, 16 mm focal length, aperture 1.8 to 16
- Scanning frequency: 15 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors (17-pin male, 5-pin female, 4-pin D-coded, 8-pin X-coded)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Weight: 640 g without lens and cables
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant
- C-mount lens with 1" optical format, 16 mm focal length, aperture 1.8 to 16
- Scanning frequency of 15 Hz at 12 MP resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple industrial interfaces including Ethernet, EtherNet/IP™, CAN, Serial RS-232/422, USB 2.0, PROFINET
- Robust aluminum die cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Operating temperature 0 °C to +50 °C
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Shock and vibration resistant per EN 60068 standards
- Web server operator interface and SOPASair configuration software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Indoor area barcode scanning
- Industrial automation and logistics
- Quality control and traceability in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK V2D8512R-1MCIDXAF2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning applications.
