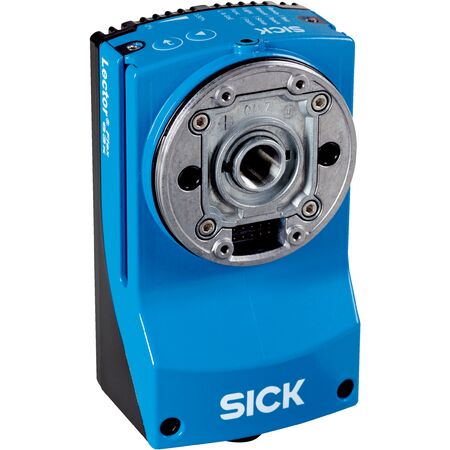

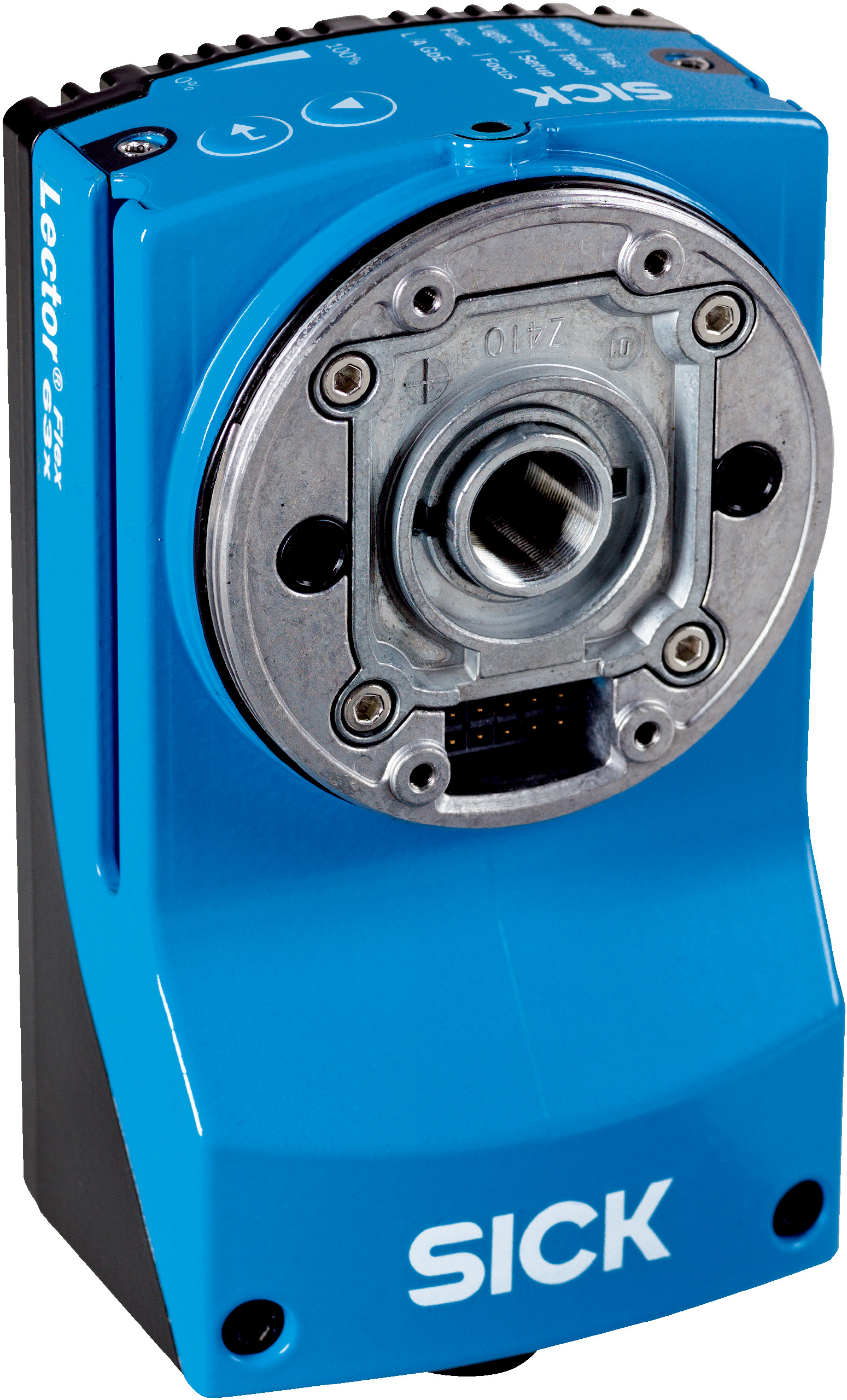

SICK CMOS Barcode Scanner | 1,600 x 1,200 Resolution | Adjustable Optical Focus | IP67 Rated | by SICK
The SICK CMOS Barcode Scanner is designed for industrial automation, featuring a high resolution of 1,600 x 1,200 pixels and an adjustable optical focus. With a robust IP67-rated housing, it excels in logistics and quality control applications, ensuring reliable barcode and 2D code reading even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome
- Resolution: 1,600 px x 1,200 px (1.9 Mpixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630 nm to 680 nm, Class 1
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2,200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable codes: 1D, stacked, 2D, direct-marked codes
- Supported barcode types: GS1-128, UPC, EAN, Code 39, Code 128, Pharmacode, GS1 DataBar, Codabar, USPS, Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
- Stacked codes: PDF417
- Code qualification standards: ISO/IEC 16022, 15415, 18004
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Indicators: 11 LEDs, beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1,600 px x 1,200 px resolution (1.9 Mpixel)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- High scanning frequency up to 50 Hz at full resolution
- Wide working range from 50 mm to 2,200 mm
- Robust aluminum die cast housing with IP67 protection
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Supports reading of 1D, 2D, and stacked barcodes including GS1, QR code, Data Matrix ECC200, PDF417
- Configurable digital inputs and outputs with optical and acoustic indicators
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product identification
- Quality control and traceability in production lines
- Direct part marking and code verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632D-MXSXB0 sensor is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
