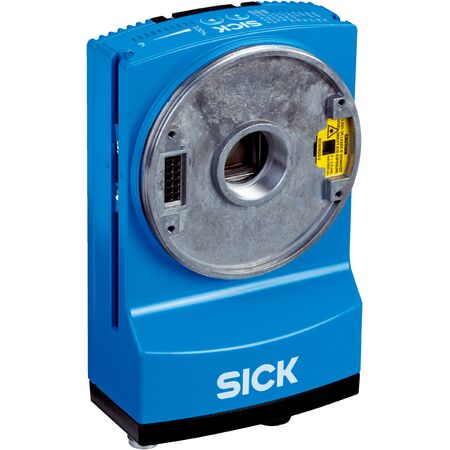

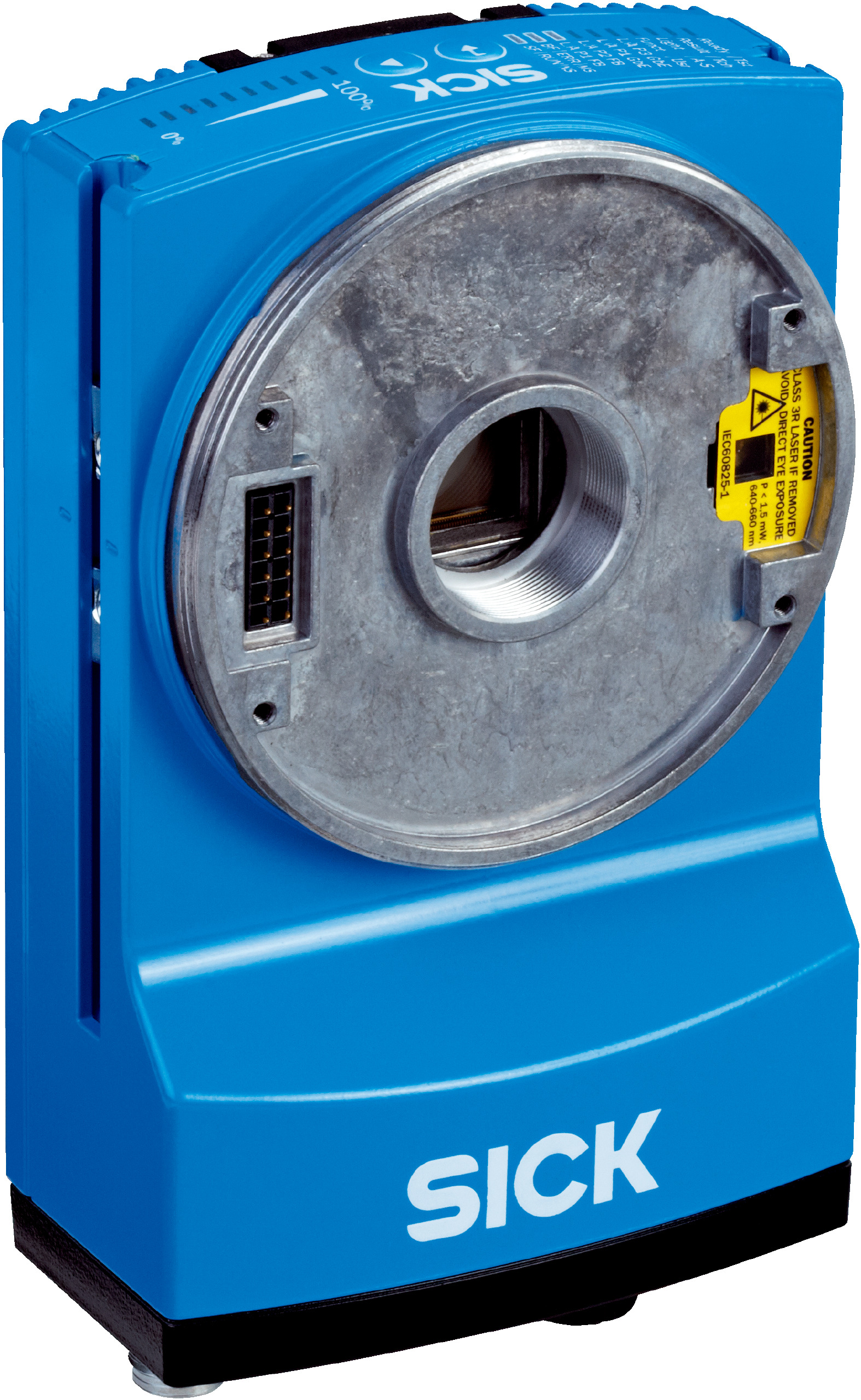

SICK CMOS Barcode Scanner V2D652R | 2.1MP Resolution | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner V2D652R is designed for industrial automation, featuring a 2.1MP monochrome sensor and adjustable optical focus. With a high scanning frequency of 70 Hz and support for various barcode types, it's perfect for logistics, quality control, and manufacturing applications. Its robust IP65-rated housing ensures durability in demanding environments, making it an ideal choice for reliable barcode reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 px x 1088 px (2.1 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630 nm to 680 nm, Class 1
- Scanning frequency: 70 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket, M8 4-pin socket, M12 4-pin connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, stacked codes
- Supported barcode types: GS1-128, UPC, EAN, QR code, Data Matrix ECC200, PDF417, and others
- Interfaces: Ethernet (10/100/1000 Mbit/s), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 16 GB
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus with 2.1 Megapixel CMOS monochrome sensor
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- Laser alignment aid with Class 1 laser safety compliance
- High scanning frequency of 70 Hz with code resolution ≥ 0.1 mm
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating for protection against dust and water
- Wide ambient operating temperature range from 0 °C to +50 °C
- Internal image storage of 512 MB and optional microSD card support up to 16 GB
- Comprehensive digital and configurable inputs and outputs for flexible integration
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with typical power consumption of 20 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D652R-MCXXH6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
