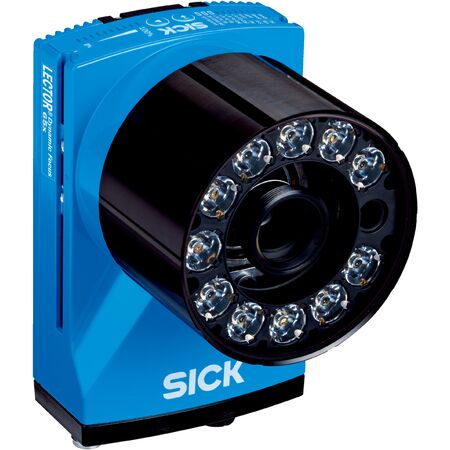

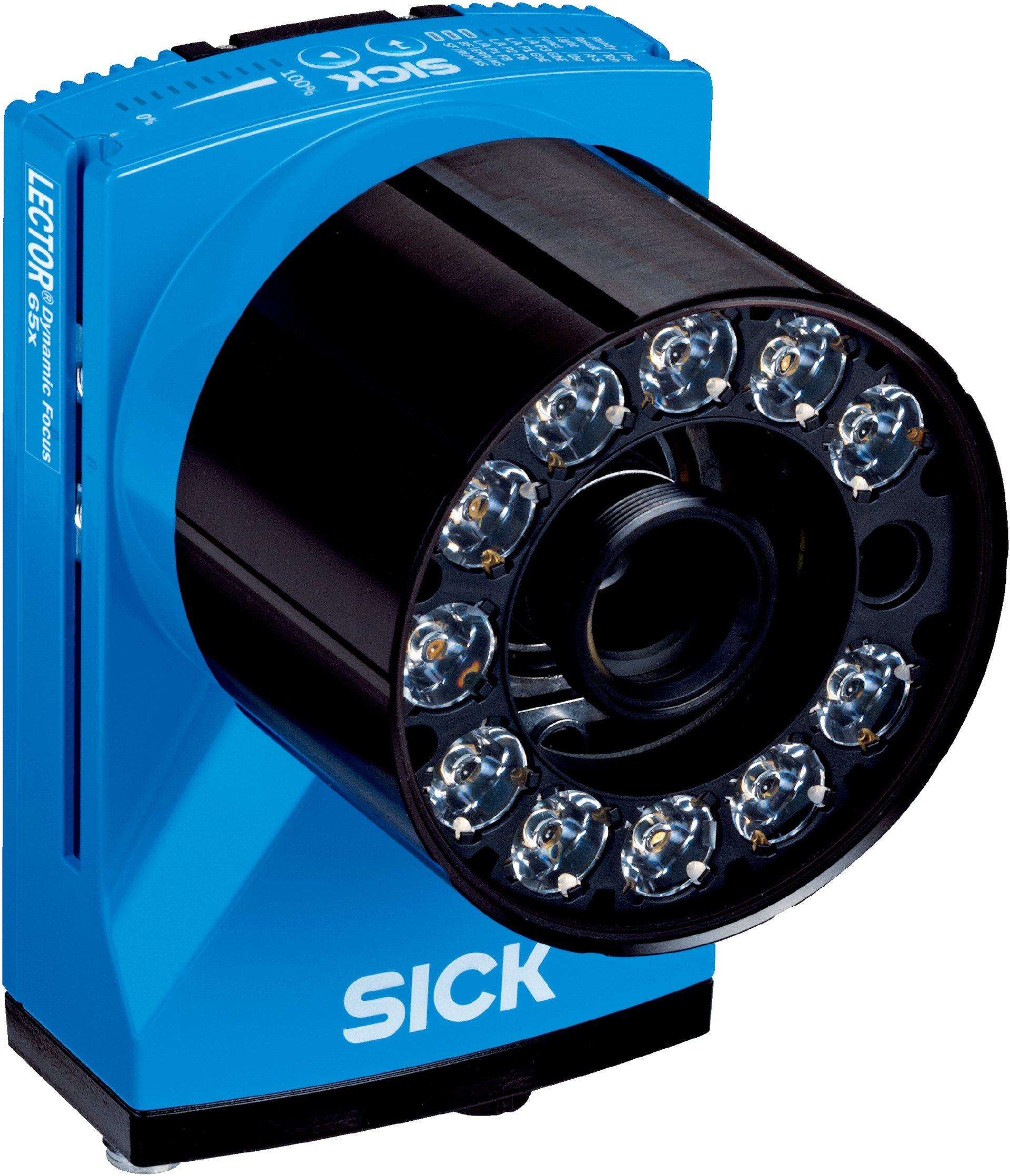

SICK CMOS Barcode Scanner V2D652R | 2048 x 1088 Resolution | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner V2D652R is designed for industrial automation and logistics, featuring a high-resolution 2048 x 1088 pixels sensor and dynamic focus control for precise scanning. With integrated white LED illumination and robust IP65-rated housing, it ensures reliable performance in various environments, making it ideal for quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 1088 pixels
- Optical focus: Dynamic focus control
- Illumination: Integrated white LED, Risk group 1
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 54 mm focal length, aperture 8
- Scanning frequency: 70 Hz at 2 megapixels resolution
- Code resolution: ≥ 0.12 mm
- Working range: 670 mm to 2000 mm
- Connection types: M12 plugs and sockets, M8 USB socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including GS1, QR, Data Matrix, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4, Digital outputs: 6, Configurable inputs/outputs
- Indicators: 21 LEDs, acoustic beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Humidity: 90% non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- 2,048 px x 1,088 px (2.1 Mpixel) sensor resolution
- Integrated white LED illumination with risk group 1 safety
- Green visible LED feedback spot and red laser alignment aid
- Supports 1D, 2D, and stacked barcode types including GS1, QR, Data Matrix, PDF417
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0 °C to +50 °C
- 512 MB internal image storage and optional microSD card support
- Comprehensive digital and configurable inputs/outputs for integration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D652R-MEWHA6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
