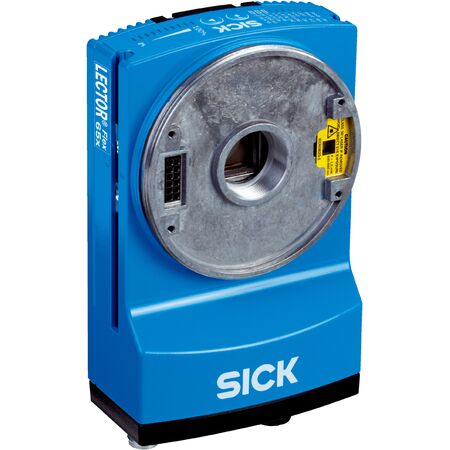

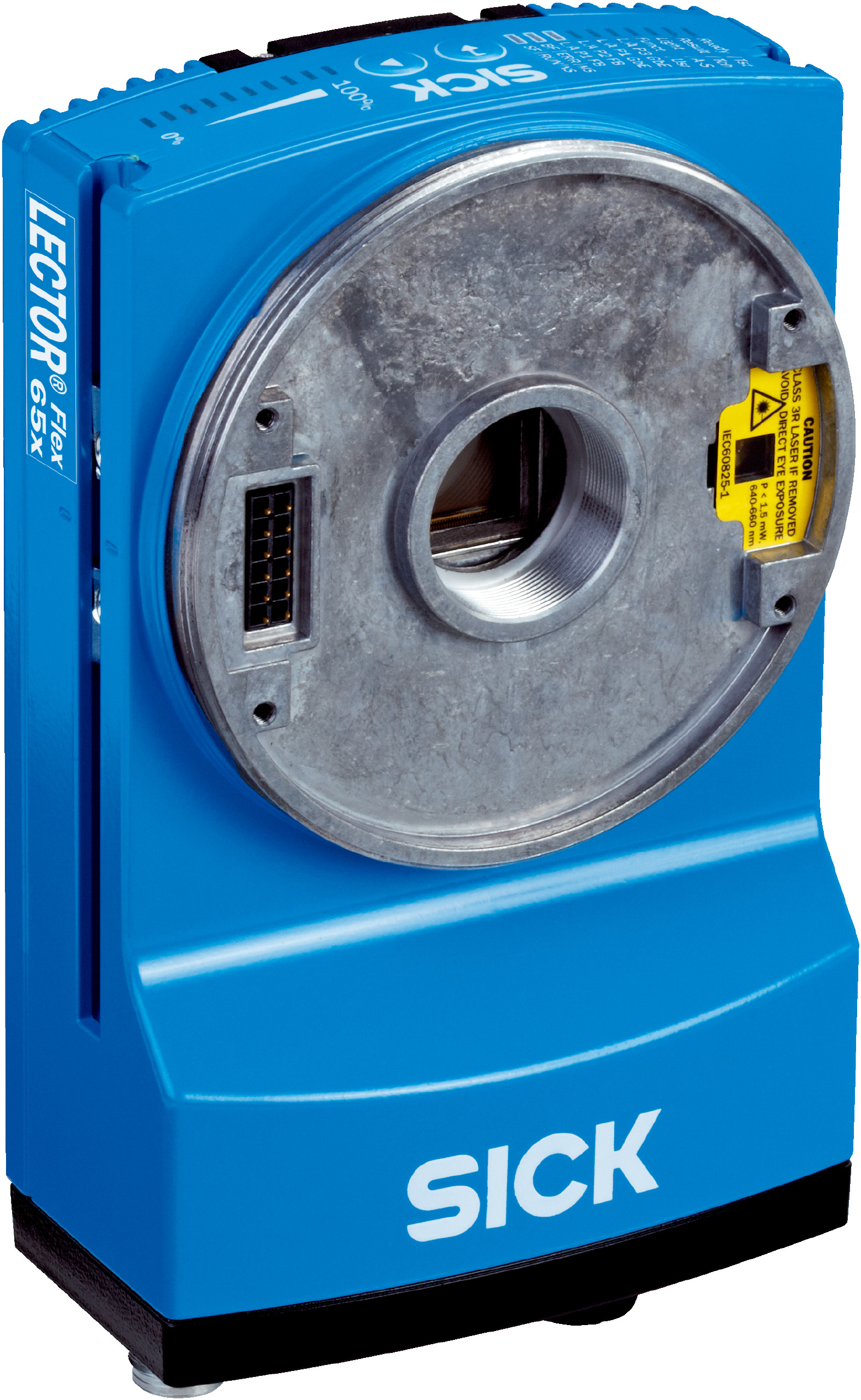

SICK CMOS Barcode Scanner V2D654R | 4.2MP Resolution | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner V2D654R is designed for industrial automation, featuring a 4.2MP monochrome sensor and adjustable manual optical focus. With a high scanning frequency of 40 Hz and robust IP65-rated housing, it's perfect for logistics, quality control, and manufacturing applications, ensuring reliable barcode reading in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 Megapixel)
- Optical focus: Adjustable manual
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Scanning frequency: 40 Hz at 4 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: 1x M12 17-pin plug, 2x M12 8-pin sockets, 1x M8 4-pin socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, color light blue (RAL 5012)
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, stacked codes
- Supported barcode types: GS1-128, UPC, EAN, QR code, Data Matrix ECC200, MaxiCode, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs/outputs: 4 inputs, 6 outputs configurable
- Indicators: 21 LEDs, acoustic beeper
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- Ambient light immunity: 2000 lx on code
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 2048 x 2048 px resolution (4.2 Megapixel)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- High scanning frequency of 40 Hz at 4 megapixels resolution
- Robust aluminum die-cast housing with IP65 rating
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range 0°C to +50°C with high ambient light immunity
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with typical power consumption of 20 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D654R-MCXXA6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
