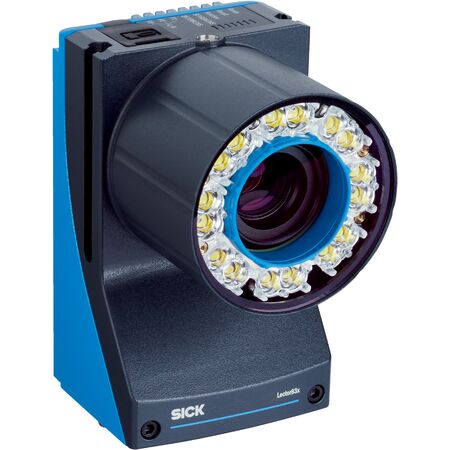

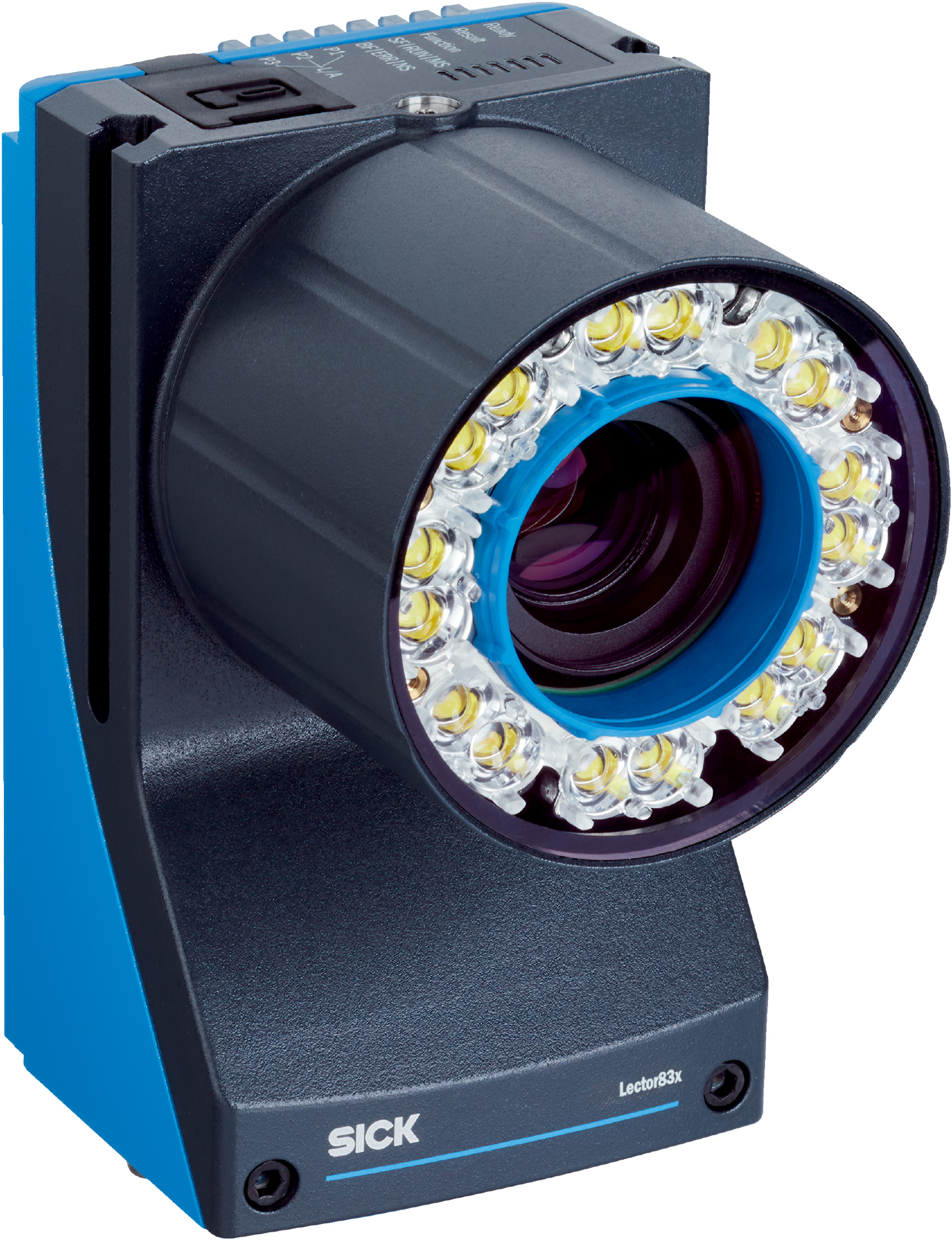

SICK CMOS Barcode Scanner V2D8305R | 5 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner V2D8305R is designed for industrial automation, featuring a 5 Megapixel CMOS sensor and adjustable manual optical focus. With integrated infrared LED illumination and a robust IP65-rated housing, this scanner excels in logistics, manufacturing quality control, and packaging verification. Its multiple industrial interfaces ensure seamless integration into various systems, making it a reliable choice for barcode reading applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2464 x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated infrared (NIR) LED, 31° aperture angle
- Lens: C-mount, 16 mm focal length, aperture 1.8 to 11
- Scanning frequency: 30 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 200 mm to 2500 mm
- Connection types: 1x M12 17-pin male (power, CAN, serial, I/O), 1x M8 4-pin socket (external illumination, I/O), 2x M12 4-pin D-coded (Ethernet), 1x M12 8-pin X-coded (Gigabit Ethernet)
- Supply voltage: 24 V DC ±20%
- Power consumption: Typical 21 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with anti-reflection coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and related standards
- MTBF: 100,000 hours
- Interfaces: Ethernet (10/100/1000 Mbit/s), CAN (500 kbit/s), Serial (RS-232/422), USB 2.0, EtherNet/IP™, PROFINET
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Optical indicators: 8 status LEDs
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD (not included)
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Altitude: < 5000 m
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- Complete device with adjustable manual optical focus
- CMOS monochrome sensor with 5 Megapixel resolution (2464 x 2048 px)
- Integrated infrared (NIR) LED illumination with 31° aperture angle
- C-mount lens with 16 mm focal length and aperture range 1.8 to 11
- High scanning frequency of 30 Hz
- Reads 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- Multiple industrial interfaces: Ethernet, CAN, Serial (RS-232/422), USB 2.0, EtherNet/IP™, PROFINET
- Robust aluminum die-cast housing with IP65 rating and anti-reflection coated glass window
- Wide ambient operating temperature range 0°C to +50°C
- Supports external illumination control and digital inputs/outputs
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing quality control
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports digital data transmission minimizing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK V2D8305R-1MCDDXAF2SXXXX barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing quality control applications.
