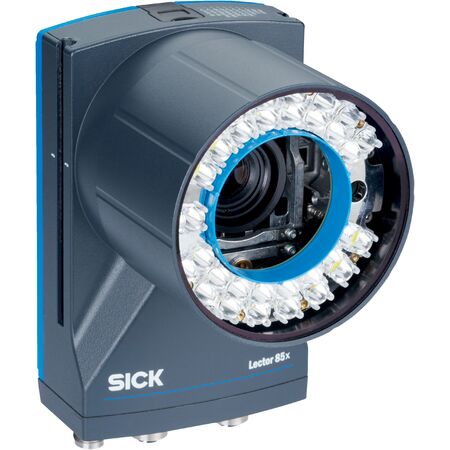

SICK CMOS Barcode Scanner V2D8512R-1WEKEXAL2SXXXX | 12 Mpixel Resolution | IP65 Rated | by SICK
The SICK CMOS Barcode Scanner V2D8512R-1WEKEXAL2SXXXX features a high-resolution 12 Mpixel sensor and integrated white LED illumination, making it perfect for indoor barcode scanning in industrial automation and logistics. With a robust aluminum housing and IP65 rating, it ensures durability and reliability in demanding environments, while its wide working range of 500 mm to 2,400 mm allows for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 6,048 px x 2,048 px (12 Mpixel)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Laser class: Class 1 compliant with EN 60825-1:2014+A11:2021
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 15 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2,400 mm
- Connection types: 1x M12 17-pin male, 1x M12 5-pin male, 3x M12 8-pin female
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, 4 configurable digital I/Os
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 6,048 px x 2,048 px (12 Mpixel, ULTRASCENE)
- Integrated white LED illumination with 32 LEDs
- Risk group 1 LED and laser safety compliant
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 15 Hz at 12 megapixels resolution
- Reads 1D, 2D, and stacked codes including QR, Data Matrix, PDF417
- Multiple interfaces: Ethernet, CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die cast housing with IP65 rating
- Wide working range from 500 mm to 2,400 mm
- Electromagnetic compatibility and vibration/shock resistance certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
- Industrial automation and quality control
- Logistics and warehouse management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK V2D8512R-1WEKEXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning applications.
