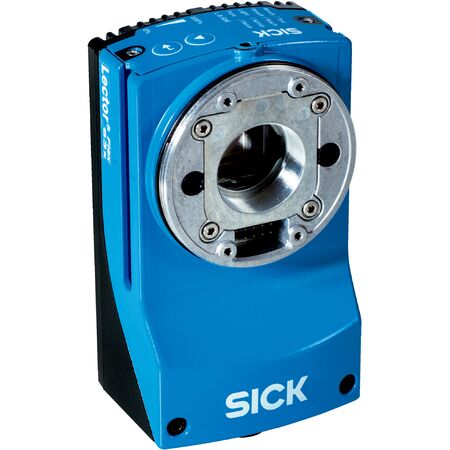

SICK CMOS Sensor V2D631R | 1.3MP Resolution | Adjustable Optical Focus | IP67 Rated | by SICK
The SICK CMOS Sensor V2D631R is a high-performance sensor featuring a 1.3MP resolution and adjustable manual optical focus, making it ideal for industrial automation and barcode reading applications. With a robust IP67 rated aluminum housing and multiple communication interfaces, this sensor ensures reliable performance in demanding environments, perfect for quality control and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor type: CMOS monochrome
- Resolution: 1280 px x 1024 px (1.3 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount (compact), optical format 1/1.8"
- Scanning frequency: Up to 50 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Indicators: 11 LEDs, beeper
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- High scanning frequency up to 50 Hz
- Wide working range from 50 mm to 2200 mm
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die-cast housing with IP67 rating
- Supports reading of 1D, 2D, and stacked barcodes
- Configurable digital inputs and outputs with optical and acoustic indicators
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure proper integration and safety.
Applications
- Industrial automation and manufacturing
- Barcode and 2D code reading
- Quality control and inspection
- Logistics and material handling
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient operation with typical power consumption of 10 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631R-MXCXB0 sensor is available for immediate purchase, ideal for industrial automation, barcode reading, and quality control applications.
