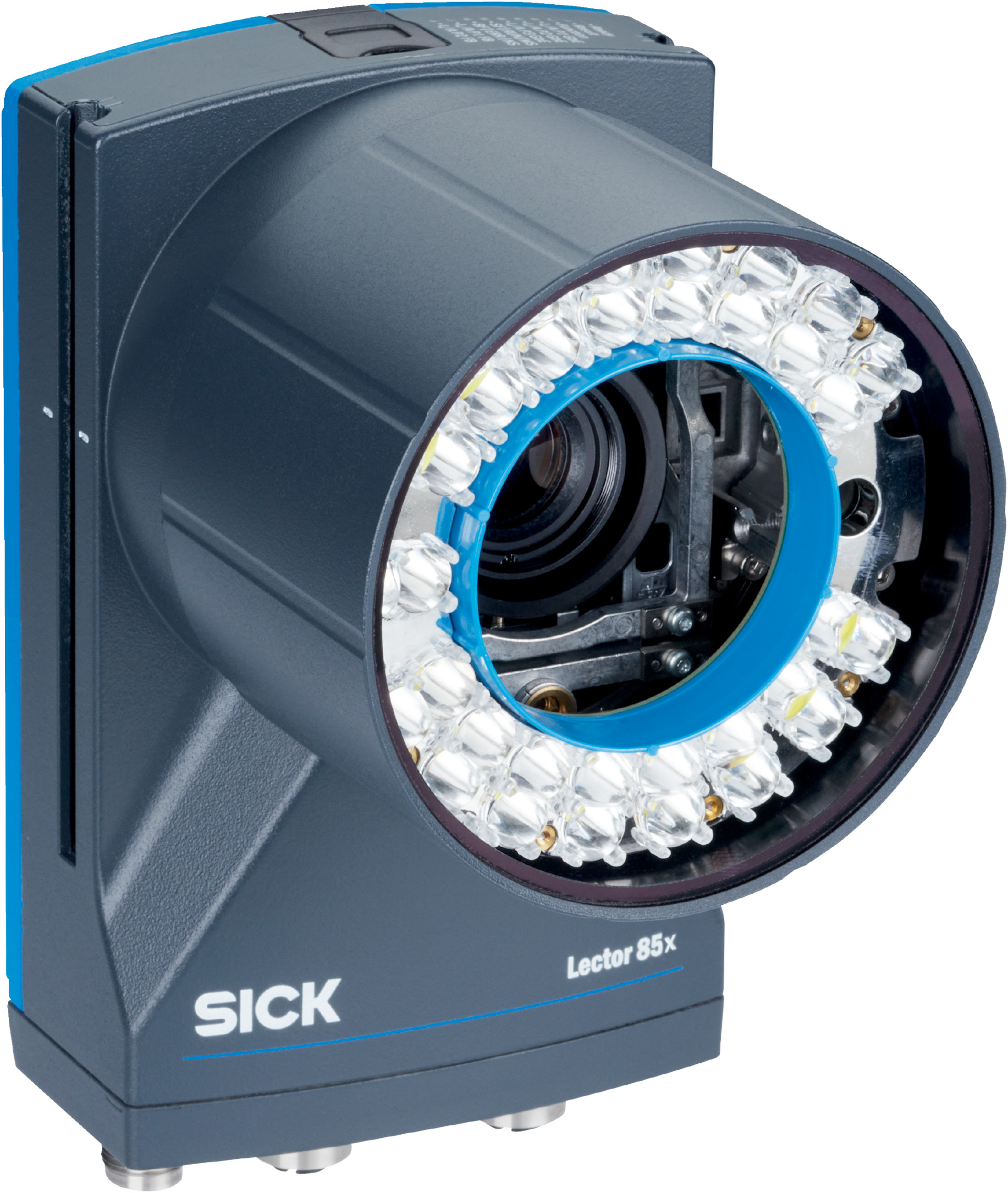

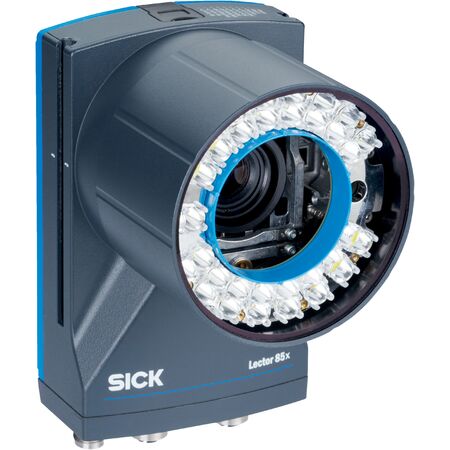

SICK CMOS Sensor V2D8505R | 5MP Resolution | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CMOS Sensor V2D8505R is designed for high-resolution code reading, featuring a 5MP resolution and dynamic focus control. Ideal for indoor industrial applications, it excels in barcode and 2D code scanning, ensuring reliable performance in manufacturing and logistics. With integrated LED illumination and robust aluminum housing, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2464 px x 2048 px (5 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, aperture angle 31°
- Laser class 1, LED class Risk group 1 (low risk)
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 30 Hz at 5 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: Multiple M12 connectors (17-pin male, 5-pin female, 4-pin D-coded, 8-pin X-coded)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, color anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and related standards
- MTBF: 100,000 hours
- Interfaces: Ethernet (TCP/IP), EtherNet/IP™, PROFINET, CAN, Serial (RS-232), USB 2.0
- Data transmission rates: Up to 1,000 Mbit/s Ethernet, 10/100 Mbit/s for other protocols
- Digital inputs: 2 insulated inputs, configurable digital I/O available
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD (not included)
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- 5 Megapixel resolution (2464 px x 2048 px)
- Integrated white LED illumination with 32 LEDs
- Risk group 1 low risk LED and laser classes
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Reads 1D, 2D, and stacked codes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple industrial interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN, Serial, USB
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Wide operating temperature range 0 °C to +50 °C
- Complies with electromagnetic compatibility standards IEC 61000-6-2 and IEC 61000-6-4
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial applications requiring high-resolution code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Automated inspection and quality control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to external lighting
- Durable aluminum housing extends product lifespan reducing waste
- Compliant with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8505R-1MEKEXAF2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode and 2D code scanning applications.
