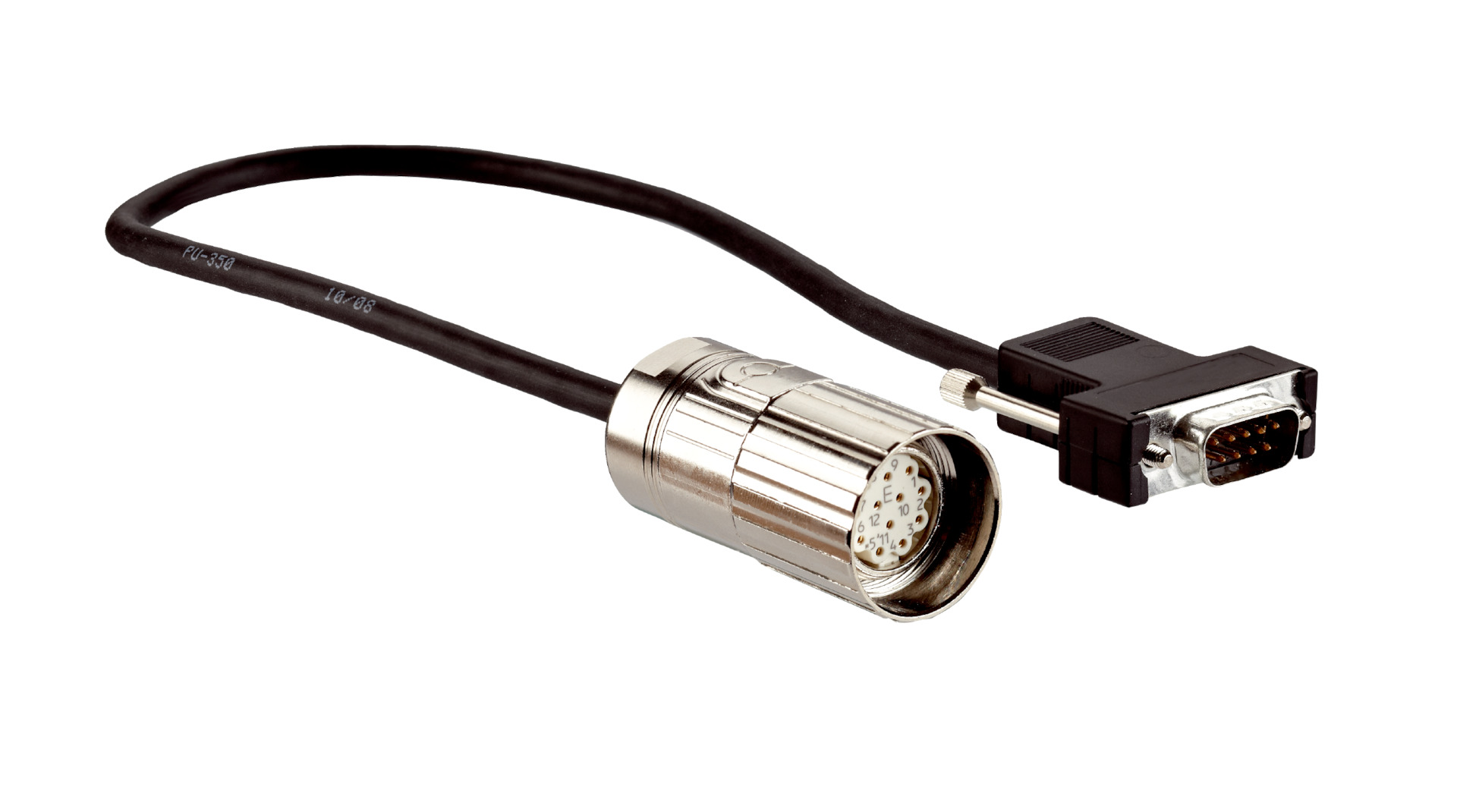

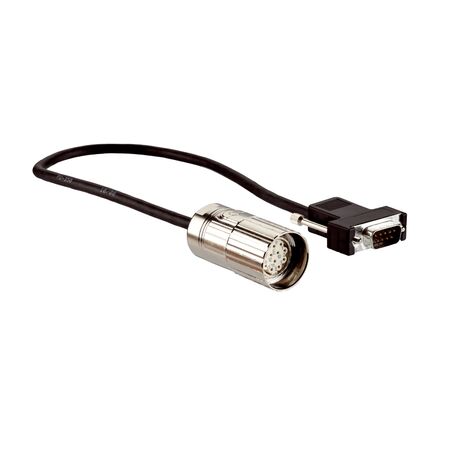

SICK DSL-3D08-G0M5AC2 Programming Adapter Cable | M23 to D-Sub | 0.5m Length | Shielded | by SICK
The SICK DSL-3D08-G0M5AC2 programming adapter cable features a female M23 12-pin connector and a male D-Sub 9-pin connector, making it ideal for programming tool connections in industrial automation. With a 0.5m length and halogen-free PUR cable, it ensures signal integrity and compliance with SSI interfaces, perfect for reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Male connector, D-Sub, 9-pin, straight
- Cable length: 0.5 m
- Cable type: 8-wire, PUR, halogen-free
- Conductor cross section: 4 x 2 x 0.15 mm²
- Shielding: Shielded
- Signal type: SSI
- Operating temperature: -55 °C to +125 °C
- Note: Suitable for SSI interfaces only, not for SSI + Incremental or SSI + Sin/Cos
- Dimensions (H x L x W): 20mm x 500mm x 50mm
- Weight: 0.1 kg
Key Features
- Female connector M23, 12-pin, straight
- Male connector D-Sub, 9-pin, straight
- 0.5 m length, 8-wire PUR halogen-free cable
- Shielded cable for signal integrity
- Suitable for SSI interfaces only
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and signal integrity.
Applications
- Programming tool connection for PGT-10-Pro and PGT-08-S
- Use with SSI interfaces in industrial automation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies.
Available Now
The SICK DSL-3D08-G0M5AC2 programming adapter cable is available for immediate purchase, ideal for industrial automation and programming tool applications.
