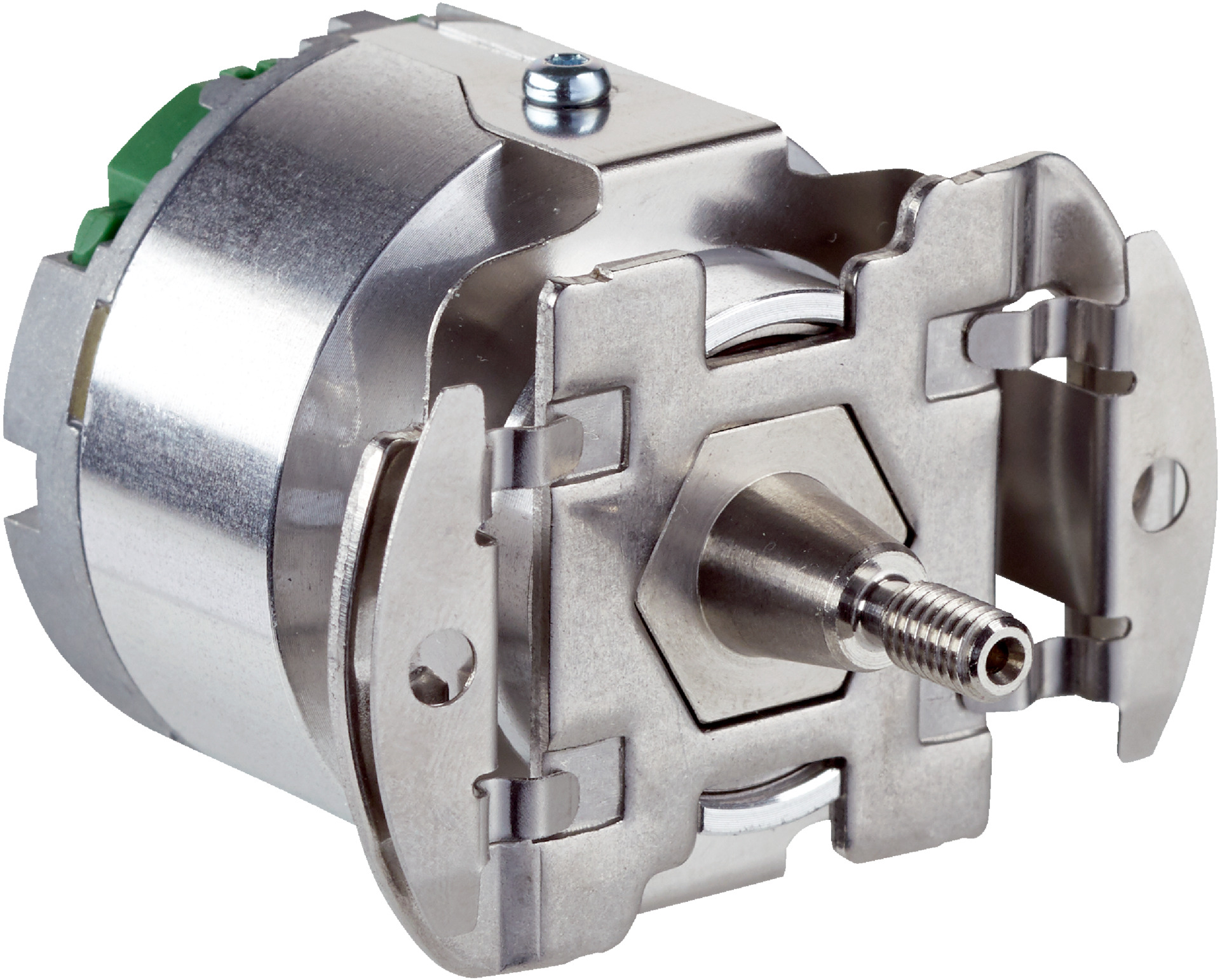

SICK EKS36 Encoder | SIL2 Safety Level | 18 Bit Resolution | Optical Measurement | by SICK
The SICK EKS36 Encoder is designed for industrial automation, featuring a SIL2 safety integrity level and 18-bit resolution for precise position measurement. With an optical measurement principle and an operating speed of up to 12,000 min⁻¹, this encoder is perfect for safety-critical applications. Its robust IP40 enclosure ensures durability in demanding environments, making it an ideal choice for high-speed machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Position resolution per revolution: 18 bit
- System accuracy: ±120″
- Signal noise (σ): ±4″
- Number of absolute ascertainable revolutions: 1
- Available memory area: 8,192 Byte
- Measurement step per revolution: 1,048,576
- Measurement principle: Optical
- Type of code for absolute value: Binary
- Communication interface: HIPERFACE DSL®
- Initialization time: Max. 500 ms
- Connection type: Male connector, 4-pin
- Supply voltage: 7 V to 12 V, recommended 8 V
- Current consumption: ≤ 150 mA
- Output frequency for digital position value: 0 kHz to 75 kHz
- Shaft version: Tapered shaft
- Operating speed: ≤ 12,000 min⁻¹
- Operating temperature range: –20 °C to +115 °C
- Enclosure rating: IP40 with mating plugs inserted and cover closed
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Customized stator coupling for specialized applications
- Safety integrity level SIL2 (IEC 61508) and SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- Optical measurement principle with 18 bit resolution per revolution
- System accuracy ±120″ and signal noise ±4″
- Communication via HIPERFACE DSL® interface
- Operating temperature range from –20 °C to +115 °C
- Operating speed up to 12,000 min⁻¹ with low operating torque
- IP40 enclosure rating with mating plugs inserted and cover closed
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and HIPERFACE DSL® interfaces to ensure compliance with safety standards.
Applications
- Industrial automation requiring precise position measurement
- Safety-related applications with SIL2 and PL d performance levels
- High-speed machinery with operating speeds up to 12,000 min⁻¹
- Environments requiring robust optical encoders with IP40 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with supply voltage between 7 V and 12 V
- Robust design minimizes environmental impact through durability
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

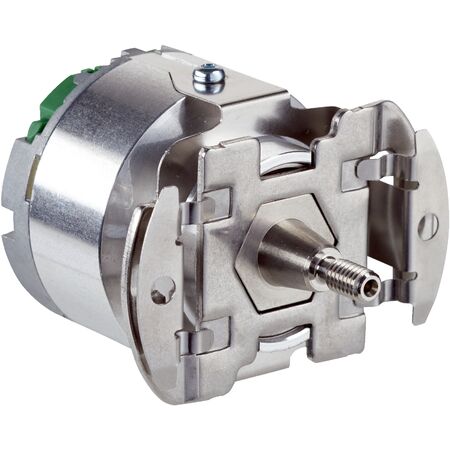

The SICK EKS36-2KF0B0S01 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
