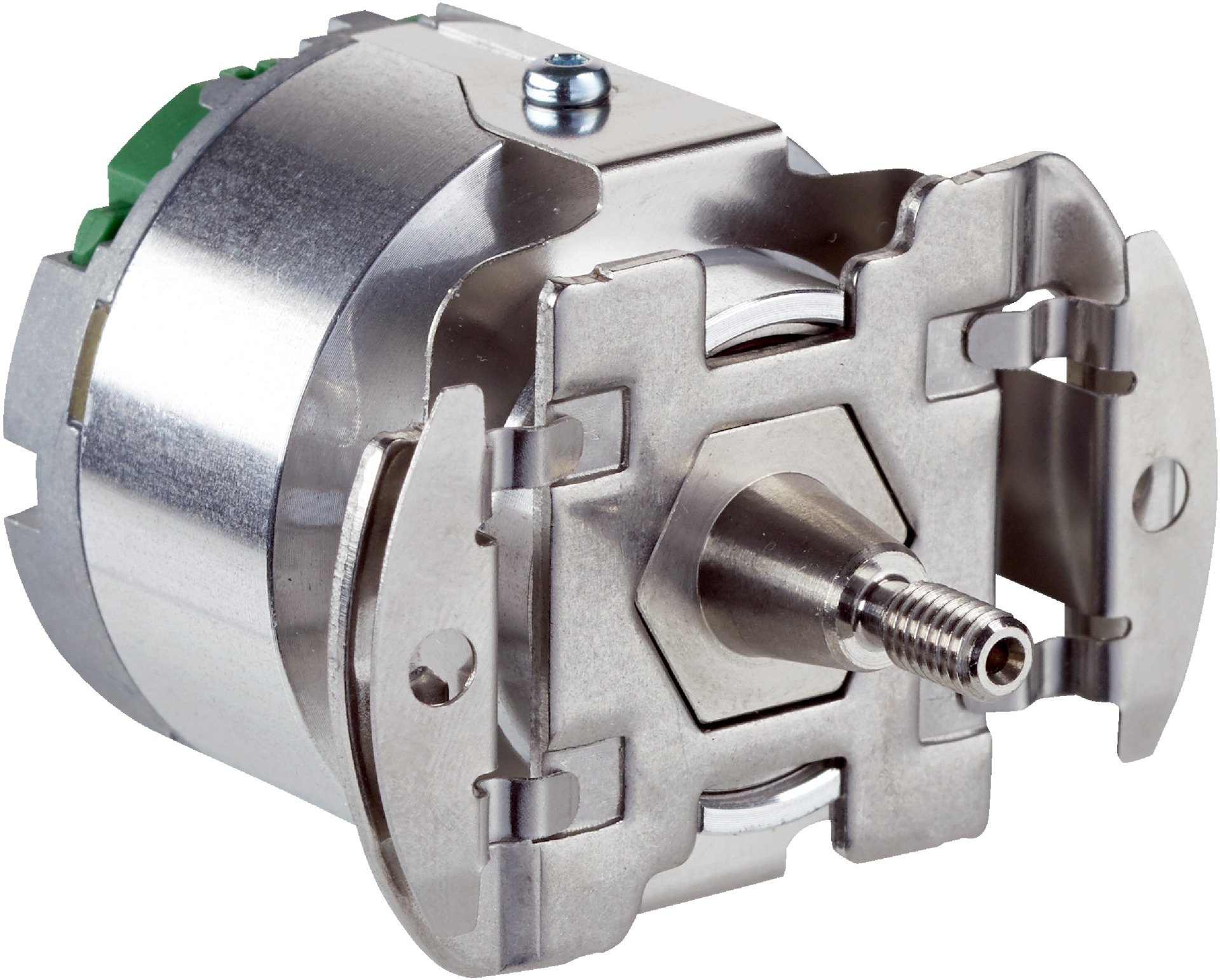

SICK EKS36 Optical Encoder | SIL2 Certified | 18 Bit Resolution | IP40 Enclosure | by SICK
The SICK EKS36 Optical Encoder delivers high precision with an 18-bit resolution per revolution, making it ideal for industrial automation and safety-critical applications. With SIL2 certification and an operating temperature range of -20 °C to +115 °C, this encoder ensures reliable performance in demanding environments. Its robust design and optical measurement principle provide exceptional accuracy and durability, perfect for robotics and manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level PL d
- Position resolution: 18 bit per revolution
- System accuracy: ±120″
- Signal noise: ±5″
- Available memory area: 8,192 Byte
- Measurement step per revolution: 262,144
- Measurement principle: Optical
- Type of code: Binary
- Communication interface: HIPERFACE DSL®
- Initialization time: Max. 500 ms
- Connection type: Male connector, 4-pin
- Supply voltage: 7 V to 12 V (recommended 8 V)
- Current consumption: ≤ 150 mA
- Output frequency: 0 kHz to 75 kHz
- Shaft version: Tapered shaft
- Operating speed: ≤ 12,000 min⁻¹
- Operating temperature range: –20 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2, EN 61000-6-4, IEC 61326-3
- Enclosure rating: IP40
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- High impedance capacitive connection between encoder housing and encoder GND
- Possibility to connect cable shield to housing potential on PIN4 of DSL connector
- Safe increment SIL2 (IEC 61508), SILCL2 (EN 62061) certified
- Category 3 (EN ISO 13849) with Performance Level PL d
- Optical measurement principle with 18 bit resolution per revolution
- System accuracy ±120″ and signal noise ±5″
- Communication interface HIPERFACE DSL®
- Operating temperature range from –20 °C to +115 °C
- Enclosure rating IP40 with mating plugs inserted and cover closed
- Operating speed up to 12,000 min⁻¹
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with SIL2 standards.
Applications
- Industrial automation and control systems
- Safety-related motion control requiring SIL2 and PL d compliance
- High precision position measurement in machinery
- Robotics and manufacturing equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

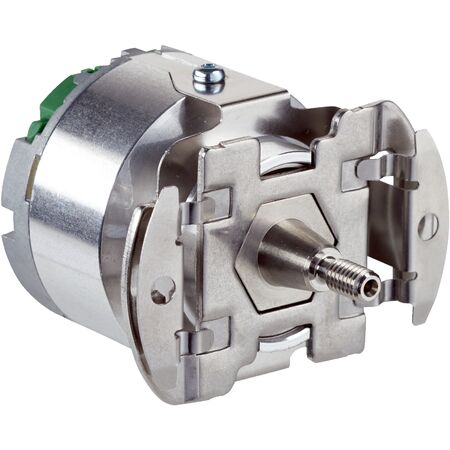

The SICK EKS36-2KF0A0S13 optical encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and SIL2 compliance.
