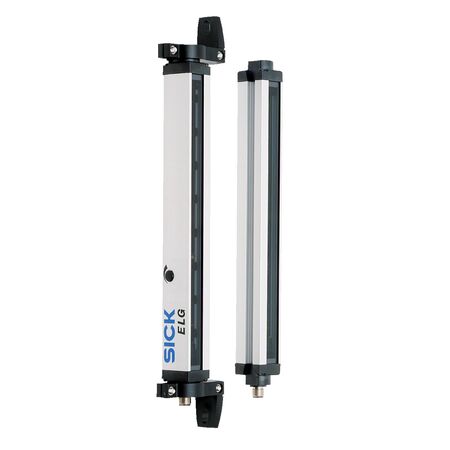

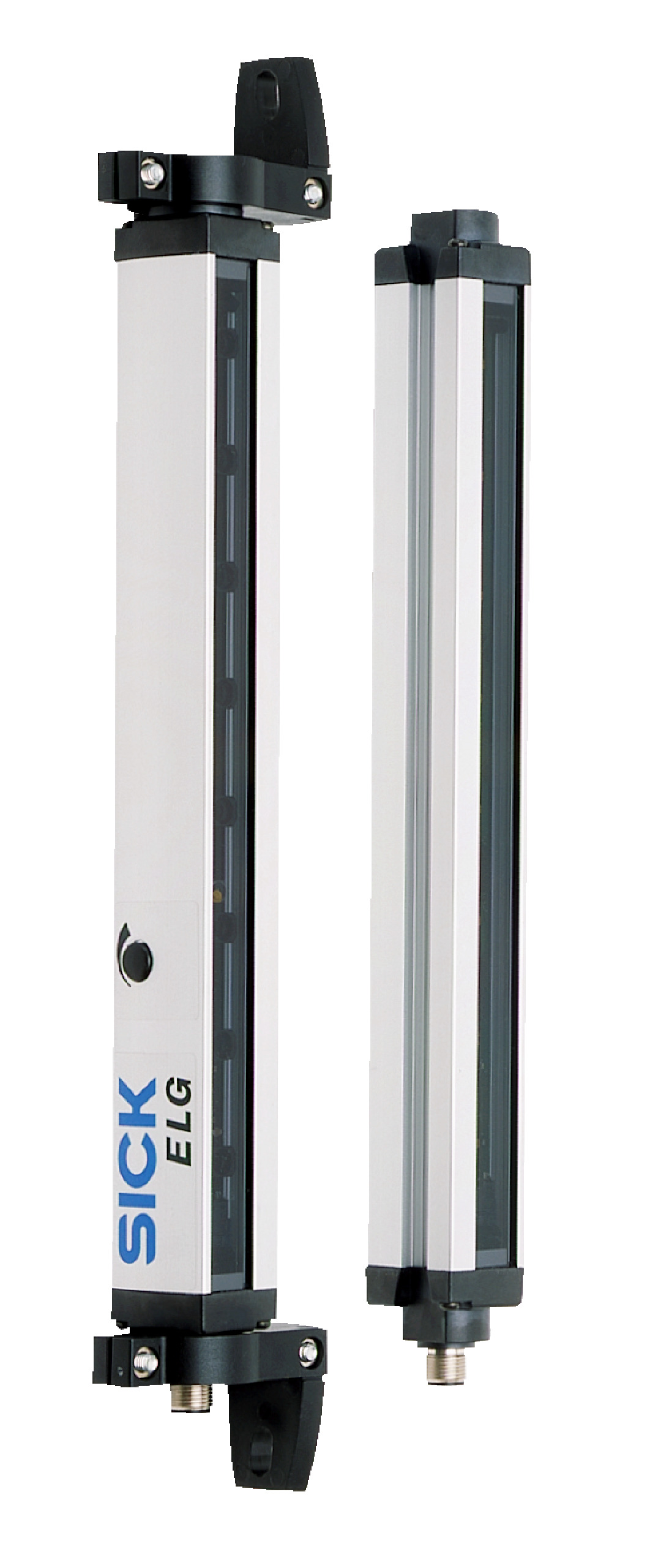

SICK ELG3-0090P511 Optical Sensor | 4 Parallel Beams | IP65 Rated | by SICK
The SICK ELG3-0090P511 Optical Sensor features a sender/receiver principle with 4 parallel beams, ensuring precise object detection with a minimum detectable size of 35 mm. Designed for industrial automation and safety monitoring, this robust sensor operates within -25°C to +55°C, making it ideal for various manufacturing applications. With its IP65 enclosure rating and LED indication, it guarantees reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK ELG3-0090P511 Optical Sensor | 4 Parallel Beams | IP65 Rated | by SICK
Brand: SICK
SKU: 1024290
Alternatively Known As: SICK ELG3 0090P511 Optical Sensor, SICK ELG3 Beam Sensor, SICK ELG3 Safety Sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 4
- Detection height: 90 mm
- Evaluation beams: Parallel beam
- Wavelength: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 100 mA
- Power consumption receiver: < 100 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 0 m
- Minimum range: ≥ 0 mm
- Operating range: 2 m
- Response time: 28 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 166mm x 29mm x 34mm
- Weight: 0.7 kg
Key Features
- Sender/receiver sensor principle with 4 parallel beams
- Minimum detectable object size of 35 mm
- Detection height of 90 mm with 30 mm beam separation
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 100 mA per sender and receiver
- Durable aluminum housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ELG3-0090P511 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
