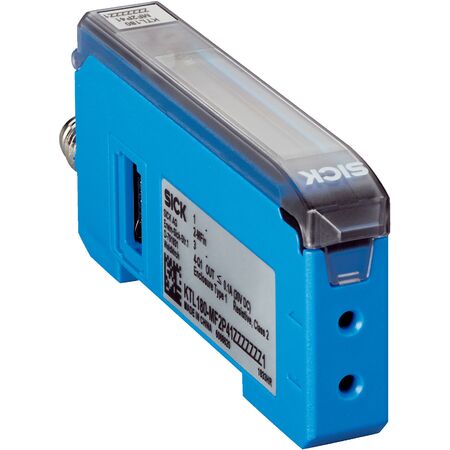

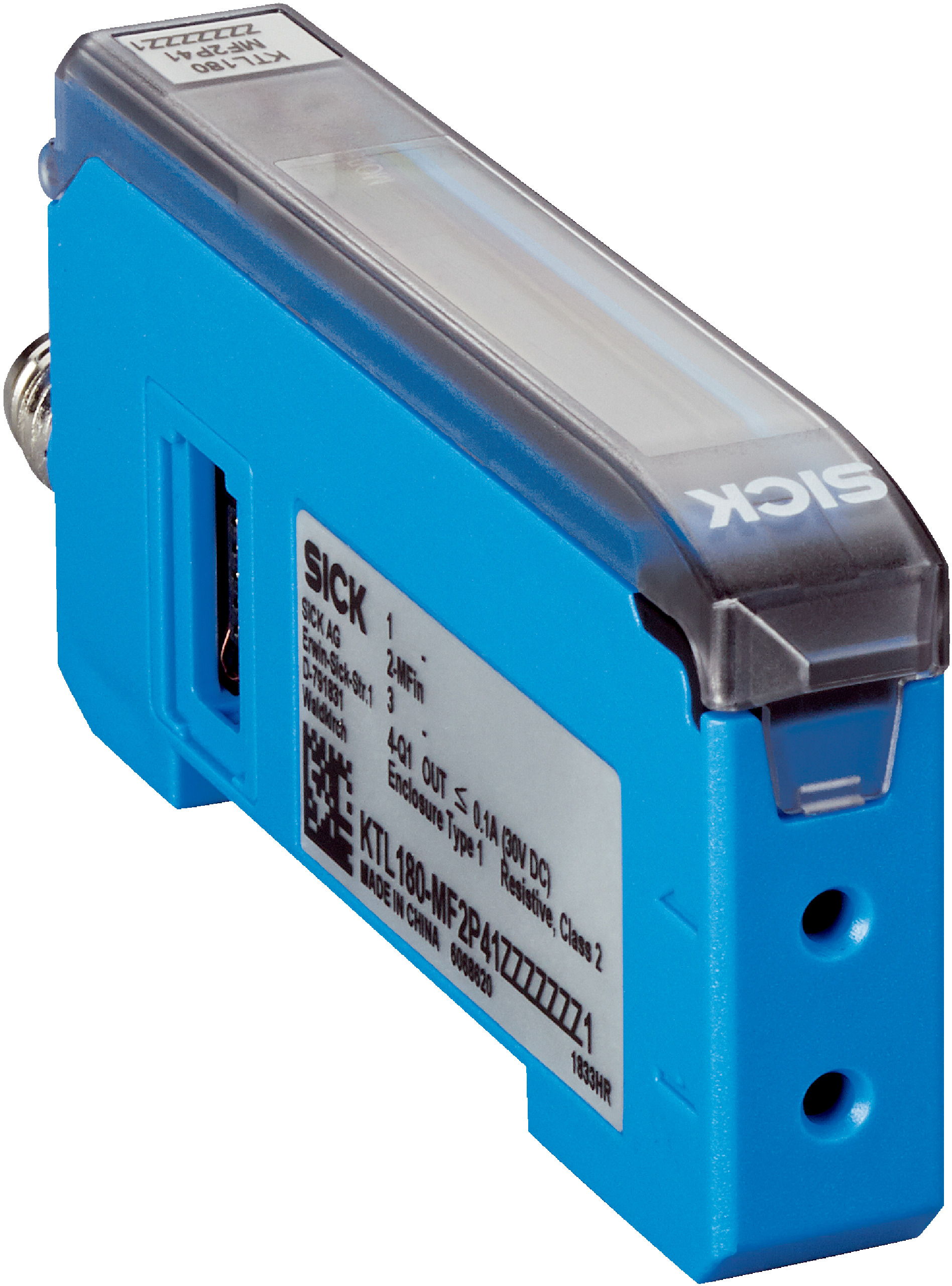

SICK Expansion Unit KTL180 | LED Status Display | Proximity Sensing Up to 30mm | IP50 Rated | by SICK
The SICK Expansion Unit KTL180 is designed for industrial automation systems, featuring an LED status display and a sensing range of up to 30 mm. Ideal for fiber-optic sensing applications, this unit offers multiple teach-in modes and robust protection against electrical faults, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Expansion unit
- Display: LED status display with 2x 4-character digital dual displays
- Sensing range: 0 mm to 30 mm
- Sensing distance: ≤ 30 mm
- Light source: White LED
- Angle of dispersion: Approx. 65°
- Wave length: 400 nm to 750 nm
- Teach-in mode: 1-point, 2-point, dynamic
- Delay time: Adjustable
- Supply voltage: 12 V DC to 24 V DC
- Ripple: ≤ 10%
- Current consumption: ≥ 50 mA at 24 V
- Switching frequency: 31.2 kHz
- Response time: 16 µs
- Jitter: 8 µs
- Switching output: PNP, max 100 mA
- Switching mode: Light/dark switching
- Retention time: 25 ms, non-volatile memory
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, overcurrent, interference pulse suppression
- Housing material: VISTAL®
- Connection type: Male connector M8, 4-pin
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP50
- Dimensions (H x L x W): 33.2mm x 71.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- LED status display with dual 4-character digital displays showing set and actual values simultaneously
- Sensing range up to 30 mm with proximity system
- Housing designed for fiber-optic applications
- White LED light source with approx. 65° angle of dispersion
- Multiple teach-in modes including 1-point, 2-point, and dynamic teach-in
- Adjustable delay time and multi-function input
- Supply voltage range from 12 V DC to 24 V DC with ripple ≤ 10%
- Switching frequency of 31.2 kHz and response time of 16 µs
- PNP switching output with max output current of 100 mA
- Protection class III with reverse polarity, short-circuit, and overcurrent protection
- Non-volatile memory with 25 ms retention time
- Operating temperature range from -25 °C to +55 °C
- Enclosure rating IP50
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial automation equipment and electrical safety standards.
Applications
- Industrial automation systems requiring expansion units
- Fiber-optic sensing applications
- Systems needing precise proximity sensing up to 30 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED indicators
- Durable housing material VISTAL® for long product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTL180-MF2P41ZZZZZ Expansion Unit is available for immediate purchase, ideal for industrial automation and fiber-optic sensing applications.
